TX140 S1 Upgrade and Maintenance Manual 381
Front panel and external connectors

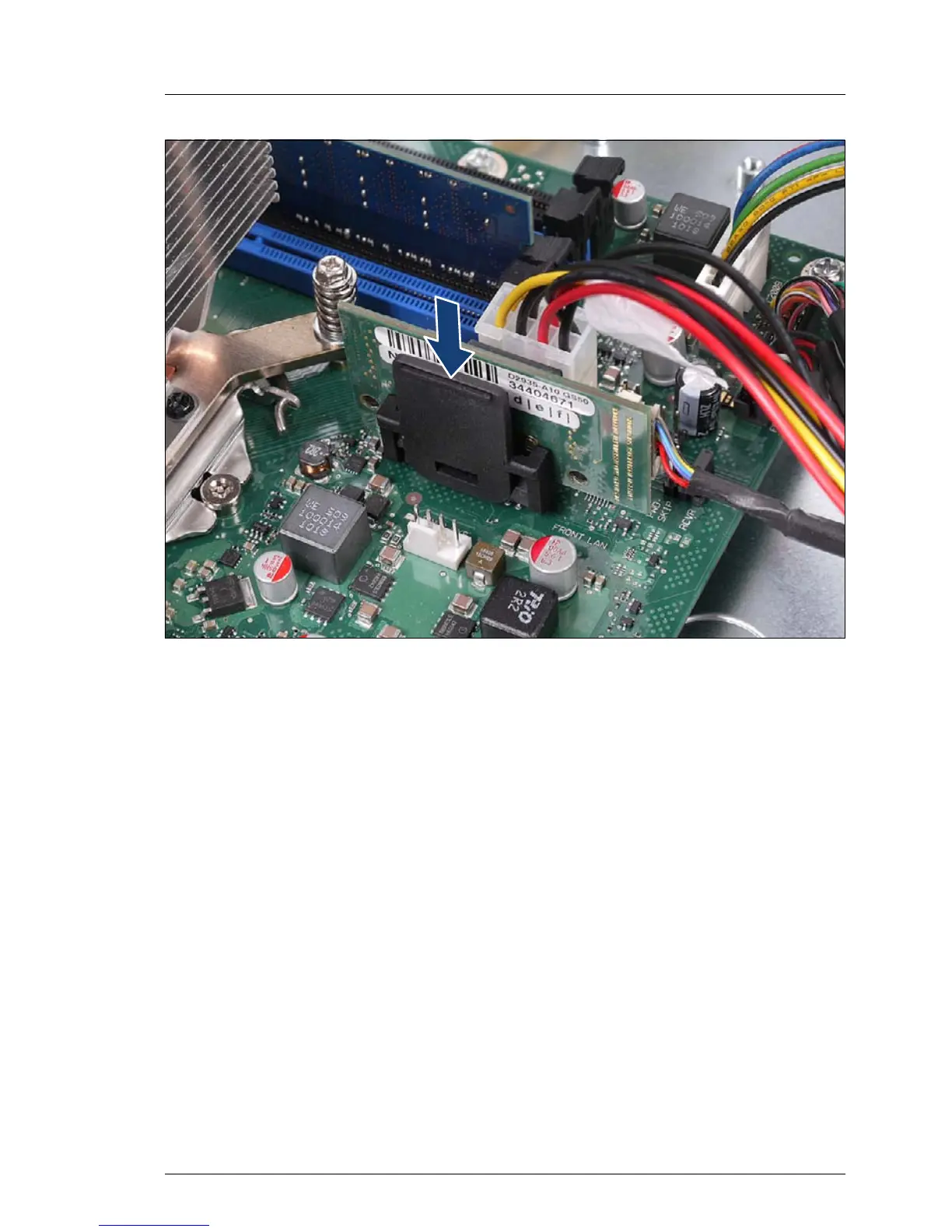

Figure 232: Connecting the front LAN board to the system board
Ê Connect the front LAN board to system board connector FRONT LAN.
I Ensure that the front LAN board holder snaps in place.
