TX140 S1
Upgrade and Maintenance Manual
387
Front panel and ext
ernal conn
ectors
Ê
Press in on the locking latches on the front p
anel cover (1) to disengage the
locking mec
hanism.
Ê
Pull off the front p
anel cover (2).
Figure 237: Removing the front p
anel cover (B)
Ê

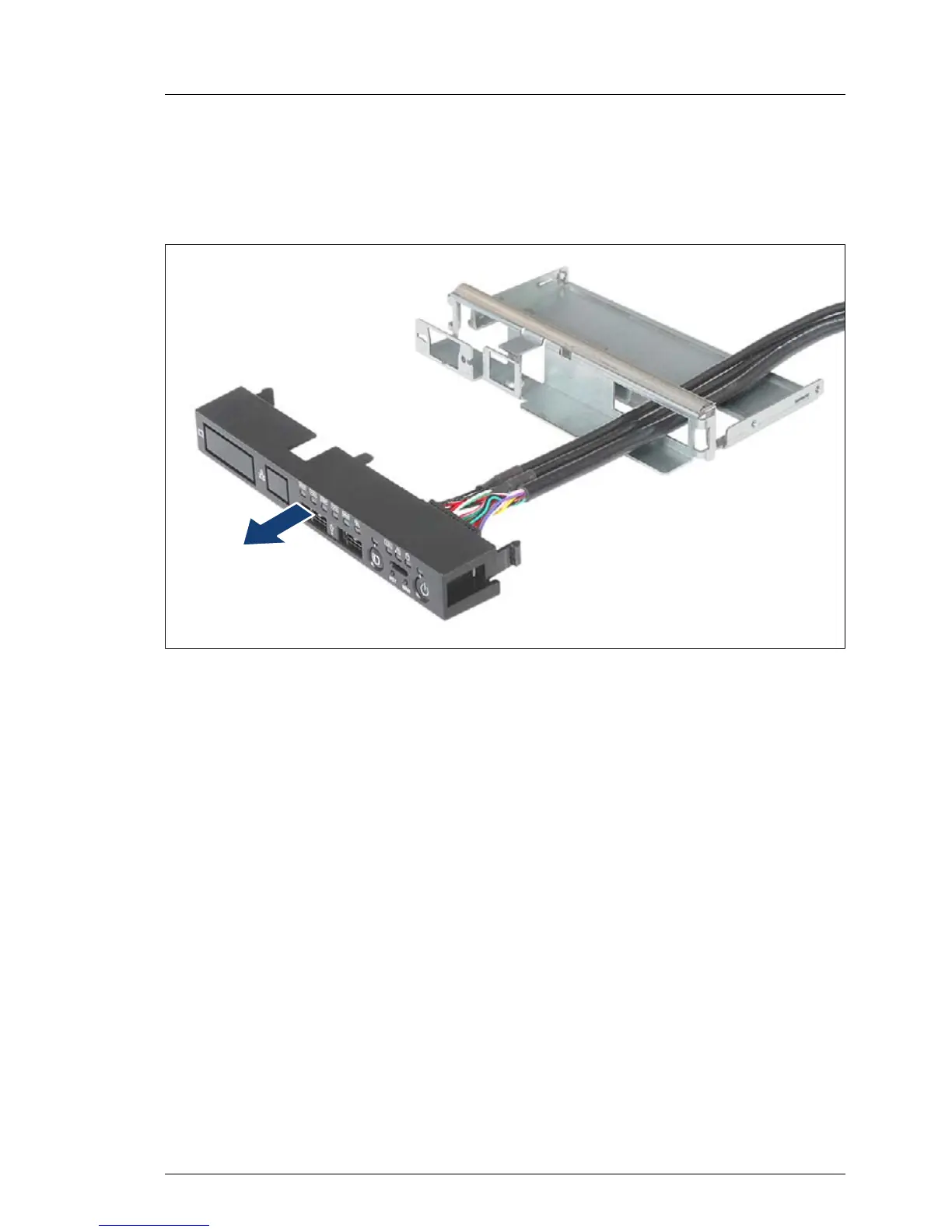

Remove the front panel cover from the front p
anel frame.
386
388
