TX140 S1 Upgrade and Maintenance Manual 433
System board and components
Ê Remove the nylon screw from the new UFM board (1).
Ê Remove the UFM spacer (2).
Figure 277: Installing the UFM board (A)

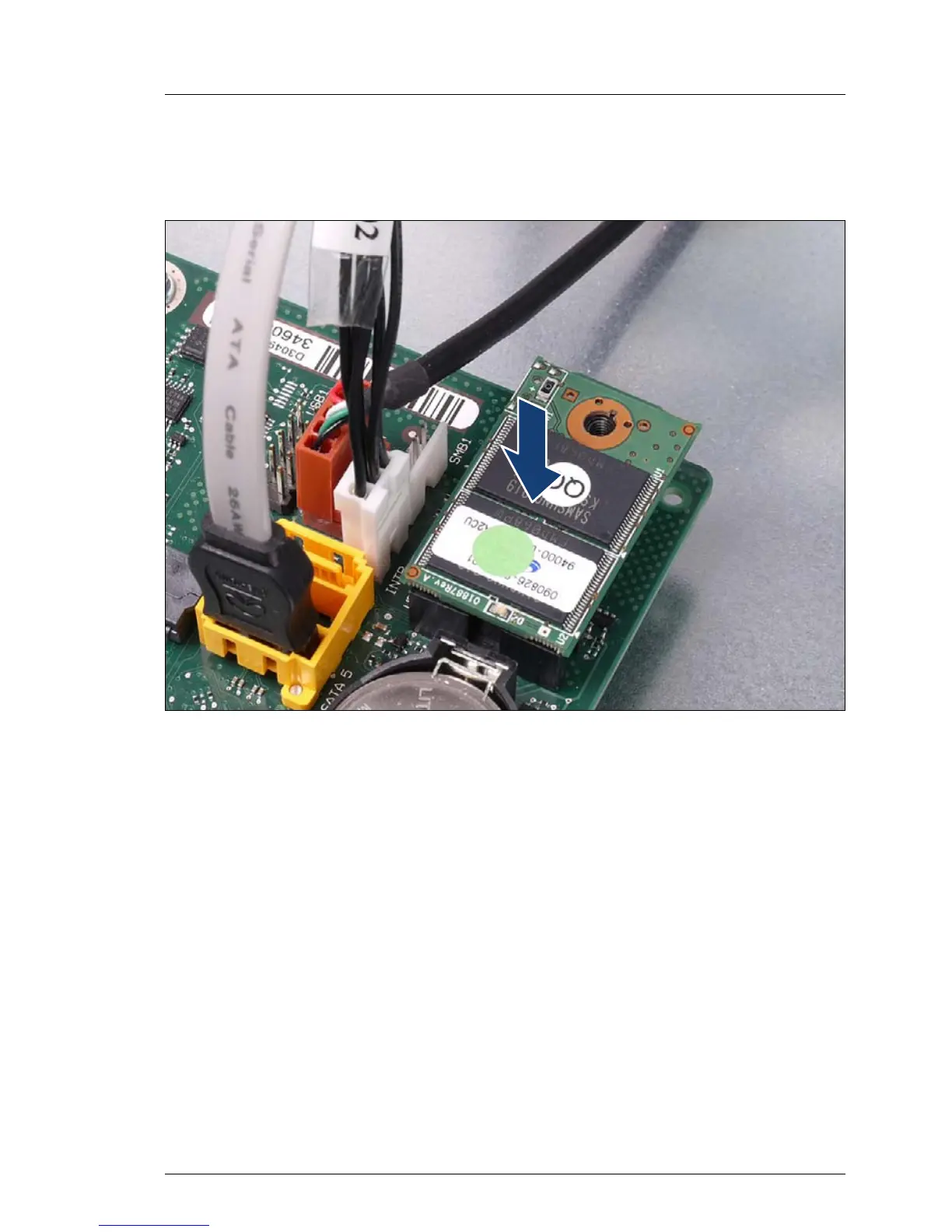

Ê Fit the new UFM board on the UFM connector and the remaining UFM
spacer.
