458 Upgrade and Maintenance Manual TX140 S1
System board and components

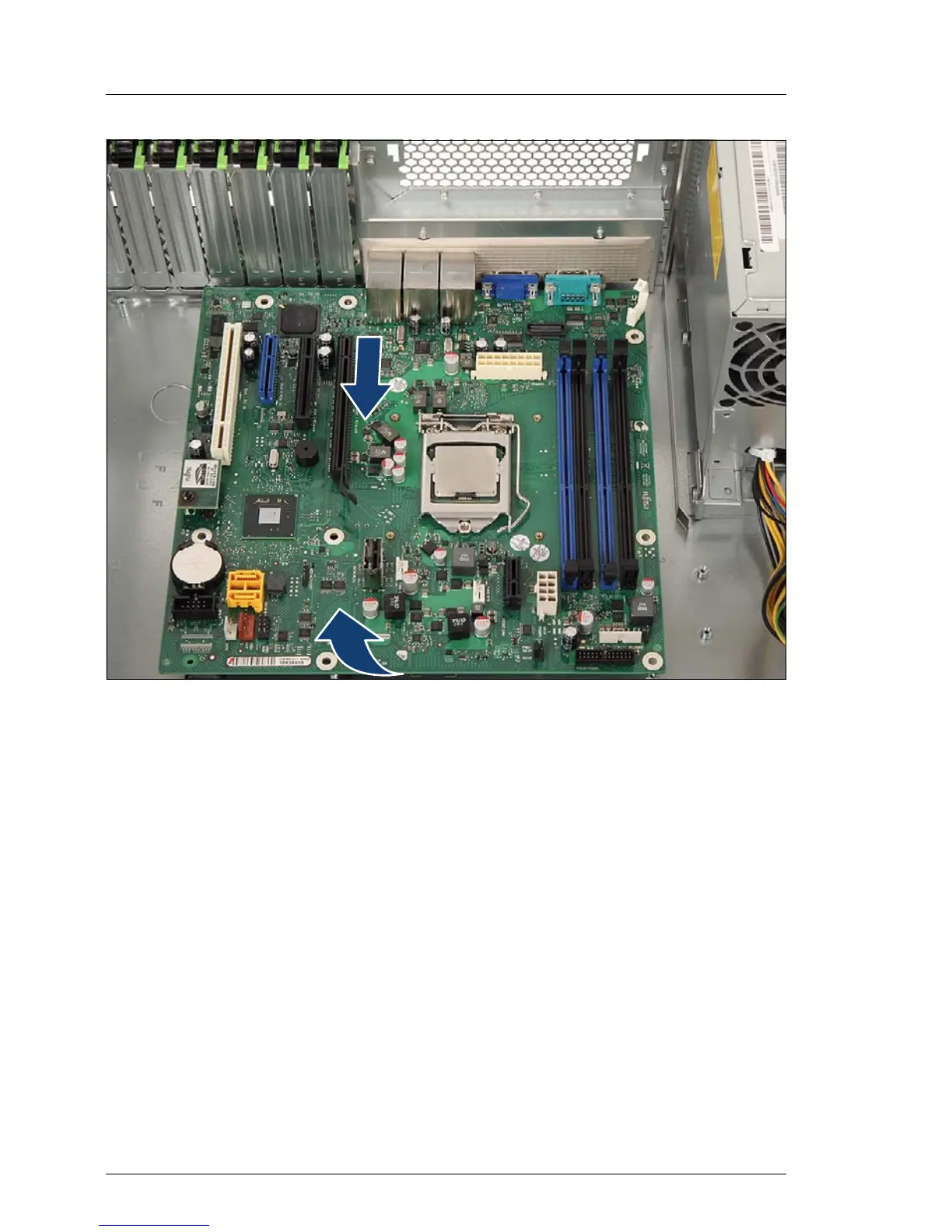

Figure 292: Removing the system board
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
Ê If applicable, remove the TPM board as described in section "Removing the
TPM board" on page 446.
