462 Upgrade and Maintenance Manual TX140 S1
System board and components

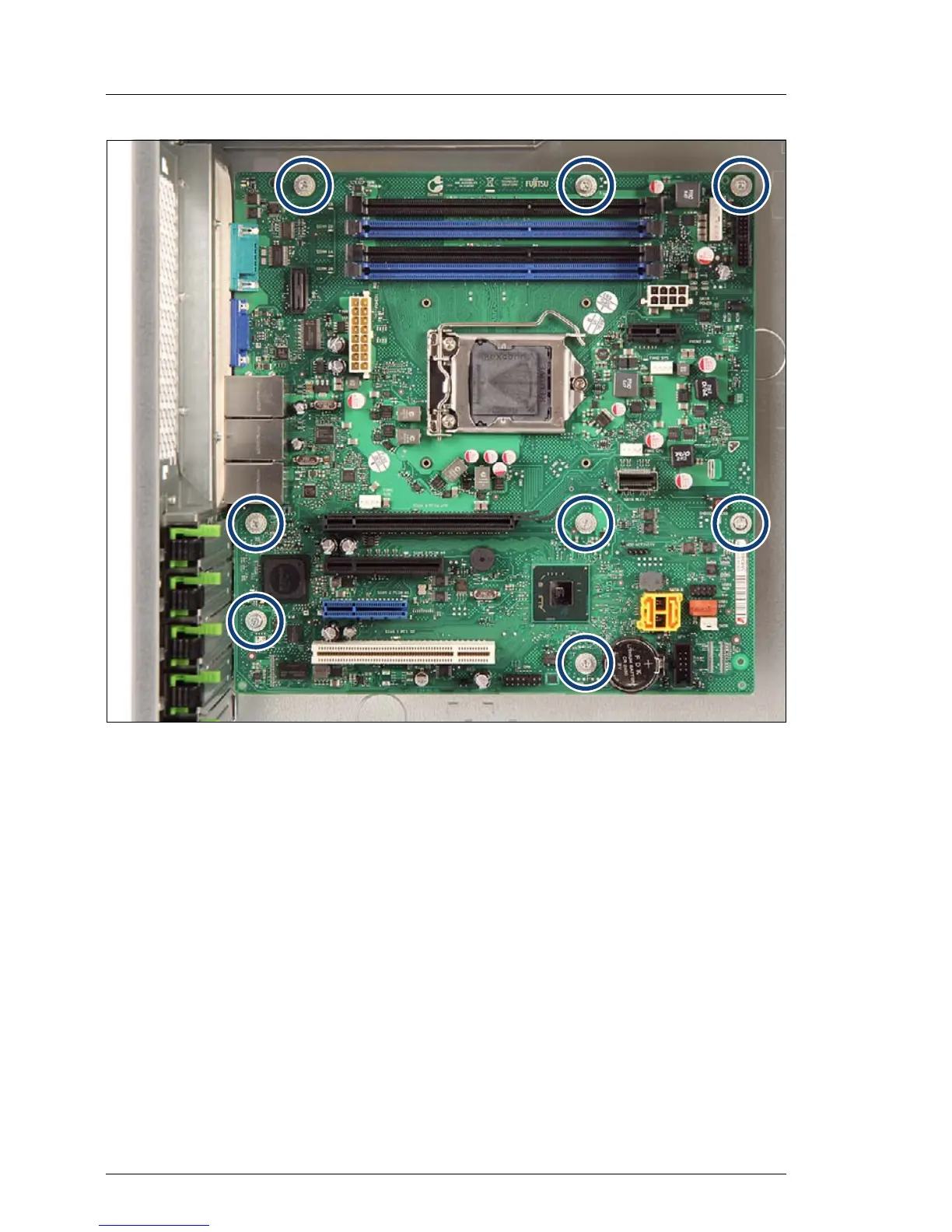

Figure 296: Securing the system board
Ê Secure the system board with eight screws (M3 x 6 mm, C26192-Y10-C68)
(see circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
