468 Upgrade and Maintenance Manual TX140 S1
System board and components

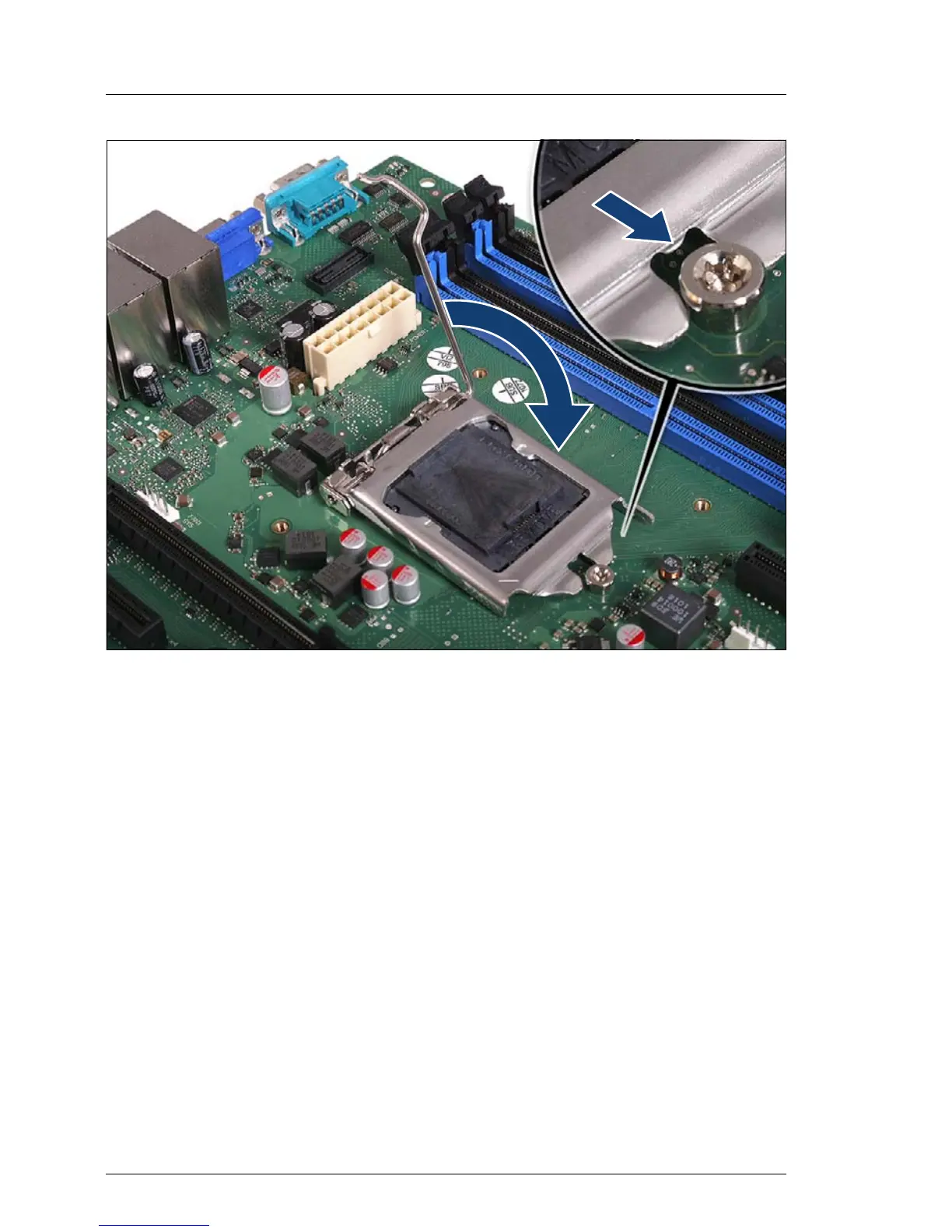

Figure 302: Installing the protective socket cover (defective system board) (B)
Ê Lower the load plate over the processor while leaving the socket lever in the
open position.
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
