TX140 S1 Upgrade and Maintenance Manual 505
Cabling

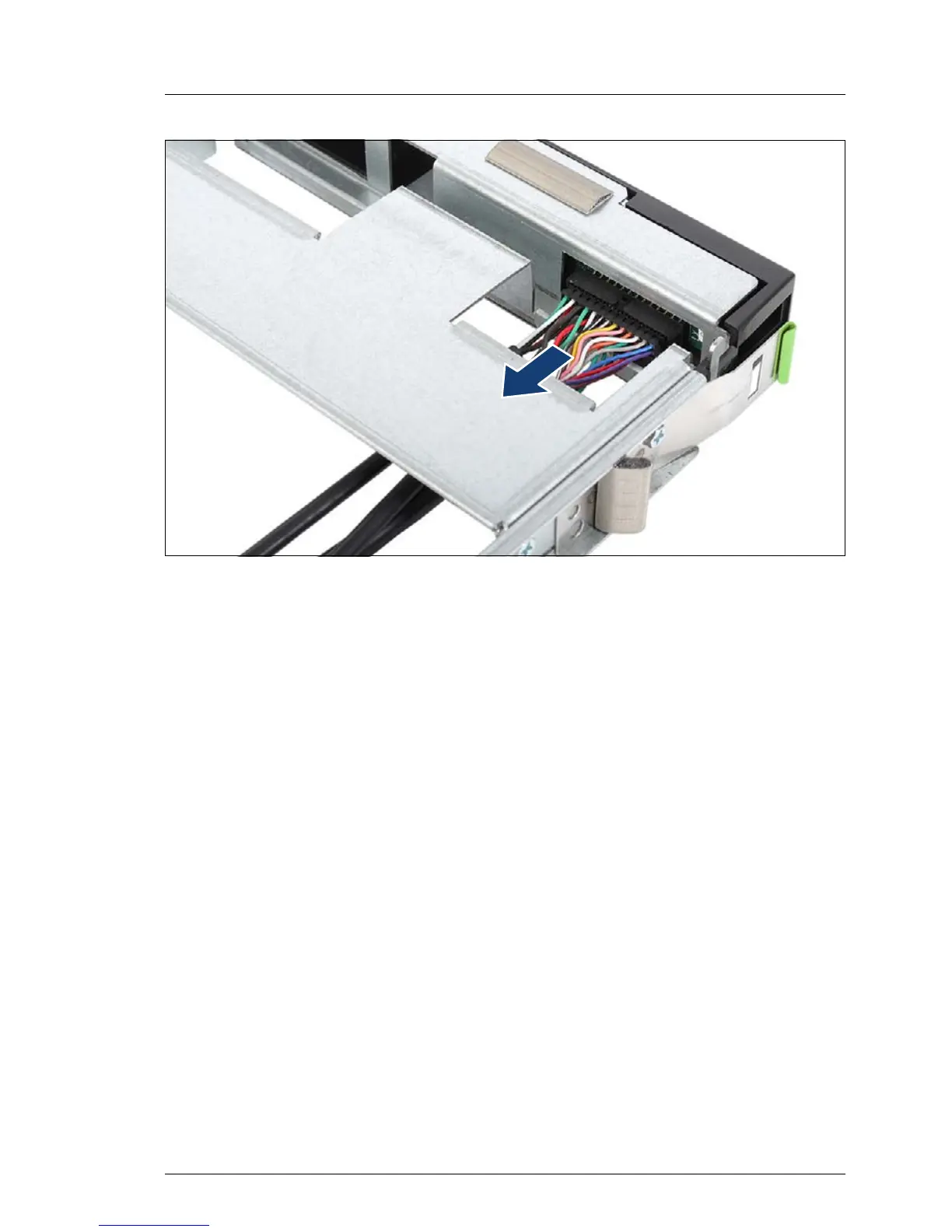

Figure 336: Removing the front panel cable
Ê Remove the front panel cable from the defective front panel module as
shown.
Ê If the front LAN connector has been installed in the defective front panel
module, remove the cable as described in section "Removing the front LAN
connector" on page 399.
