508 Upgrade and Maintenance Manual TX140 S1
Cabling

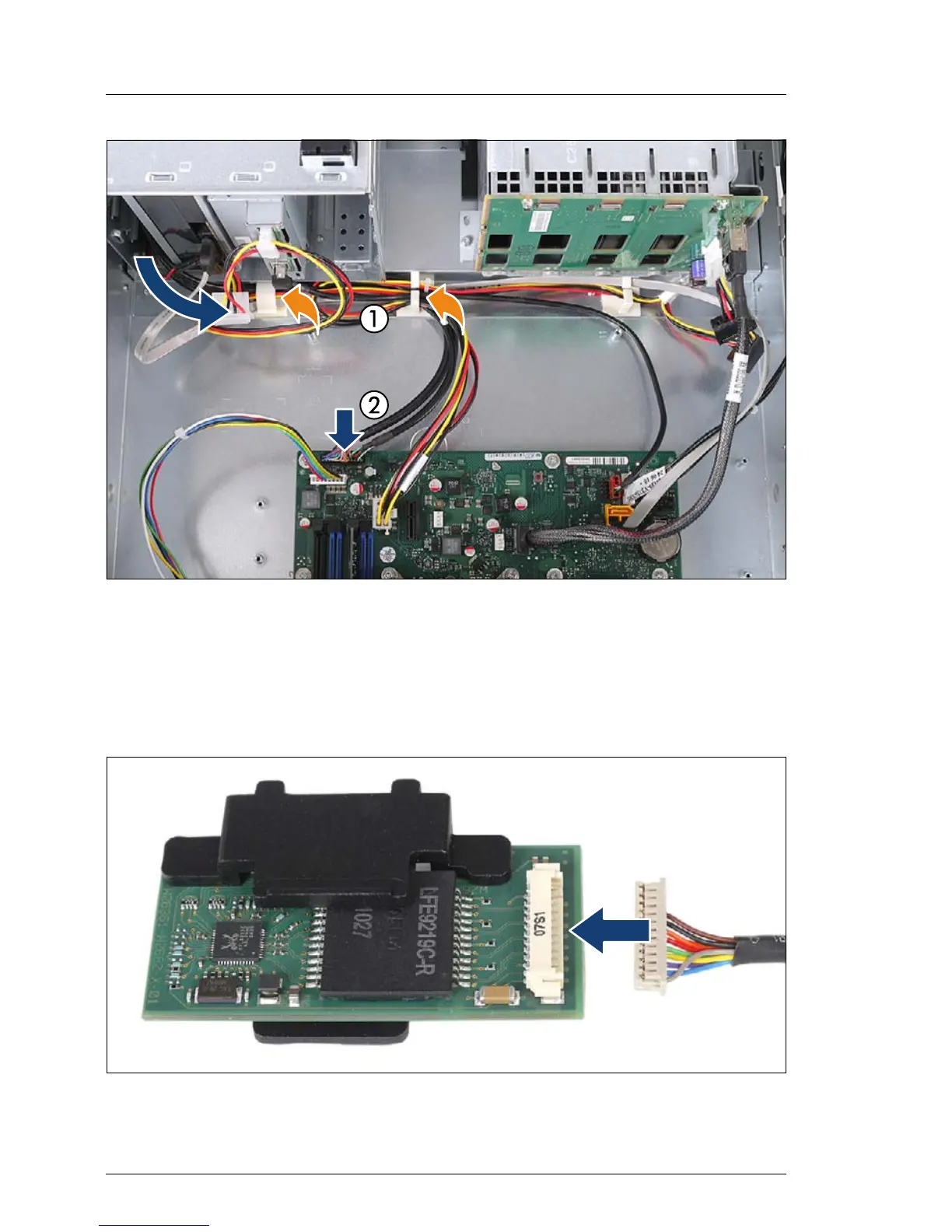

Figure 339: Connecting front panel cables
Ê Run the front panel cable through the cable clamps (see orange arrows) as
shown (1).
Ê Connect the front panel cable T26139-Y4015-V1 to system board connector
FRONTPANEL (2).
Figure 340: Connecting the front LAN cable to the front LAN board
Ê If applicable, connect the front LAN cable to the front LAN board.
