TX140 S1
Upgrade and Maintenance Manual
549
Cabling

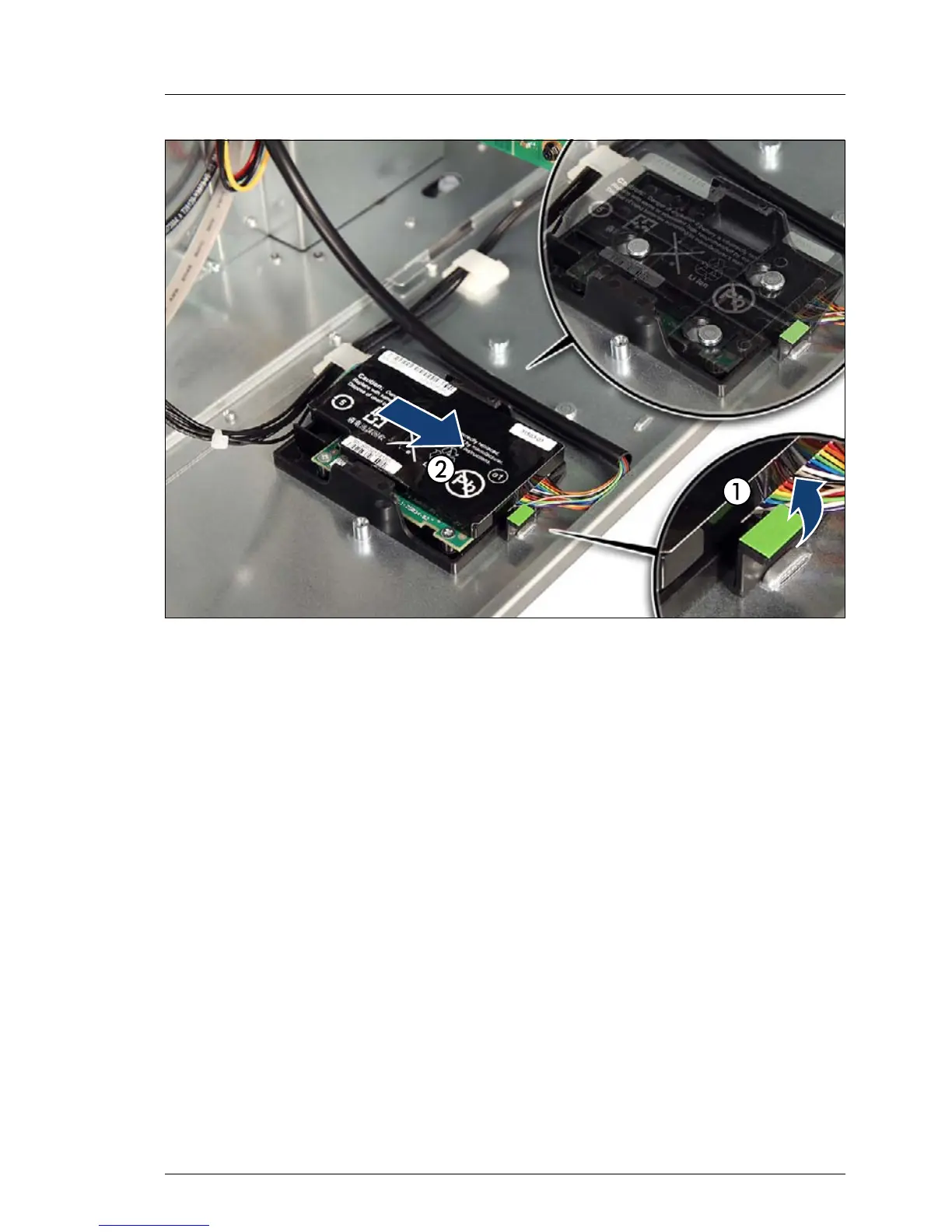

Figure 377: Re
moving the
BBU h
older from th
e chassis
(A)
Ê
Lift up the
green locking handle on the
BBU holder (1) while sliding
the BBU
holder to the right as far as it will go (2).
I
After that, the fi
xation bolts
on the chassis floor will res
t in the wide
ends of the keyhole slots on th
e holder
.
548
550
