TX140 S1
Upgrade and Maintenance Manual
563
Cabling

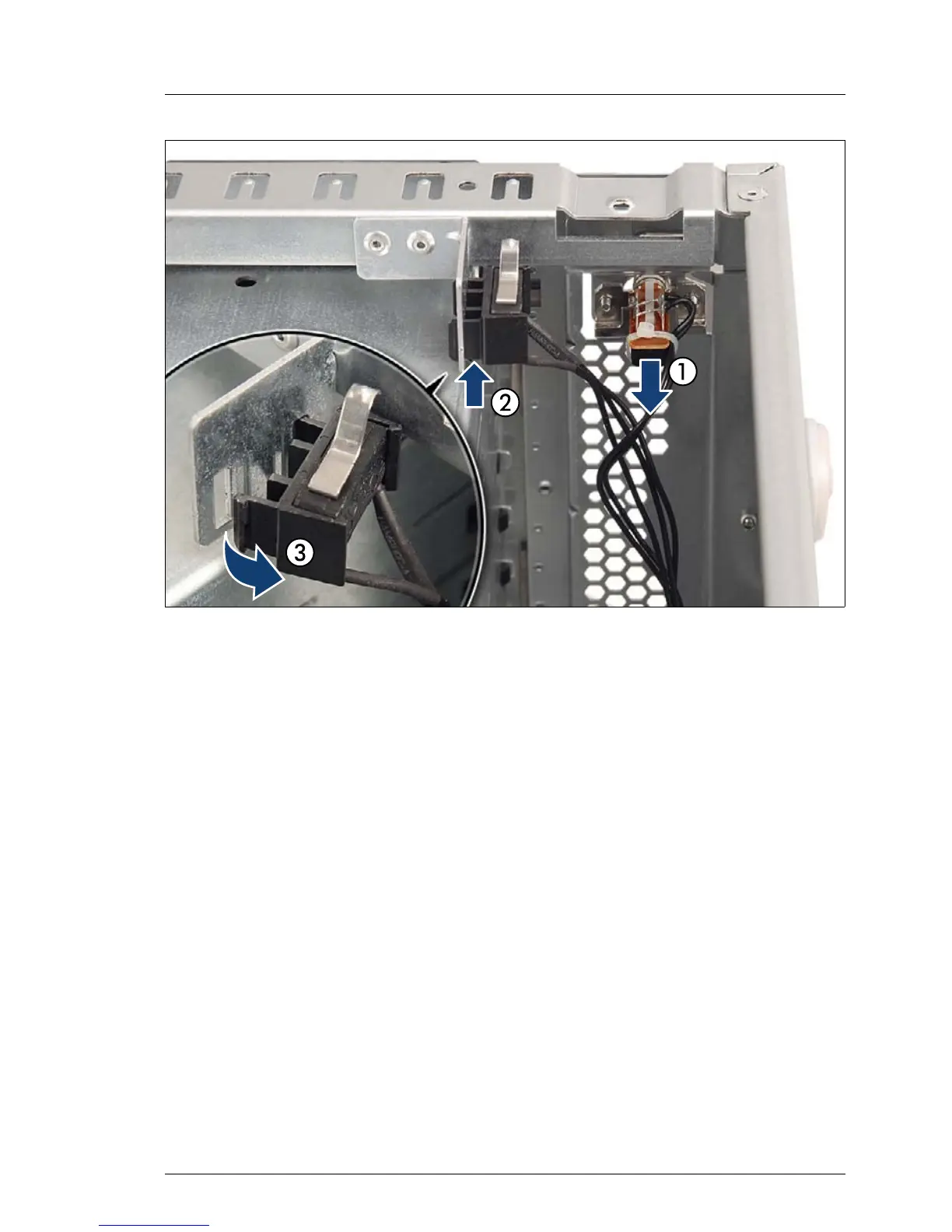

Figure 392: Re
moving the side
and front int
rusion switches
Ê
Pull the front intrusion switch from it
s mounting location (1).
Ê
Press in on the left mounti
ng hook on the side
/
top intrusion switch (2).
Ê
Fold and remove the side
/
top intrusion (3).
Ê
Remove the intrusion switch cable from its
cable clamps.
