TX140 S1
Upgrade and Maintenance Manual
565
Cabling

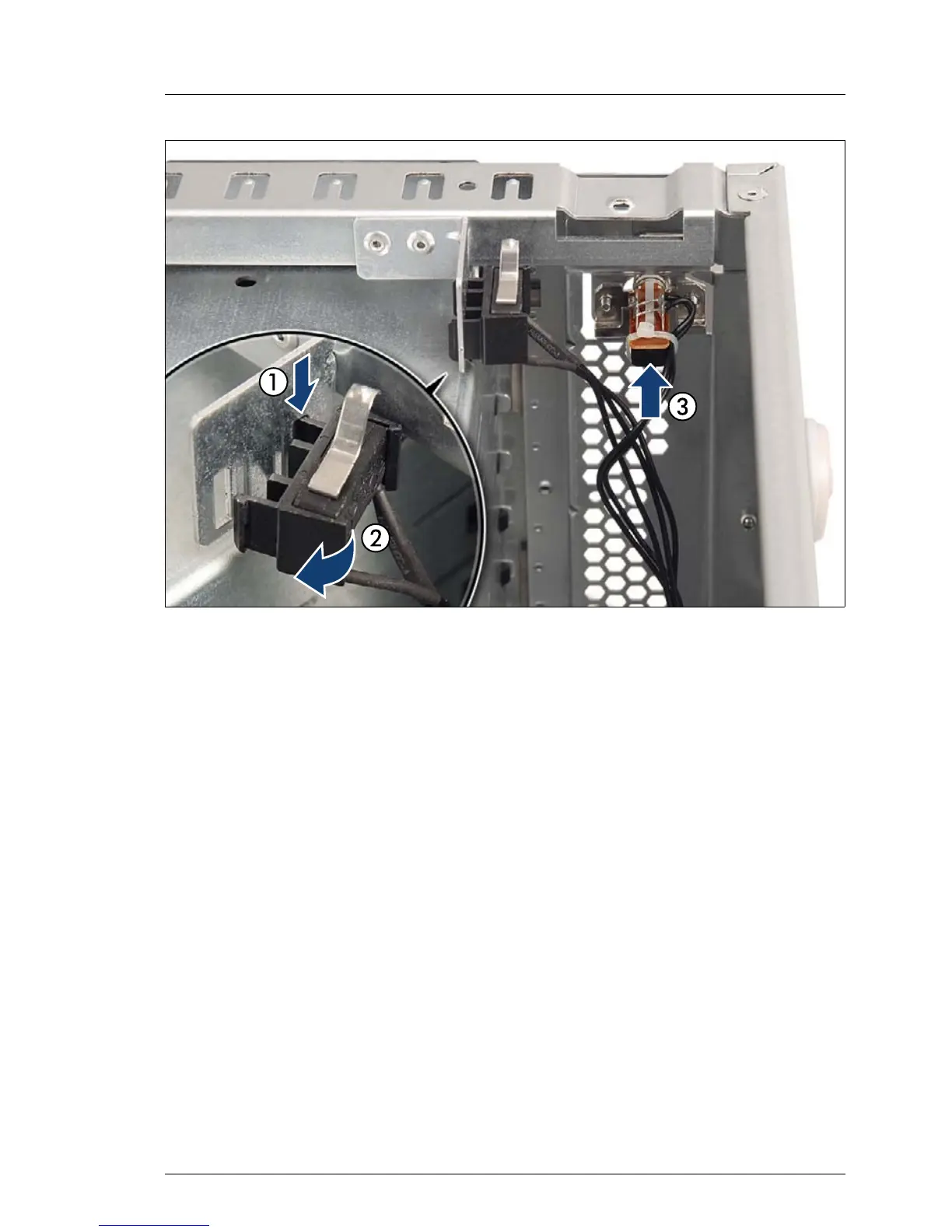

Figure 395: Installing the side
intrusion sw
itch
Ê
Hinge the right mounting hook on the side
/
top i
ntrusion switch in the
intrusion sw
itch holder (1).
Ê
Fold in the side
/
top intrusion until it locks i
n place (2).
Ê
Insert the front intrusion switch into it
s
mounting location (3).
564
566
