88 Upgrade and Maintenance Manual TX140 S1
Basic hardware procedures
Ê If required, install the rack mounting bracket and rack system into the rack
as described in the "Rack Mounting Kit - RMK-F2 Drop-In" Mounting
Instructions.
I The printed poster is contained in the rack mounting kit.

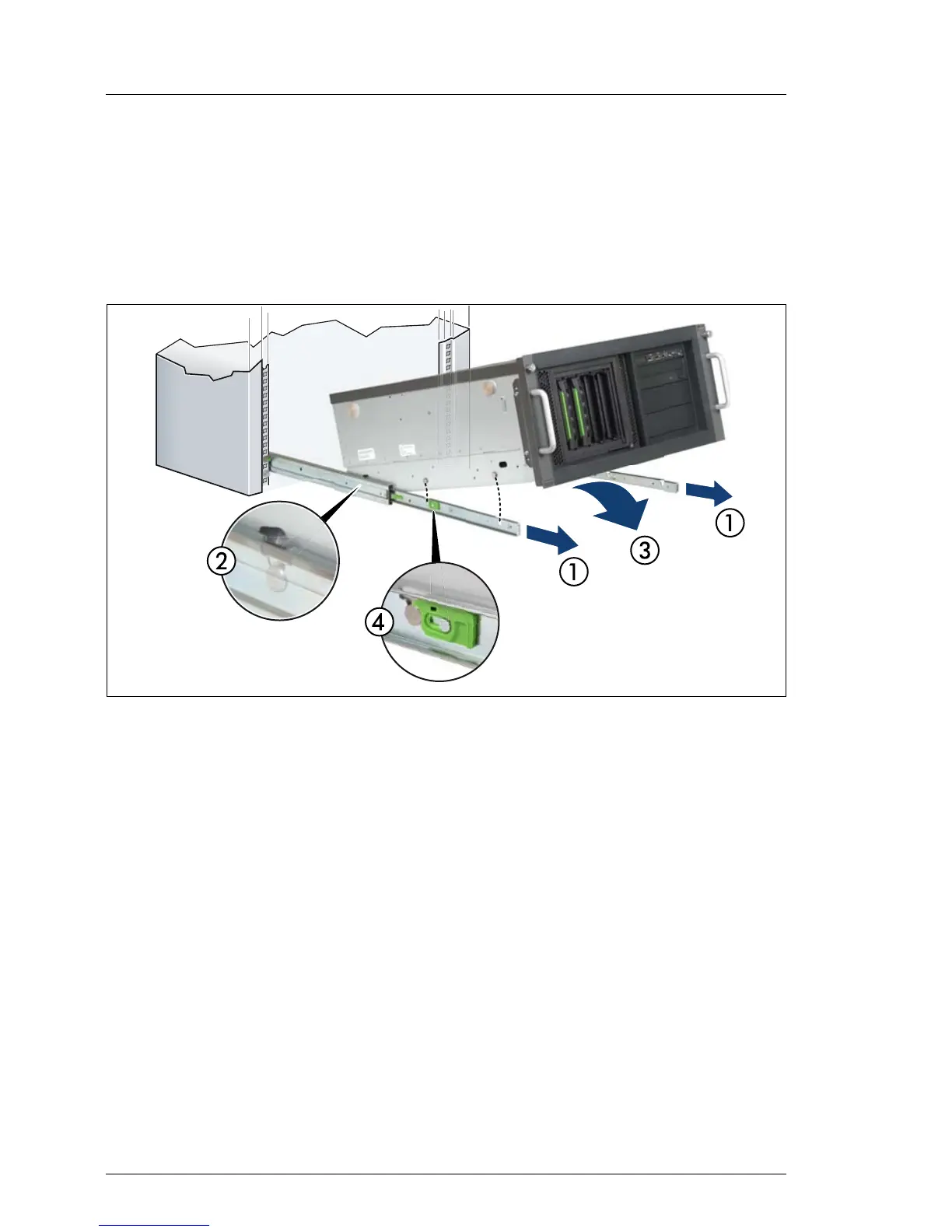

Figure 35: Mounting the server onto the rack rails
V CAUTION!
Ensure that the safety lock has been properly inserted into the snap fit
lock. For further information, refer to the "Rack Mounting Kit - RMK-F2
Drop-In" Mounting Instructions.
Ê Fully extend the telescopic rails until they lock in place (1).
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
seated in the mounting points on the telescopic rails and that the locking
bars engage (4).
