TX140 S2
Upgrade and Maintenance Manual 165
Expansion cards and backup units

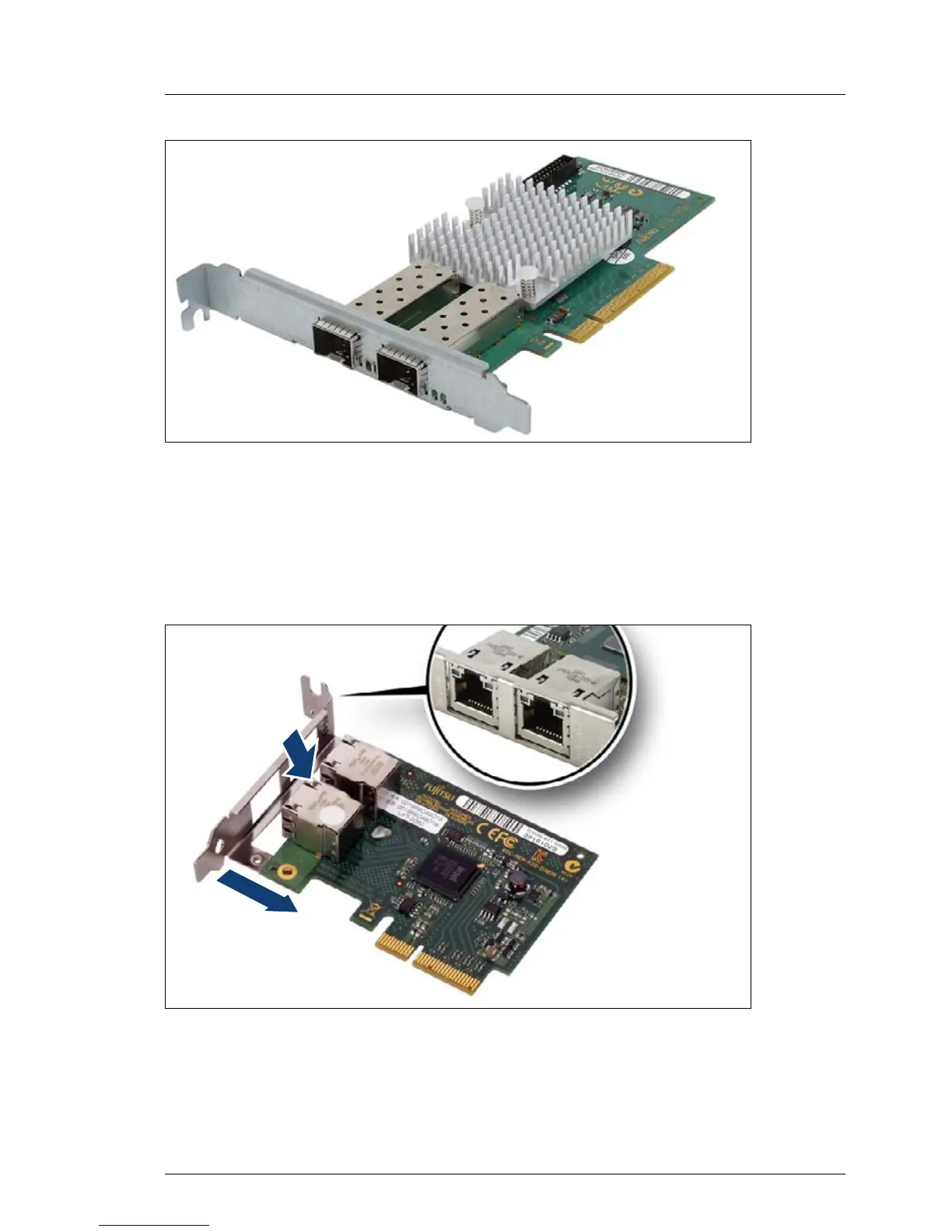

Figure 80: Network adapter D2755 - Mounting the slot bracket (C)
I Assembled network adapter D2755
Example network adapter D3035
Figure 81: Placing the slot bracket - D3035
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Carefully shift the slot bracket towards the controller (2) until the plug shells
engage with the cut-outs in the slot bracket connector panel (see close-up).
햲
햳
