166 Upgrade and Maintenance Manual TX140 S2
Expansion cards and backup units

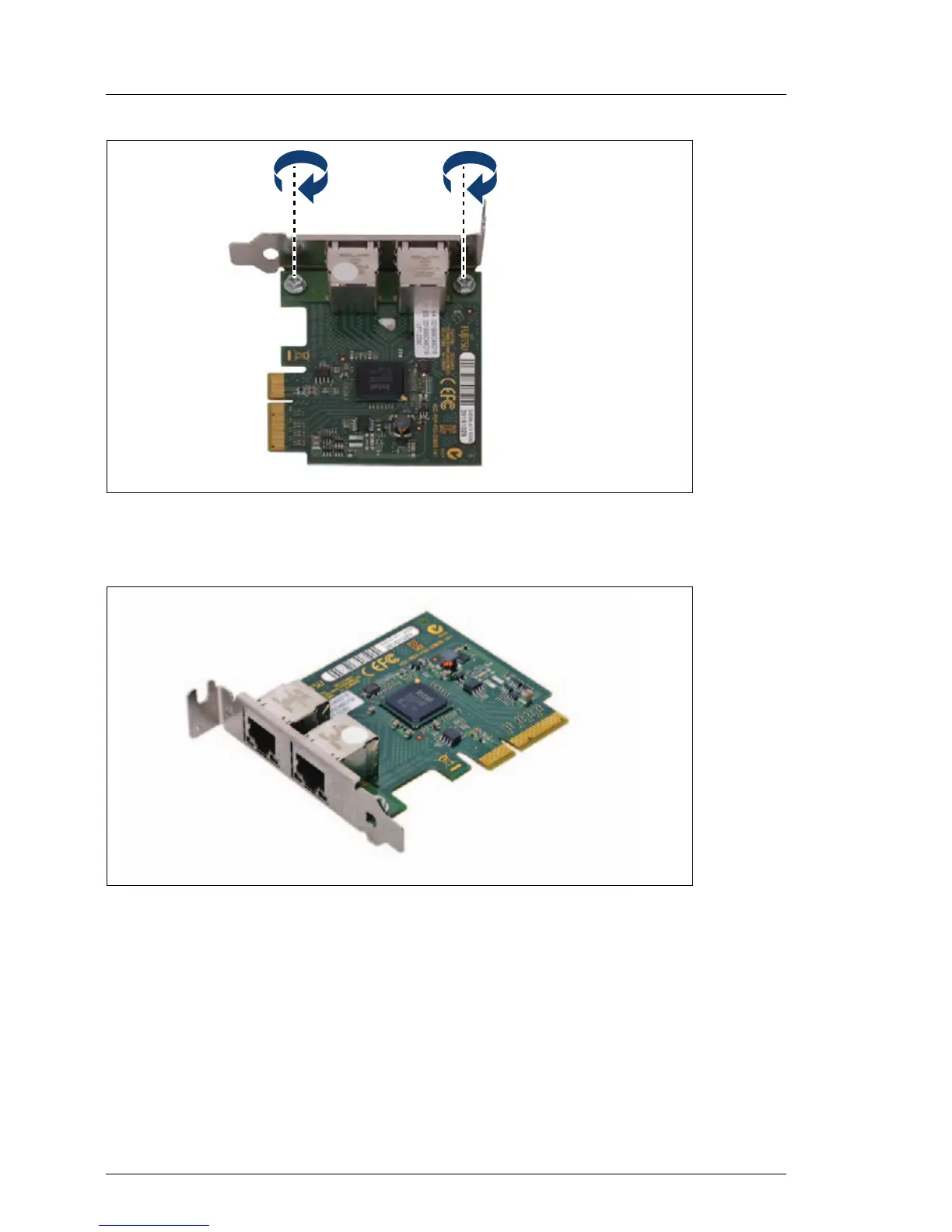

Figure 82: Fastening the slot bracket - D3035
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 83: Assembled network adapter D3035
