TX140 S2
Upgrade and Maintenance Manual 167
Expansion cards and backup units
Example network adapter D3045

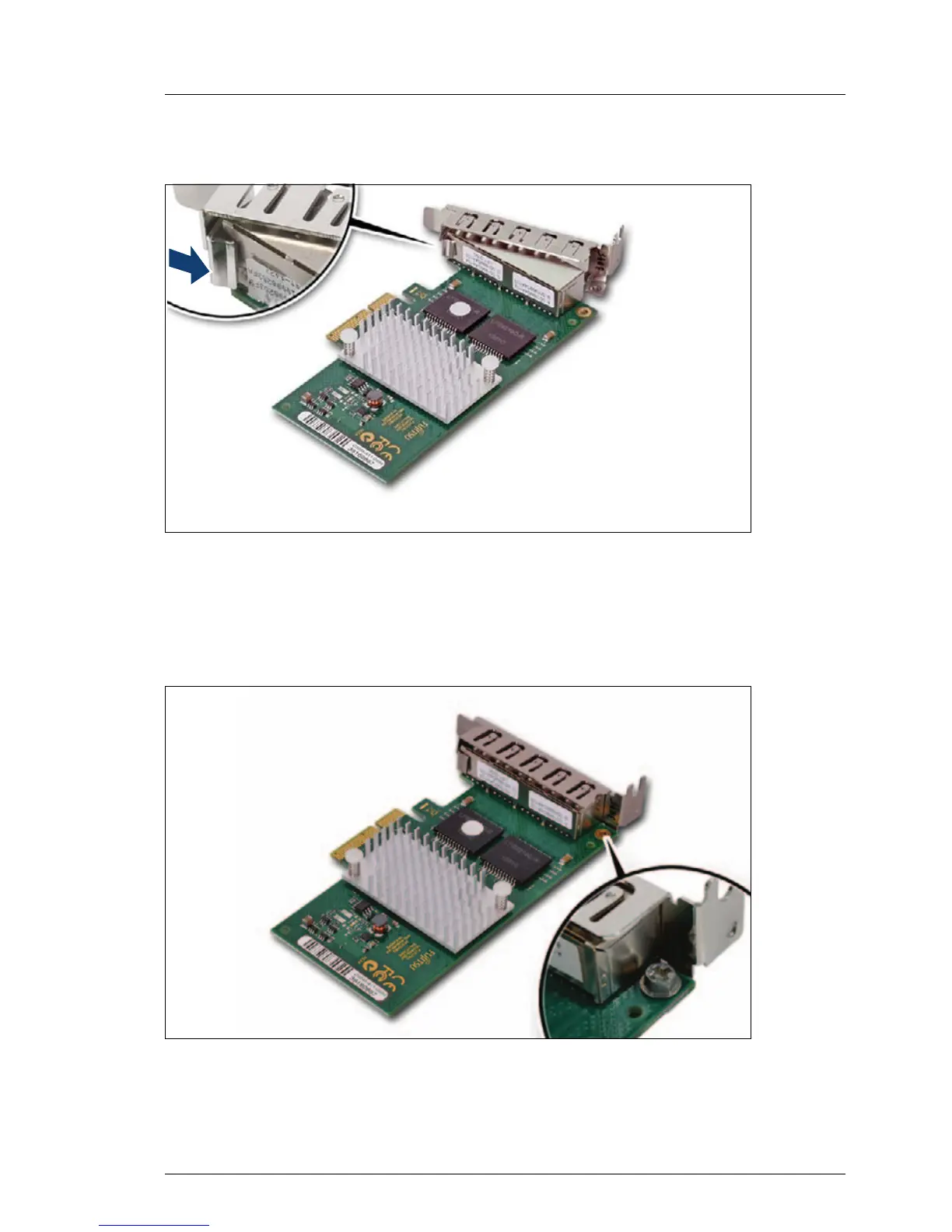

Figure 84: Placing the slot bracket - D3045
Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
Figure 85: Fastening the slot bracket - D3045
Ê Secure the slot bracket to the controller with one M3 x 4.5 mm screw.
햲
햳
