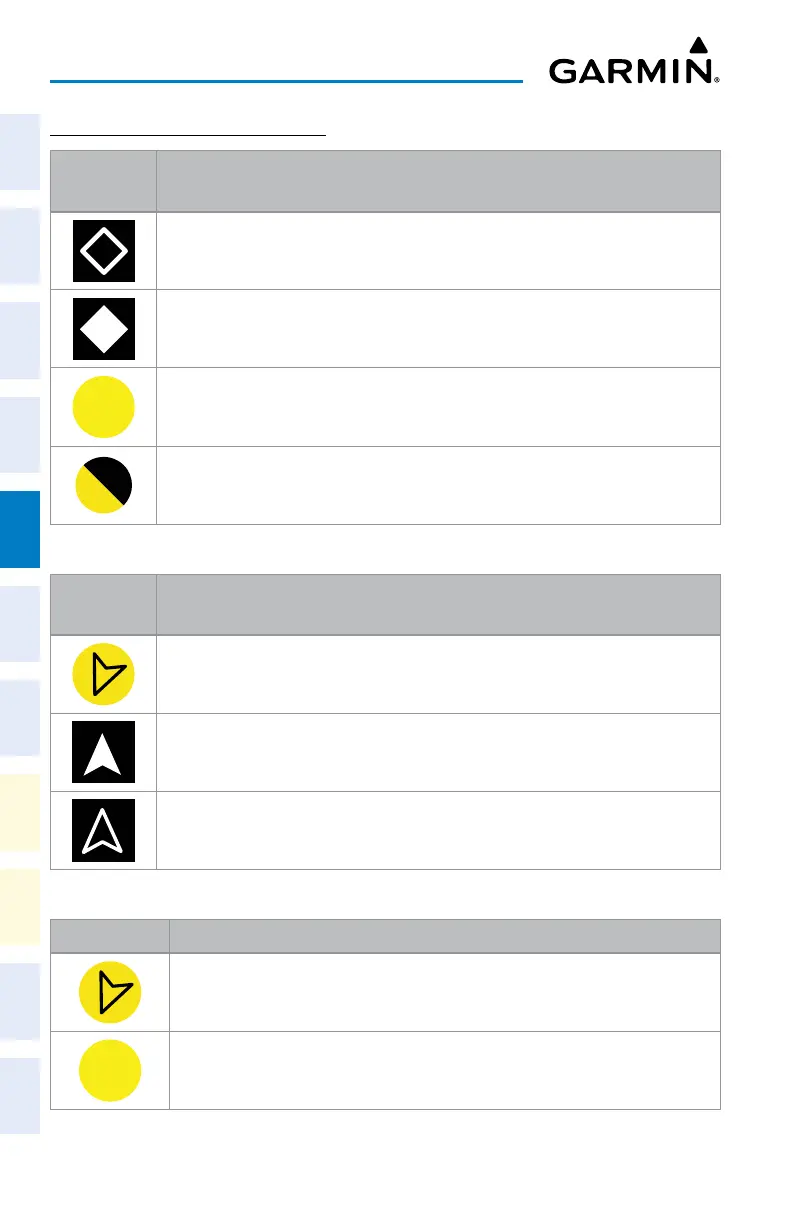

TRAFFIC DISPLAY SYMBOLOGY
Traffic
Symbol
Description
Other Non-Threat Traffic
Proximity Advisory (PA)
Traffic Advisory (TA)
Traffic Advisory Off Scale
TAS Traffic Symbology
Traffic
Symbol
Description
Traffic Advisory with ADS-B directional information. Points in the direction of the
intruder aircraft track.
Proximity Advisory with ADS-B directional information. Points in the direction of the
aircraft track.
Other Non-threat traffic with ADS-B directional information. Points in the direction of
the intruder aircraft track.
TAS Traffic with ADS-B Symbology (GTX 335 Transponder)
Symbol Description
Traffic Advisory with ADS-B directional information. Arrow points in the direction of
the intruder aircraft track.
Traffic Advisory without directional information.
