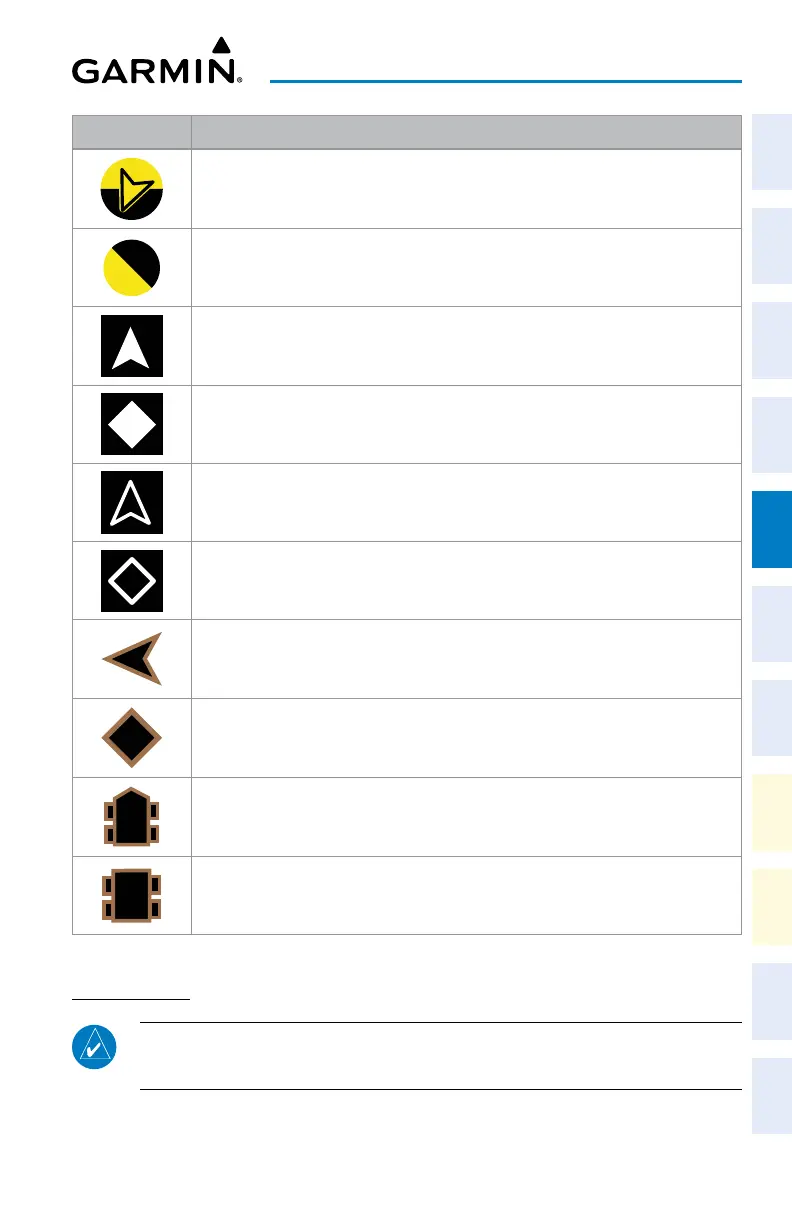

Symbol Description
Traffic Advisory with ADS-B directional information is beyond the selected display
range. Displayed at outer range ring at proper bearing. Arrow points in the direction
of the intruder aircraft track.
Traffic Advisory out of the selected display range without directional information.
Displayed at outer range ring at proper bearing.
Proximity Advisory with ADS-B directional information. Arrow points in the direction of
the aircraft track.
Proximity Advisory without directional information.
Other Non-Threat traffic with ADS-B directional information. Arrow points in the
direction of the intruder aircraft track.
Other Non-Threat traffic without directional information.
Traffic located on the ground with ADS-B directional information. Arrow points in
the direction of the aircraft track. Ground traffic is only displayed when ADS-B is in
Surface (SURF) Mode or own aircraft is on the ground.
Ground traffic without ADS-B directional information. Ground traffic is only displayed
when ADS-B is in Surface (SURF) Mode or own aircraft is on the ground.
Non-aircraft ground traffic with ADS-B directional information. Pointed end indicates
direction of travel. Ground traffic is only displayed when ADS-B is in Surface (SURF)
Mode or own aircraft is on the ground.
Non-aircraft ground traffic without ADS-B directional information. Ground traffic is
only displayed when ADS-B is in Surface (SURF) Mode or own aircraft is on the ground.
TAS Traffic with ADS-B Traffic Symbology (GTX 345R Transponder)
SYSTEM TEST
NOTE: Traffic surveillance is not available during the system test. Use caution when
performing a system test during flight.
