Potential Impact
Area Examples
Alert
Type
Example Annunciation
or
Warning
TAWS-B Warning
PULL UP
Terrain-SVT Warning
TERRAIN
or
Caution
TERRAIN
Terrain-SVT and TAWS-B Potential Impact Area with Annunciations

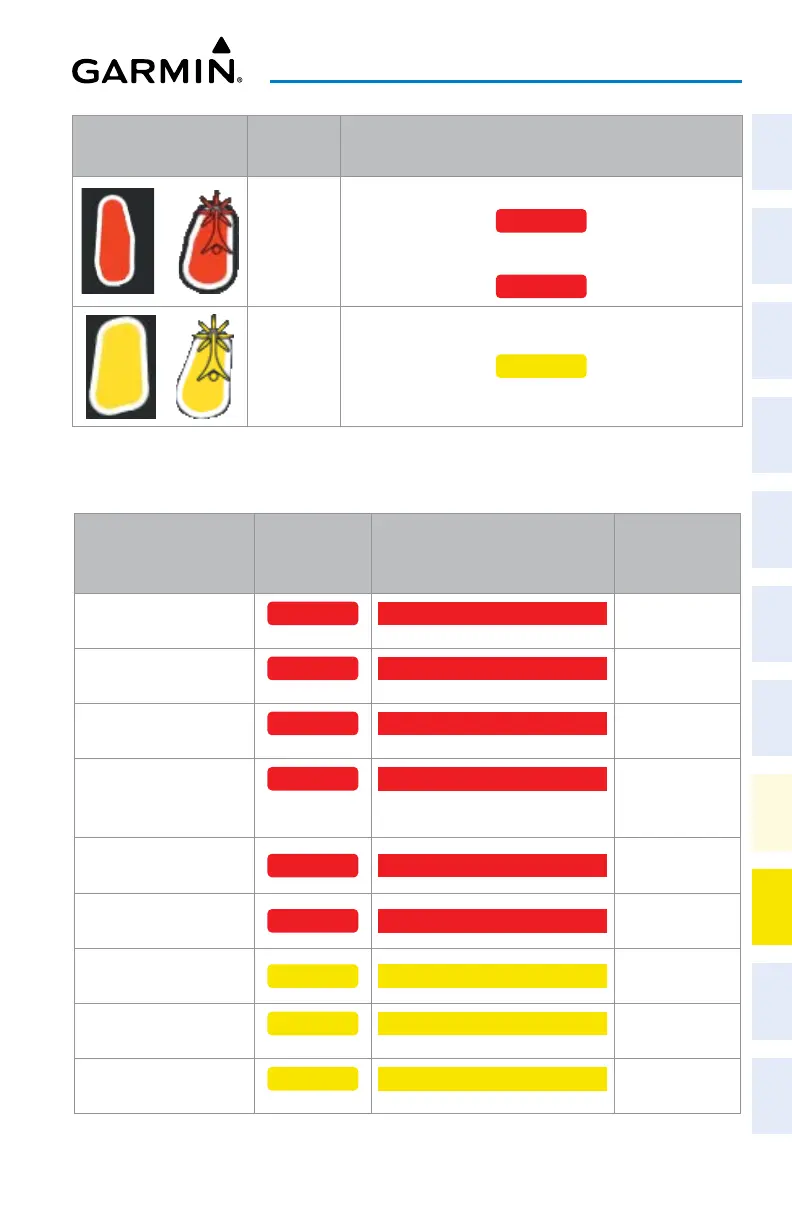

TERRAIN ANNUNCIATIONS
Alert Type
PFD/’Map -
Terrain- SVT’
Page Alert
Touchscreen Controller
Pop-Up Alert
Voice Alert
Reduced Required Terrain
Clearance Warning (RTC)
TERRAIN WARNING - TERRAIN
“Warning; Terrain,
Terrain”
Reduced Required Line
Clearance (RLC) Warning
TERRAIN WARNING - WIRE
“Warning; Wire,
Wire”
Imminent Terrain Impact
Warning (ITI)
TERRAIN WARNING - TERRAIN
“Warning; Terrain,
Terrain”
Reduced Required
Obstacle Clearance
Warning (ROC)
TERRAIN WARNING - OBSTACLE
“Warning; Ob-
stacle, Obstacle”
Imminent Obstacle Impact
Warning (IOI)
TERRAIN WARNING - OBSTACLE
“Warning; Ob-
stacle, Obstacle”
Imminent Line Impact
Warning (ILI)
TERRAIN WARNING - WIRE
“Warning; Wire,
Wire”
Reduced Required Terrain
Clearance Caution (RTC)
TERRAIN CAUTION - TERRAIN
“Caution; Terrain,
Terrain”
Imminent Line Impact
Caution (ILI)
TERRAIN CAUTION - WIRE
“Caution; Wire,
Wire”
Imminent Terrain Impact
Caution (ITI)
TERRAIN CAUTION - TERRAIN
“Caution; Terrain,
Terrain”
