ANNUNCIATIONS AND ALERTS
SYSTEM ANNUNCIATIONS
When an LRU or an LRU function fails, a large red or amber ‘X’ (depending on the LRU) is
typically displayed on items associated with the failed data. The following table depicts various
system annunciations. Refer to the current version of the pertinent flight manual for additional
information regarding pilot responses to these annunciations.
NOTE: Upon initially powering the system, certain windows remain invalid as the
equipment begins to initialize. All windows should be operational within one minute
from initial power application. If any window continues to remain invalid, the system
should be serviced by a Garmin-authorized repair facility.

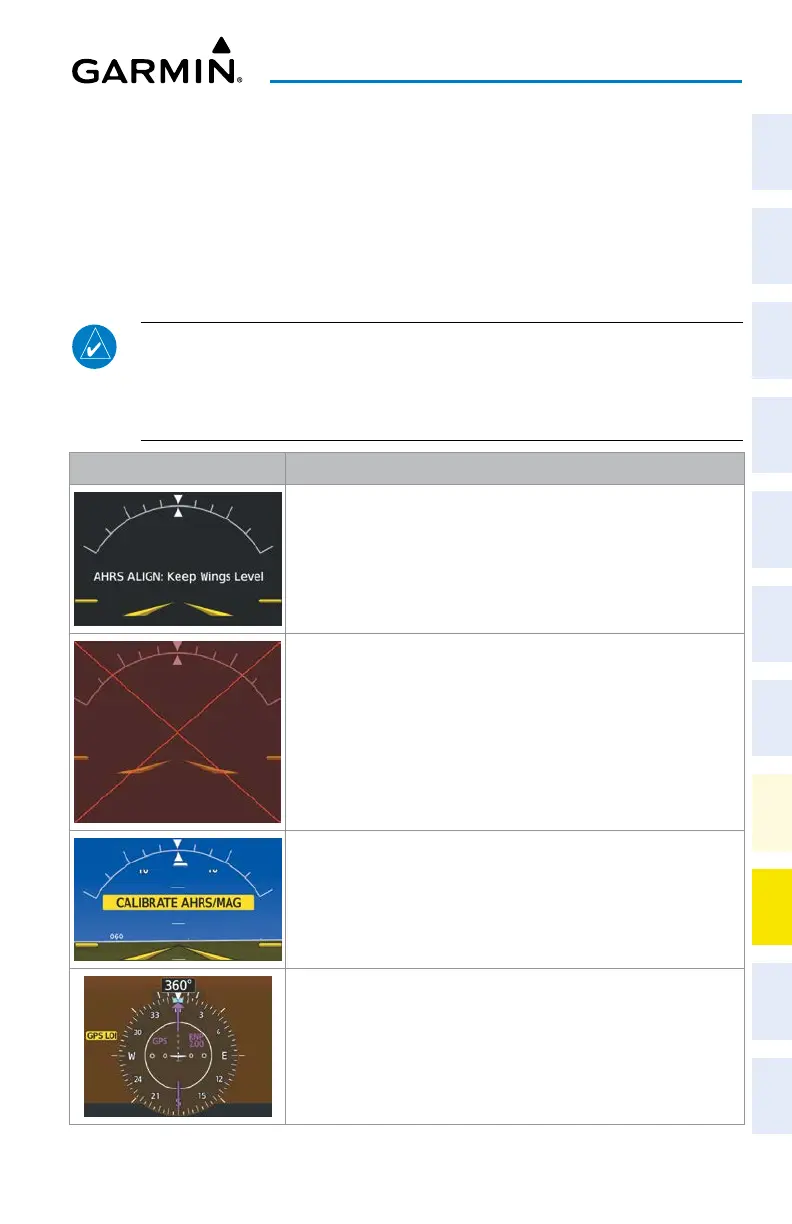

System Annunciation Comment
ADAHRS is aligning.
Display system is not receiving attitude information from the ADAHRS
(GRS unit).
ADAHRS calibration incomplete or configuration module failure.
GPS information is either not present or is invalid for navigation
use. Note that ADAHRS utilizes GPS inputs during normal operation.
ADAHRS operation may be degraded if GPS signals are not present (see
the current version of the flight manual).
