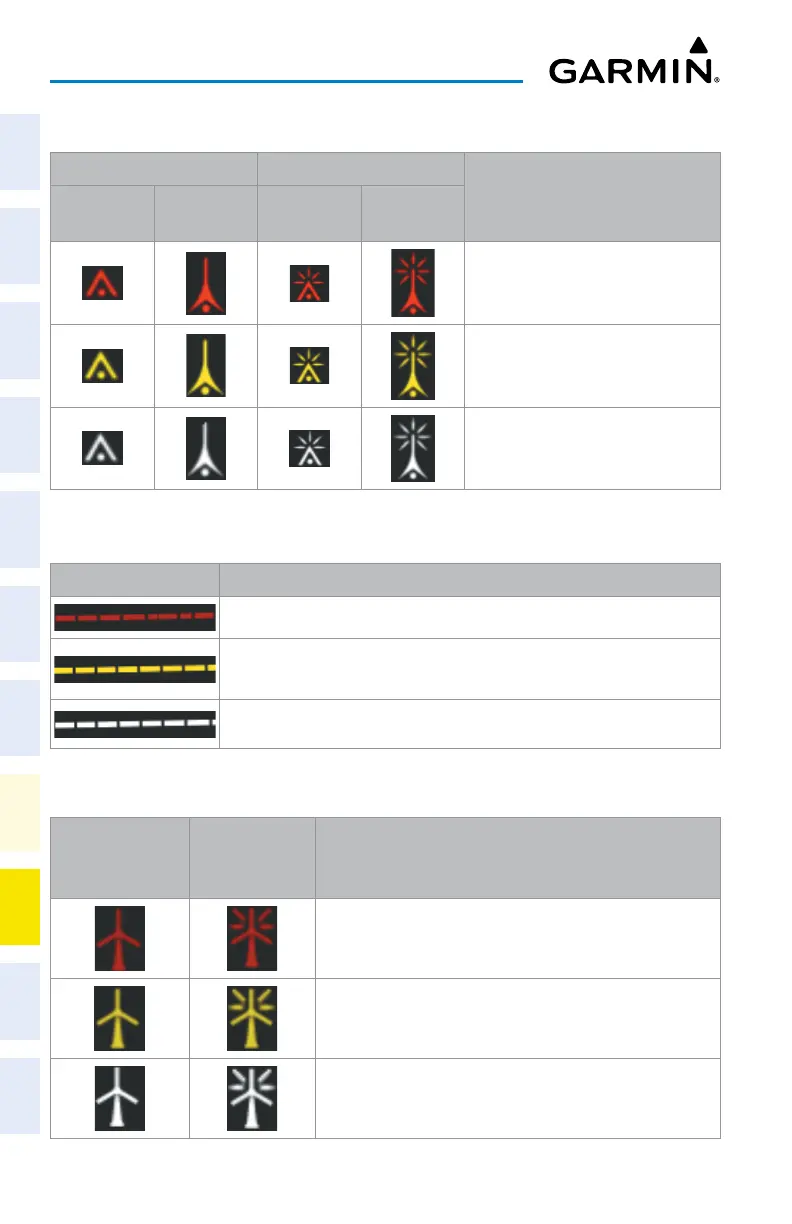

TERRAIN AND OBSTACLE ANNUNCIATIONS
Unlighted Obstacle Lighted Obstacle
Obstacle Location
< 1000’
AGL
> 1000’
AGL
< 1000’
AGL
> 1000’
AGL
Red obstacle is above or within 100 ft
below the aircraft altitude.
Yellow obstacle is between 100 ft and
1000 ft below the aircraft altitude.
White obstacle is more than 1000 ft
below aircraft altitude.
Terrain SVT Relative Point Obstacle Symbols and Colors
Wire Obstacle Wire Obstacle Location
Red wire obstacle is at or above the aircraft altitude.
Yellow wire obstacle is between the aircraft altitude to within 250 feet below
the aircraft altitude.
White wire obstacle is more than 250 ft below the aircraft altitude.
Relative Wire Obstacles and Colors
Unlighted
Wind Turbine
Obstacle
Lighted
Wind Turbine
Obstacle
Wind Turbine Obstacle Location
Red obstacle is above or within 100 ft below the aircraft
altitude.
Yellow obstacle is between 100 ft and 1000 ft below the
aircraft altitude.
White obstacle is more than 1000 ft below aircraft altitude.
Wind Turbine Obstacles and Colors
