5) Move a finger along the Touchpad, or turn the upper knobs to pan the displayed chart.
6) Touch the Rotate buttons to rotate the chart clockwise or counter-clockwise, as indicated
on the button. Each touch of the button rotates the chart 90 degrees in the designated
direction.

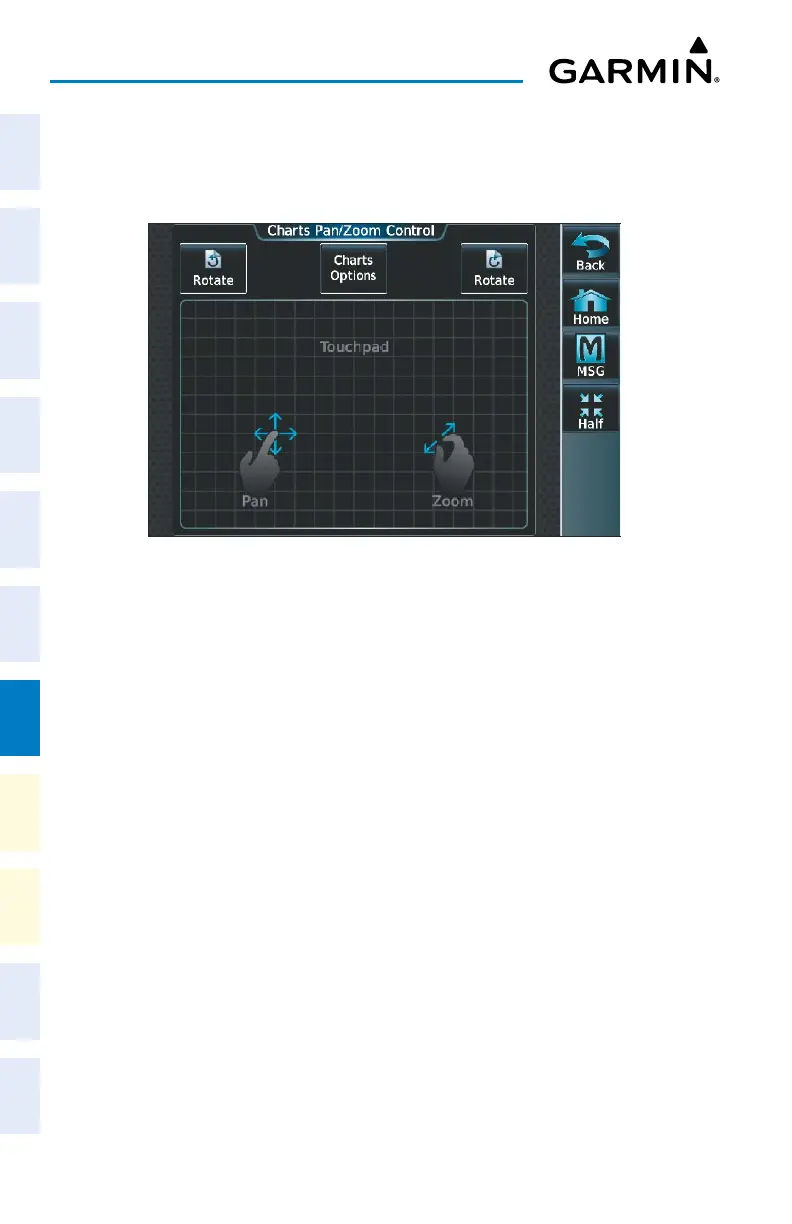

Pan and Zoom Touchpad
Selecting airport diagrams from the ‘Nearest Airports’ Screen:
1) From MFW Home, touch Nearest > Airport.
2) Touch the desired airport button.
3) Touch the Airport Chart Button. The Info Tab selections are displayed on the
Touchscreen Controller and the Airport Diagram is displayed on the selected display pane.
Syncing charts to current phase of flight:
1) From MFW Home, touch Charts > Chart Selection.
2) From the ‘Charts’ Page, press the SYNC POF Button to cause the chart applicable to the
current phase of flight to be displayed.
Selecting night, day, or auto view:
1) From MFW Home, touch Charts > Chart Selection > Charts Options.
2) Touch the Light Mode Button.
3) Touch the Night, Day, or Auto Button. When Auto is selected, the display will change
to the appropriate day or night setting, dependent on ambient lighting.
4) With ‘Auto’ selected, touch the Threshold Button. The ‘Auto Light Mode Threshold’
Window is displayed.
5) Move the slider left or right to set the desired threshold. Setting the Threshold Level
percentage to the same percentage shown as the Current MFD Backlight Level will cause
the Day/Night view to switch at the current backlight setting. Adjusting the Threshold
