Installer Guide
18
Jan 17 4:32
Network Mode
*Static
Next OK
Previous
Jan 17 4:32
IP Address
192.168.0.2
Clear OK


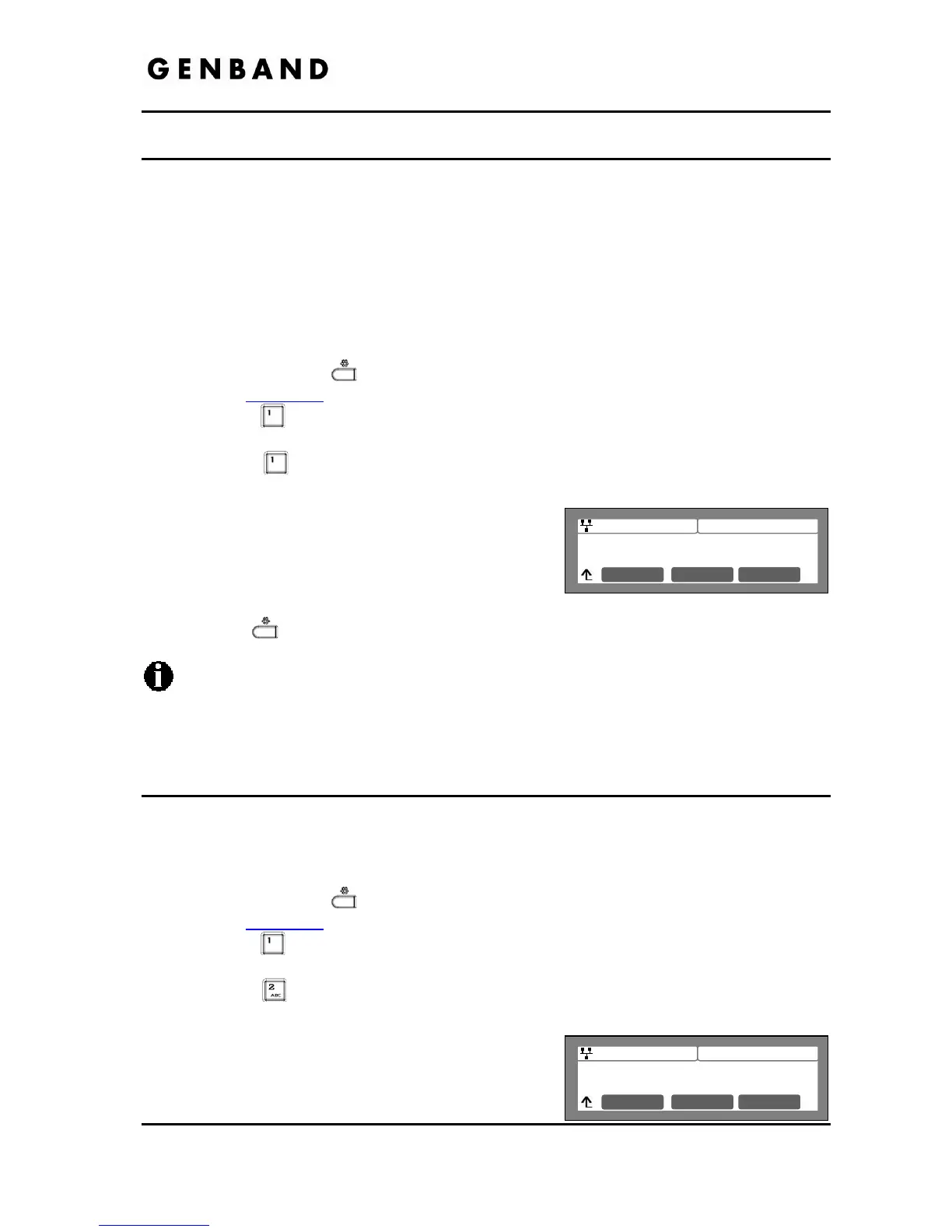

3.4.1 Network Mode
The IP phone is capable of obtaining all of its IP configuration data from a DHCP server. When
a DHCP server is not available, static addressing is used for the Network Mode. Selecting static
addressing requires manual entry of other IP network parameters including:
- IP address of the phone
- Default gateway IP address
- Subnet mask
- DNS address
To set the Network Mode:
 Press the Settings (
) button. If the LCD Menu is locked, use the unlock procedure.
Refer to section 3.3
.
 Press the
digit, or move the cursor to 1.Network Configuration using the [Next]-
[Previous] softkeys and press the [OK] softkey.
 Press the
digit, or move the cursor to 1.Network Mode using [Next]-[Previous]
softkeys and press the [OK] softkey.
 Select the Network Mode using [Next]-[Previous]
softkeys and press the [OK] softkey to save your
selection.
 Move to another parameter with the navigation
buttons and continue the session or press the
Settings (
) button to exit the configuration session.
An asterisk, , is displayed in front of the current selection.
Changing the Network Mode requires a reboot of the IP phone; when you exit the LCD
Configuration Menu, you will receive a reboot notice. The IP phone must reboot to
utilize the new values entered.
3.4.2 IP Address
Selecting static addressing for the Network mode requires manual entry of an IP address for the
IP phone. The IP phone requires a valid available IP address for proper operation.
To set the IP Address:
 Press the Settings (
) button. If the LCD Menu is locked, use the unlock procedure.
Refer to section 3.3
.
 Press the
digit, or move the cursor to 1.Network Configuration using the [Next]-
[Previous] softkeys and press the [OK] softkey.
 Press the
digit, or move the cursor to 2.IP Address using the [Next]-[Previous]
softkeys and press the [OK] softkey.
 Input the IP Address using the dial pad and press
the [OK] softkey to save your entry.
 Move to another parameter with the navigation
buttons and continue the session or press the
