Chapter 3 Settings and Measurement
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification
Capturing destination Backup destination Other conditions SD CARD replacement
SD CARD None Replaceable (Capturing side)
When ring capturing is enabled. Impossible
When external sampling is set. Impossible
Internal memory Replaceable (Capturing side)
When ring capturing is enabled. Impossible
When external sampling is set. Impossible
The capturing format is CSV. Impossible
FTP server (Wireless LAN) Not applicable
FTP server (Wired LAN) Impossible
Please perform the replacement operation within the displayed time in the message.
When the backup is performing for the CSV Format, the SD-Memory Card can not exchange.
CAUTION
Every time you replace the SD memory card, “_CHG” number is added to the file name.
<Example> When the data is captured in the file name “TEST.GBD”
First SD memory card: TEST.GBD Second SD memory card: TEST_CHG1.GBD

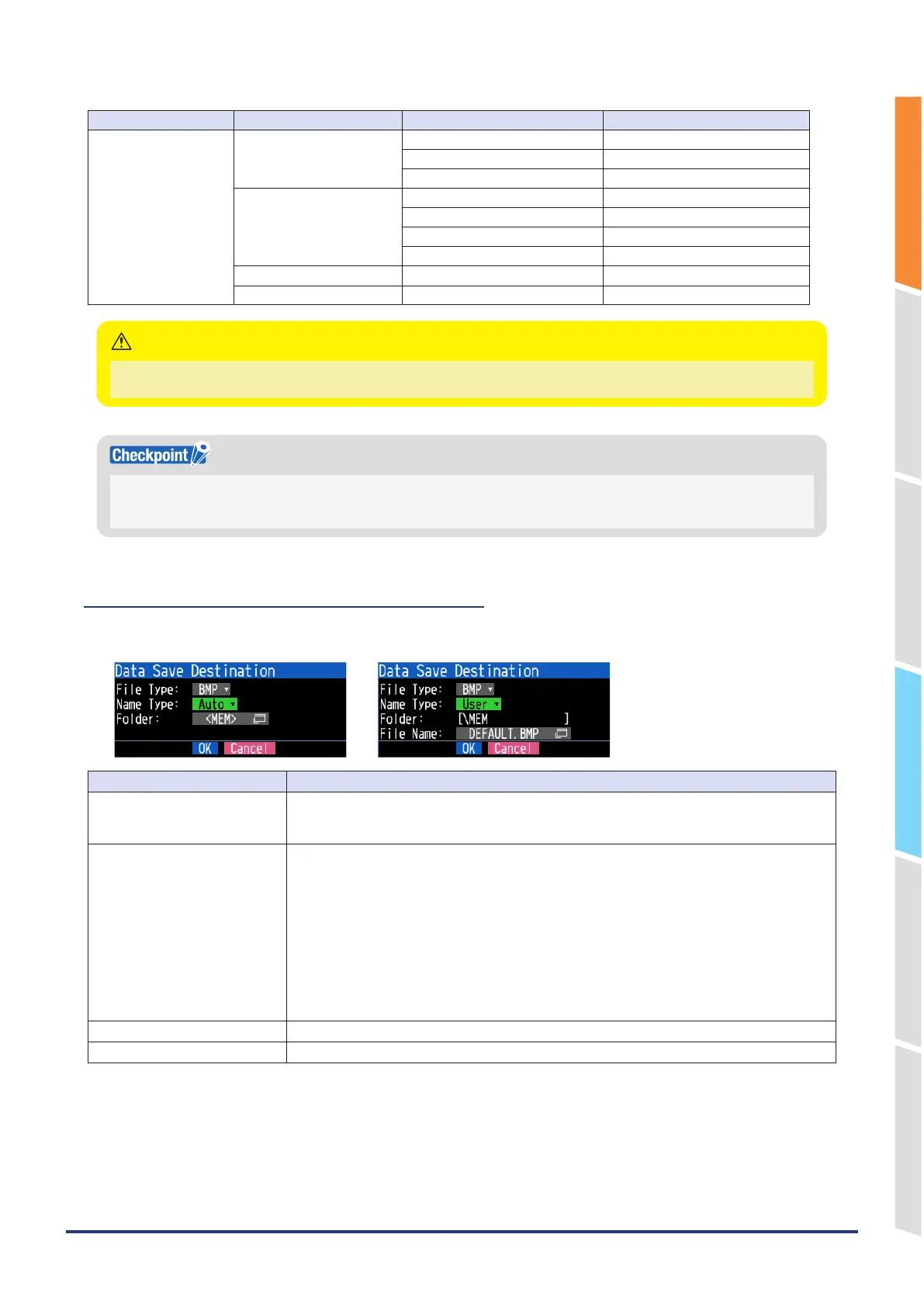

8-4. Specify Save Destination (Screen Copy)
Saves the data that is replaying on the screen in the internal memory or SD memory card as an image file.
<If the naming method is Auto> <If the naming method is Arbitrary>
Setting Description
File Type Sets the file format used to save data.
BMP: Saves data in bitmap file format
PNG: Saves data in ping format
Name Type Set how a data file should be named.
Auto: Automatically supplies the file name.
<Example> 20240601-123456.BMP
Number part: File creation date
* The file is created on June 1,2024,12:34:56 in this example.
BMP: Data format
BMP (BMP file format)
PNG (PNG file format)
User: Data is captured to a file with an entered file name.
Sequential number: A file is created with an arbitrary file name that has been entered, followed
by a sequential number.
Folder Specify a folder to which you want to save data. For details, refer to "9. File dialog".
File Name Specify a file to which you want to save data. For details, refer to "9. File dialog".
