4-5
Chapter 4 Example of Use
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification

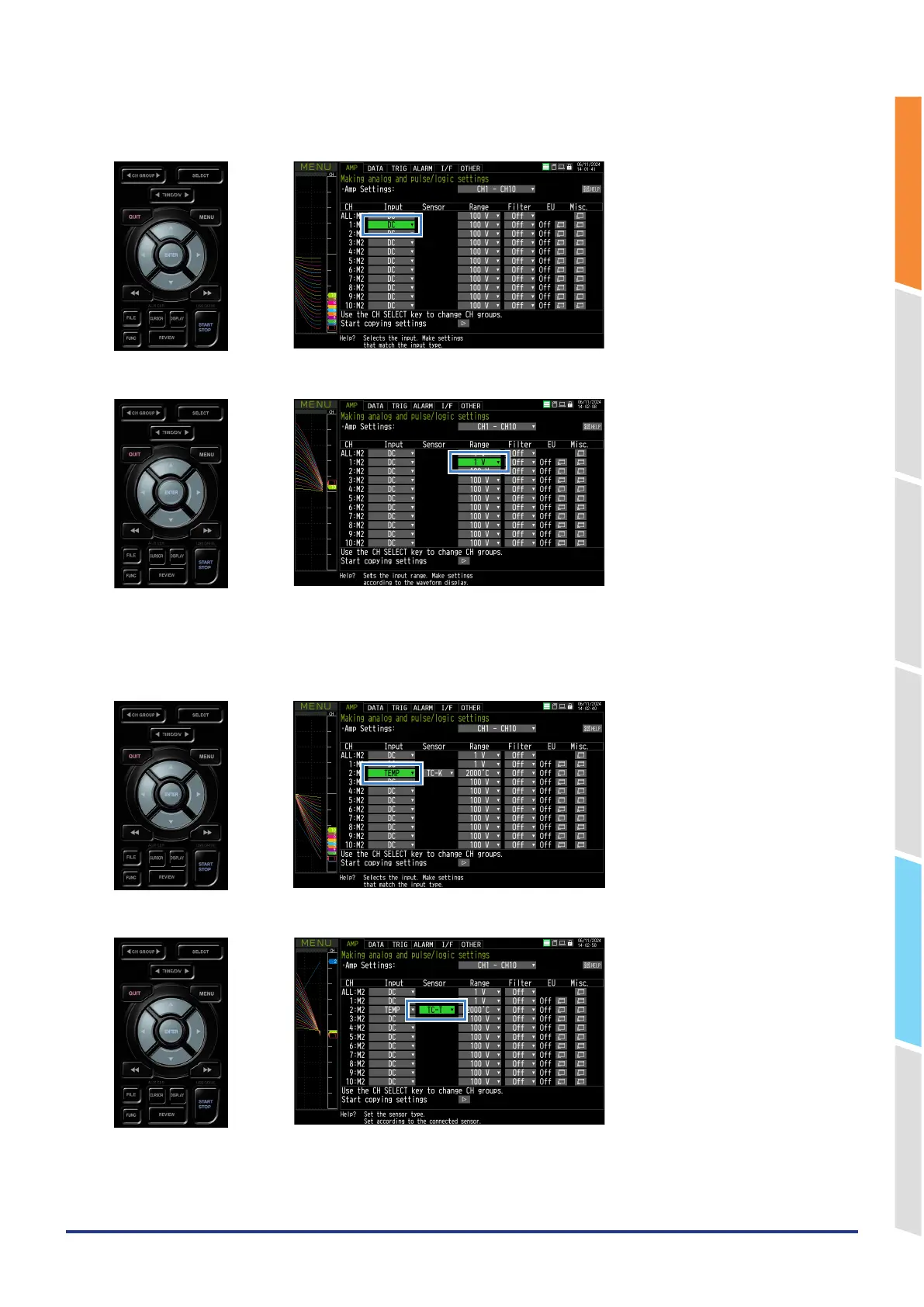

<CH1 setting>
1. Move the cursor to the CH1 input and set it to "DC".
2. Move the cursor to the CH1 range and set it to "1V".
CH2 settings
1. Move the cursor to the CH2 input and set it to "TEMP".
2. Move the cursor to the CH2 sensor and set it to "TC-T".
