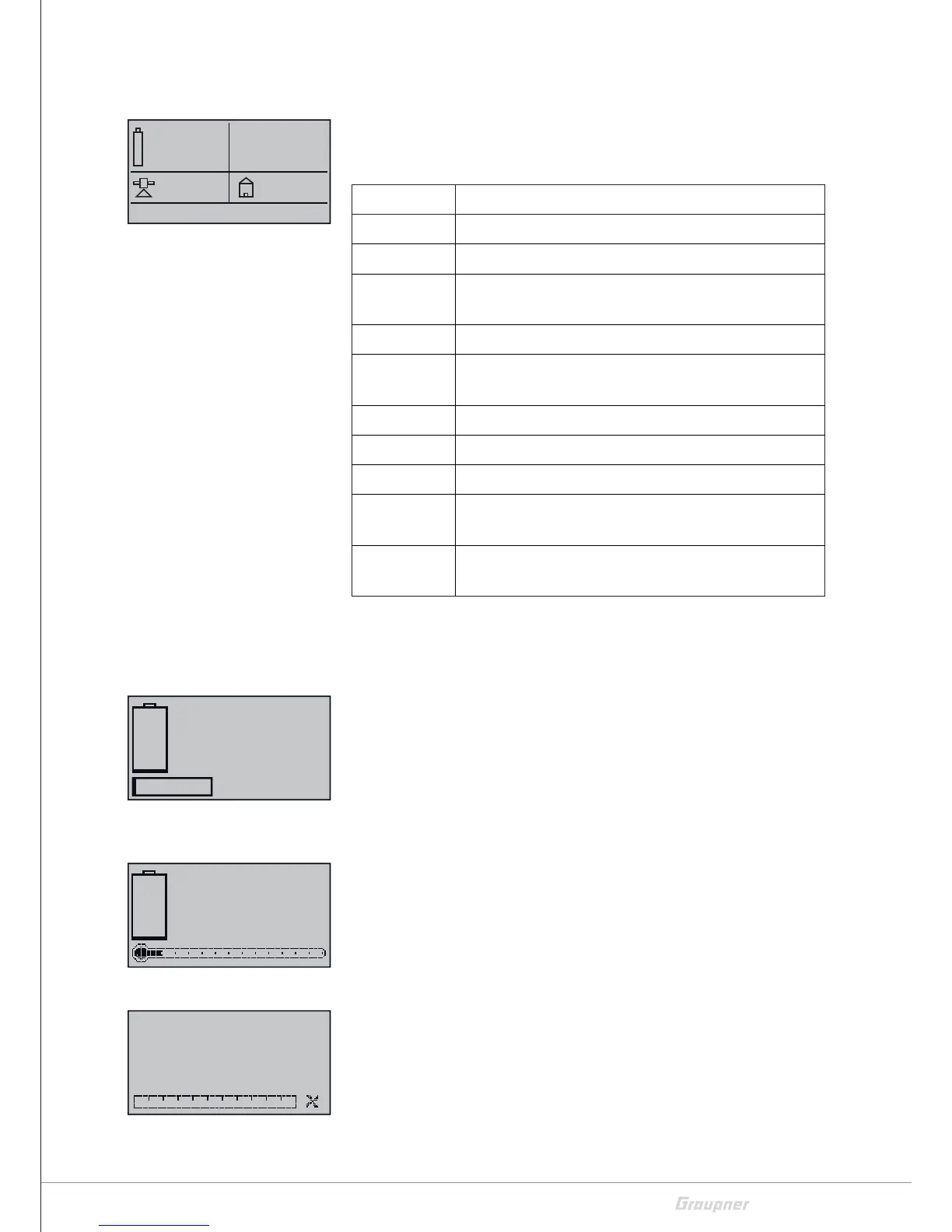

Microcopter display
This display shows the data of a HoTT-compatible microcopter. The
abbreviations have the following meaning (from top to bottom start-
ing on the left):
Value Description
V Current voltage
0:00 Time turned on
mAh Used battery charge since the device has been
turned on
0 Position number of the satellite
km/h Speed above ground calculated by the GPS sys-
tem
Alt Current altitude
Dir Direction of movement
I Momentary current
m Distance from the starting location calculated by
the GPS system
° Position in angular degrees relative to the starting
location calculated by the GPS system
Messages from the microcopter sensor are displayed in the bottom
line in the above display.
Battery and consumption display
This display visualizes the current voltage, the currently flowing cur-
rent and the capacity consumed within the current switch-on period
from the battery connected to the General Engine (No. 33610) or
General-Air module (No. 33611) and at the lower edge the fuel con-
sumption (in ml) registered by the fuel sensor (No. 33614), if appli-
cable.
SENSOR 1 and SENSOR 2
These two displays visualize, if necessary, the connection to "T (EMP)
1" and / or "T (EMP) 2" of the General Engine (No. 33610) or General
Air module (No. 33611) connected to the temperature / voltage sen-
sors (No. 33612 or 33613).
RPM sensor
This display visualizes the speed sensor (No. 33615 or 33616), which
may be connected to a General Engine (No. 33610) or General Air
Module (No. 33611) measured speed.
0mAh
0:00
0.0V
0km/h
0
I:
DIR.
ALT. 0m
0°
0A
0m
0°
0.0V
0.0A
0mAh
