80 / 116
S1002.PRO_mz12PRO_Teil2_V1sh

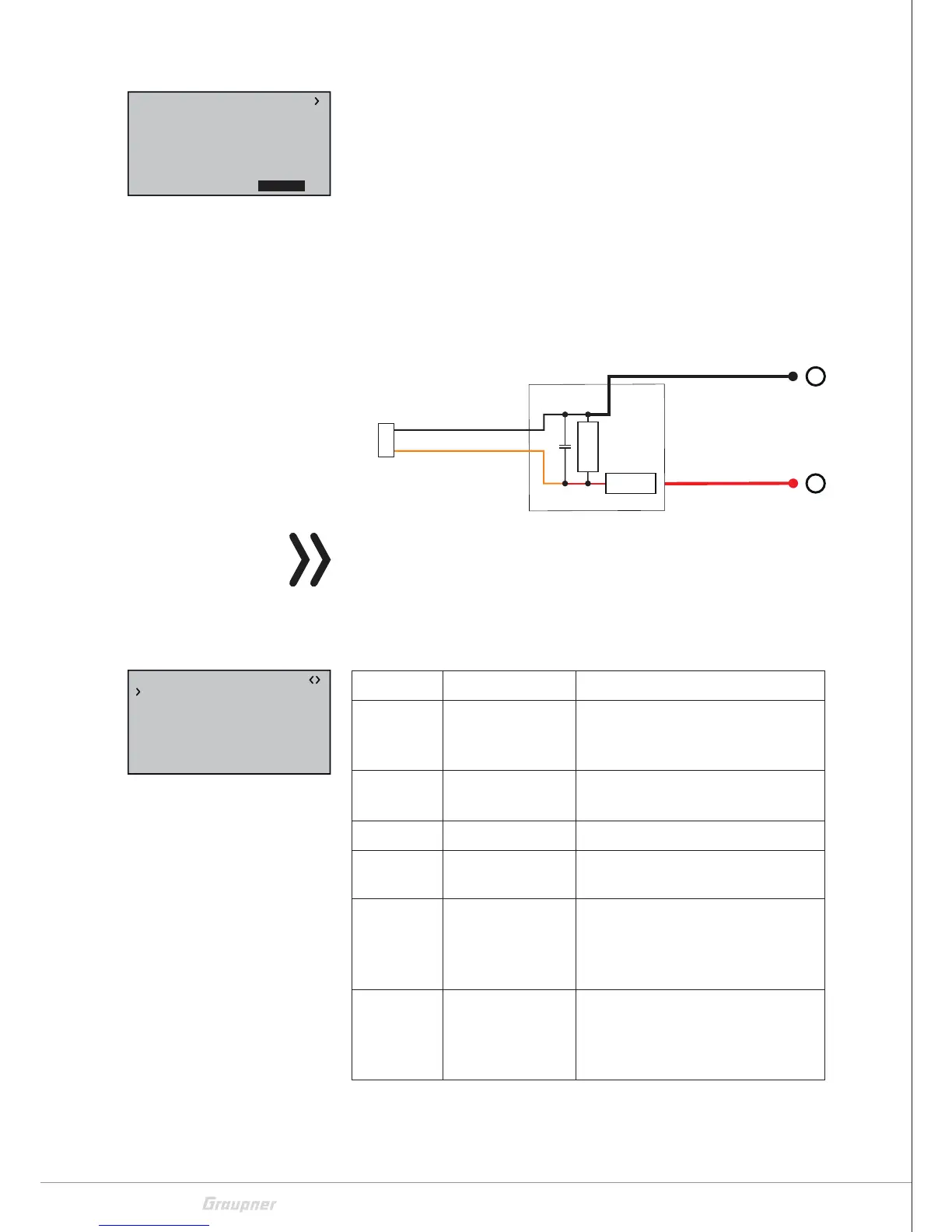

Depending on the firmware status and the function selected in the
line "6CH FUNCTION", the connection 6 of the receivers GR-12 and
GR-16 can be used to connect RC components or a circuit for voltage
measurement:
• SERVO
The connection 6 is suitable for the operation of RC components.
• BATT V
After switching as described before, a DC voltage off max. 25,5 V
can be displayed instead of the receiver voltage. This way it is
possible to monitor the main battery voltage without using exter-
nal sensors. The ESCs S3082 and S3083 have this switch already
included.
–
+
Attention
Never connect a power supply with an output voltage higher than
8,4 V directly to a connection port of the receiver! The receiver and
all connected devices would be immediately destroyed.
RX SERVO
Value Description Possible settings
Vx.xx Firmware ver-
sion of the
receiver
None
OUTPUT
CH
Selected channel 1 … depending on the receiver
REVERSE Servo reversal ON/OFF
CENTER Servo center in
µs
Currently set "servo neutral
position"
TRIM Trim position in
µs deviation
from the CENTER
position
LIMIT– Limit on the "–"
side of the servo
travel in percent-
age servo travel
RX DATAVIEW V6.39
S–STR100% R–TEM.+28°C
L PACK TIME 00010msec
R-VOLT :05.0V
L.R-VOLT:04.5V
S–QUA100%S–dBM–030dBM
6CH FUNCTION:SERVO
RX SERVO V6.37
REVERSE : OFF
CENTER : 1500µsec
TRIM : –000µsec
LIMIT– : 150%
OUTPUT CH: 01
LIMIT+ : 150%
PERIOD : 20msec
