S1002.PRO_mz12PRO_Teil2_V1sh
V-TAIL
With this model type, the control functions of the elevator and rud-
der are linked to each other so that each of the two tail flaps assumes
the elevator and rudder function controlled by a separate servo.
The servos are normally connected to the receiver as follows:
OUTPUT CH 3: V-tail servo, left
OUTPUT CH 4: V-tail servo, right
Observe the instructions in the receiver section, if the control sur-
face deflections should not follow the control commands.
ELEVON (delta/flying wing models)
The servos connected to outputs 2 and 3 assume an aileron and ele-
vator function. The servos are normally connected to the receiver as
follows:
OUTPUT CH 2: Aileron/elevator, left
OUTPUT CH 3: Aileron/elevator, right
Observe the instructions in the receiver section, if the control sur-
face deflections should not follow the control commands.

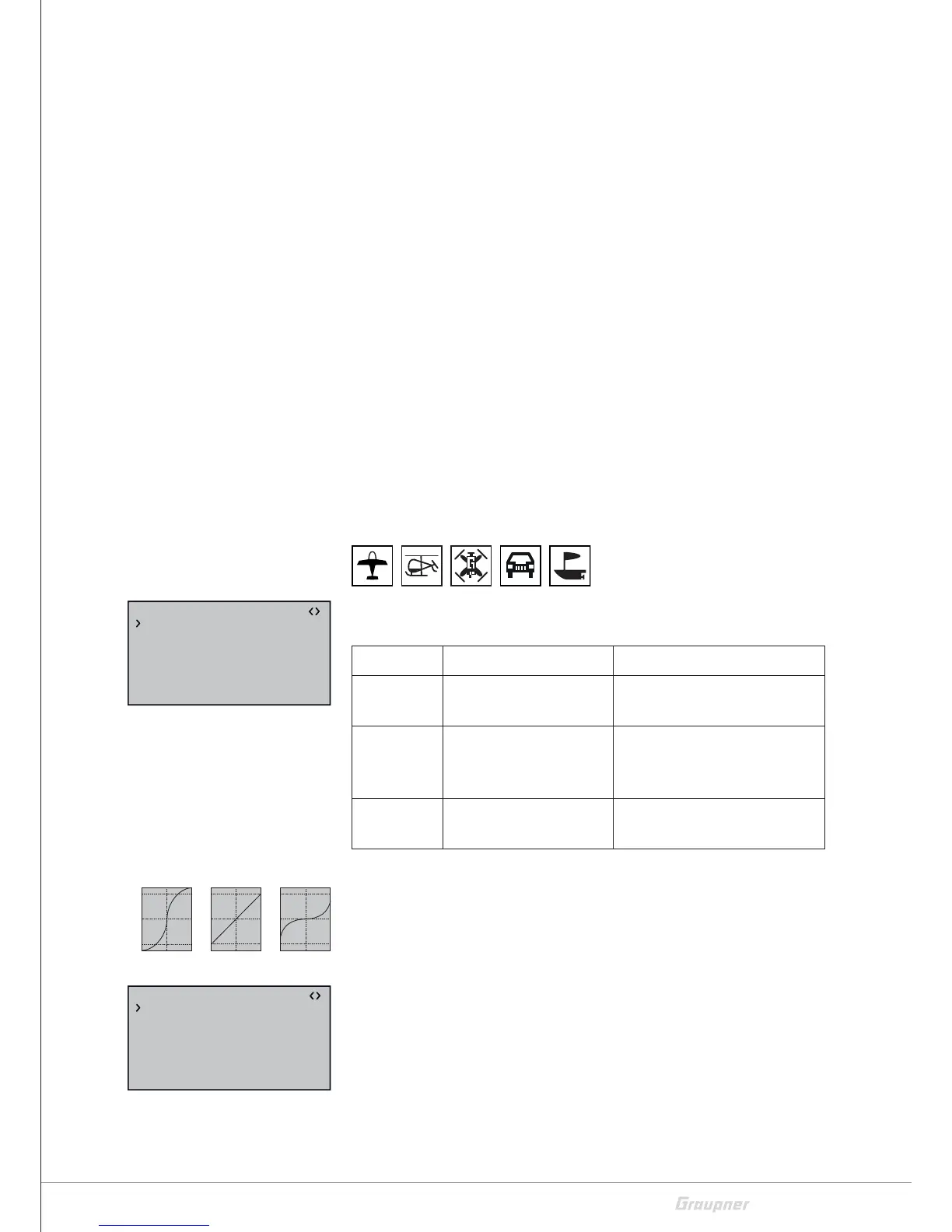

RX CURVE
With the RX CURVE option, you can administer control characteris-
tics for up to three servos:
Value Description Possible settings
Vx.xx Firmware version of
the receiver
None
CURVE1, 2
or 3 CH
Channel assignment
of the respective
curve setting
1 … depending on the
receiver
TYPE Curve type A, B, C
see figure
A non-linear control function is used, if necessary, for the control
functions 2, 3 and 4. These channel presets also correspond to the
factory setting.
It should be noted, however, that depending on the type of model,
some control function acts on more than one control channel. When,
for example, in fixed-wing model in the transmitter is preset "2AI"
and instead of the individually adjustable menu "D / R Expo" of the
transmitter mz-12 Pro HoTT the RX CURVE option should be used,
by setting 2 curves. Otherwise, the left and right aileron have differ-
ent control characteristics.
RX CURVE V6.37
TYPE : B
CURVE1 CH : 02
TYPE : B
CURVE2 CH : 03
TYPE : B
CURVE3 CH : 04
Expo = +100%
–100%
+100%
0
–100%
+100%
0
Expo = –100%
–100%
+100%
0
–100%
+100%
0
linear
–100%
+100%
0
–100%
+100%
0
TYP B
DR = 125% DR = 70%
Servo travel
Servo travel
RX CURVE V3.67
TYPE : A
CURVE1 CH : 02
TYPE : A
CURVE2 CH : 05
TYPE : B
CURVE3 CH : 04
