7. If possible, switch on an existing motor, in order to additionally
check the interference resistance.
8. Move further away from the model until it does not respond per-
fectly any more.
9. At this location, wait for the remainder of the test period with the
still operable model or push the WNT key to quit the test.
As soon as the range test has finished, the model should react
to the controls movements. If this is not 100 % the case, do
not use the system and contact your Service at Graupner/SJ
GmbH.
10. Carry out the extended range test before starting up your model,
simulating all the control movements occurring in practice. In
order to guarantee a safe model operation, the range must
always be at least 50 m on the ground.
CAUTION
• Never start a range test on the transmitter during normal
model operation!
• For physical reasons, the antenna integrated into the right han-
dle of the transmitter forms a small field strength in a straight
extension. In particular, if the model to be controlled is located
at a greater distance and / or below the pilot location, the
transmitter must be held so that the handle is approximately
at a right angle to the model.
RF module
If necessary, the RF emission of the transmitter can be switched on
and off in this line.
Programming step-by-step
1. Push the ENT key.
2. Use the selection keys to select "ON" or "OFF".
3. Push the ENT key.

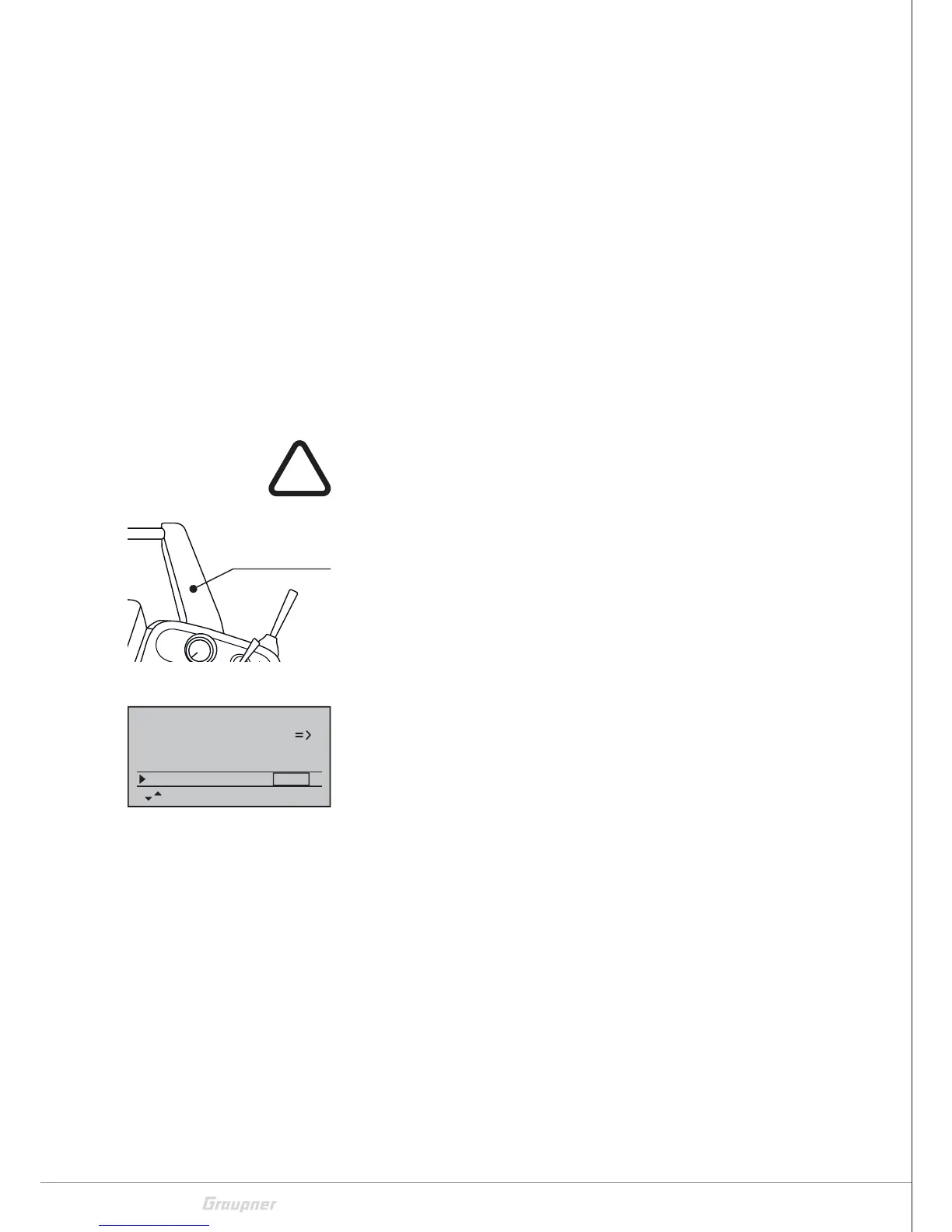

Antenna integrated
in the handle
RF module
ON
–––
Timers 0:00
Rcv output
Bind
–––
Range test
99s
