Model type (helicopter)

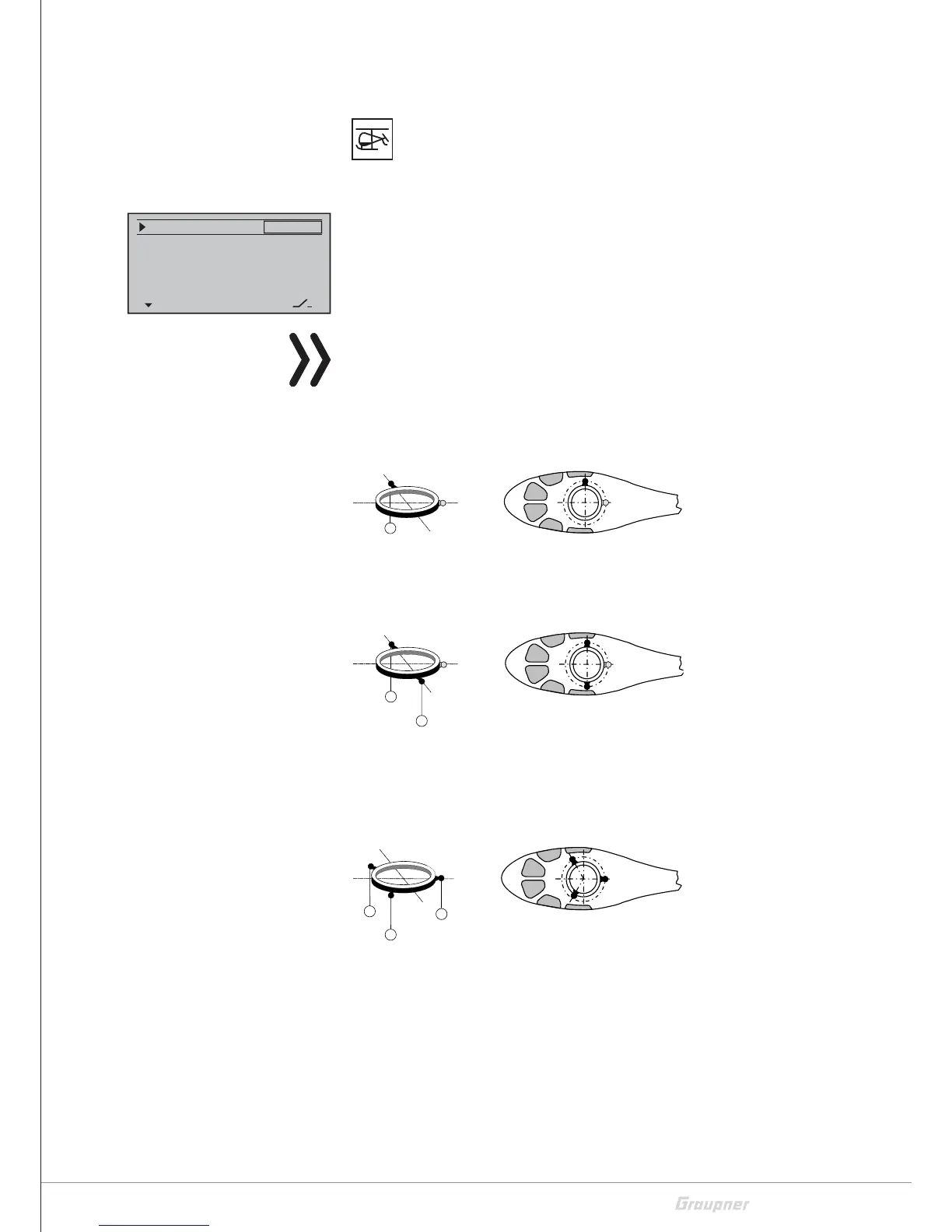

Swashplate type
In case of helicopter models equipped with flybar systems, as a rule,
there is no transmitter-side swashplate mixer, so when using such a
system usually "1 servo" is to be selected as a type of swashplate.
In case of helicopter without Flybar system the count of servos which
act on the swash plate has to be set.
Attention
In this context, it is essential to observe the adjustment instructions
included with the Flybar system or the RC helicopter kit, as other-
wise the heli may become non-flyable.
"1 servo"
2
A flybar system is used or the swashplate is tilted by a roll and nick
servo. A separate servo is used for the pitch control.
"2 servo"
2
1
The swashplate is shifted axially for the pitch control by means of
two roll servos. The nick control is decoupled by means of a mechan-
ical compensation rocker.
"3sv (2Roll)"
3
1
2
Symmetrical three-point control of the swashplate by means of
three articulations points offset by 120°, by means of which one ele-
vation servo (front or rear) and two roll servos (to the left and right
side) are connected. All of the three servos of the swashplate shift
axially for pitch control.
Rotor direction
Swashplate
right
–––
M.Stop +150%–100%
Pitch min back
Autorotation
–––
1 Servo
STO
