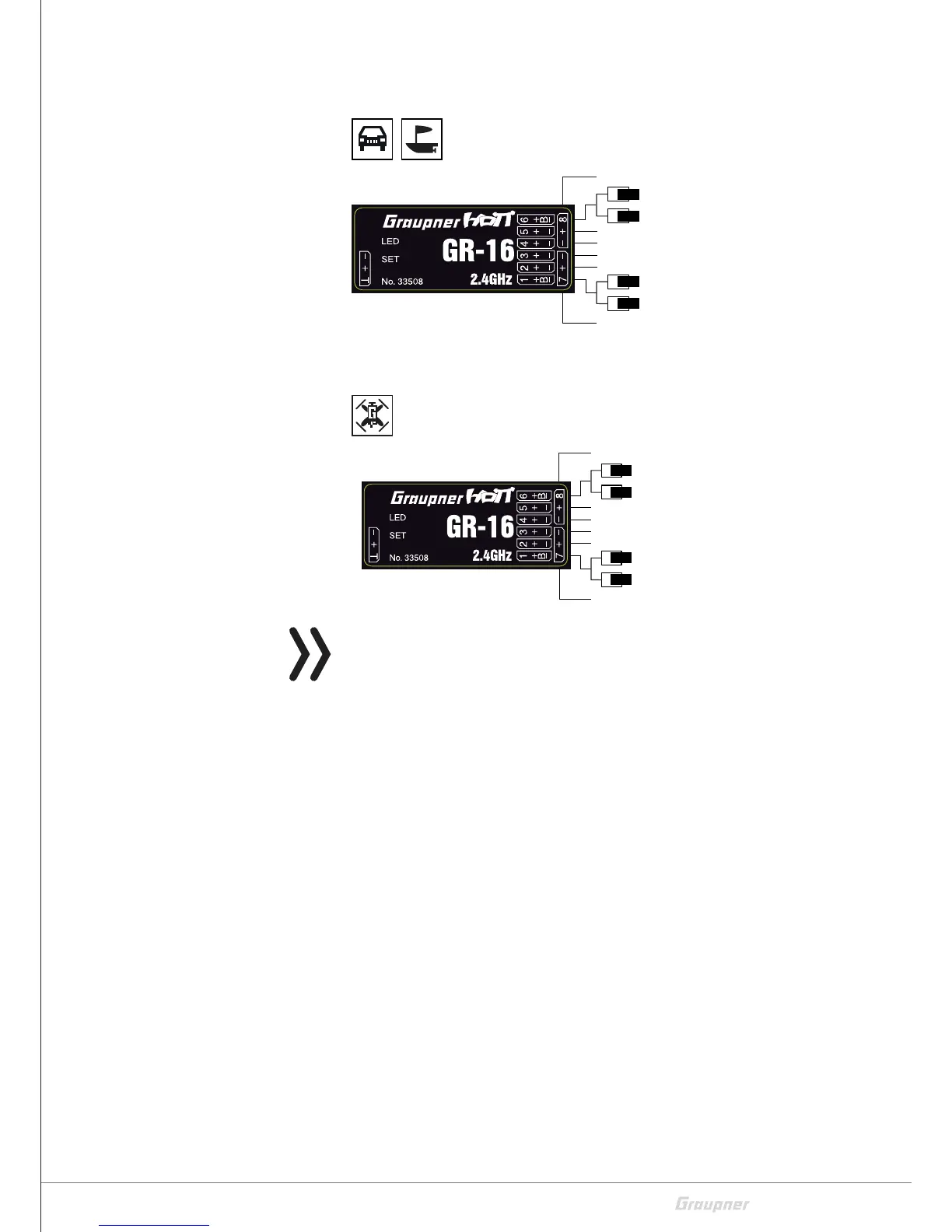

Land and water models
Motor servo or ESC
(forward/backward)
free or special function
free or special function
free or special function
steering (left/right)
free or special function
free or special function
free or special function
free or special function
receiver power supply
Copter
Motor/Pitch (climb/sink)
free or special function
free or special function
Yaw
Roll
Nick
free or special function
free or special function
receiver power supply
receiver power supply
Note
Completely independent from the "classic" receiver configuration
shown here, the connection notes in the installation instructions for
the RC components involved must always be observed. Modern fly-
ght control of copters, for example, often now have a sum signal
input for PPM (SUMO for Graupner HoTT receivers) or SUMD (dig-
ital sum signal), so that a single connection cable is sufficient to
establish a connection. However, the desired sum signal must be
selected in the receiver as described at the end of the "Setting &
data view" section of the "Telemetry" menu.
