GRAUPNER mz-12 PRO User Manual

68 / 116
S1002.PRO_mz12PRO_Teil2_V1sh

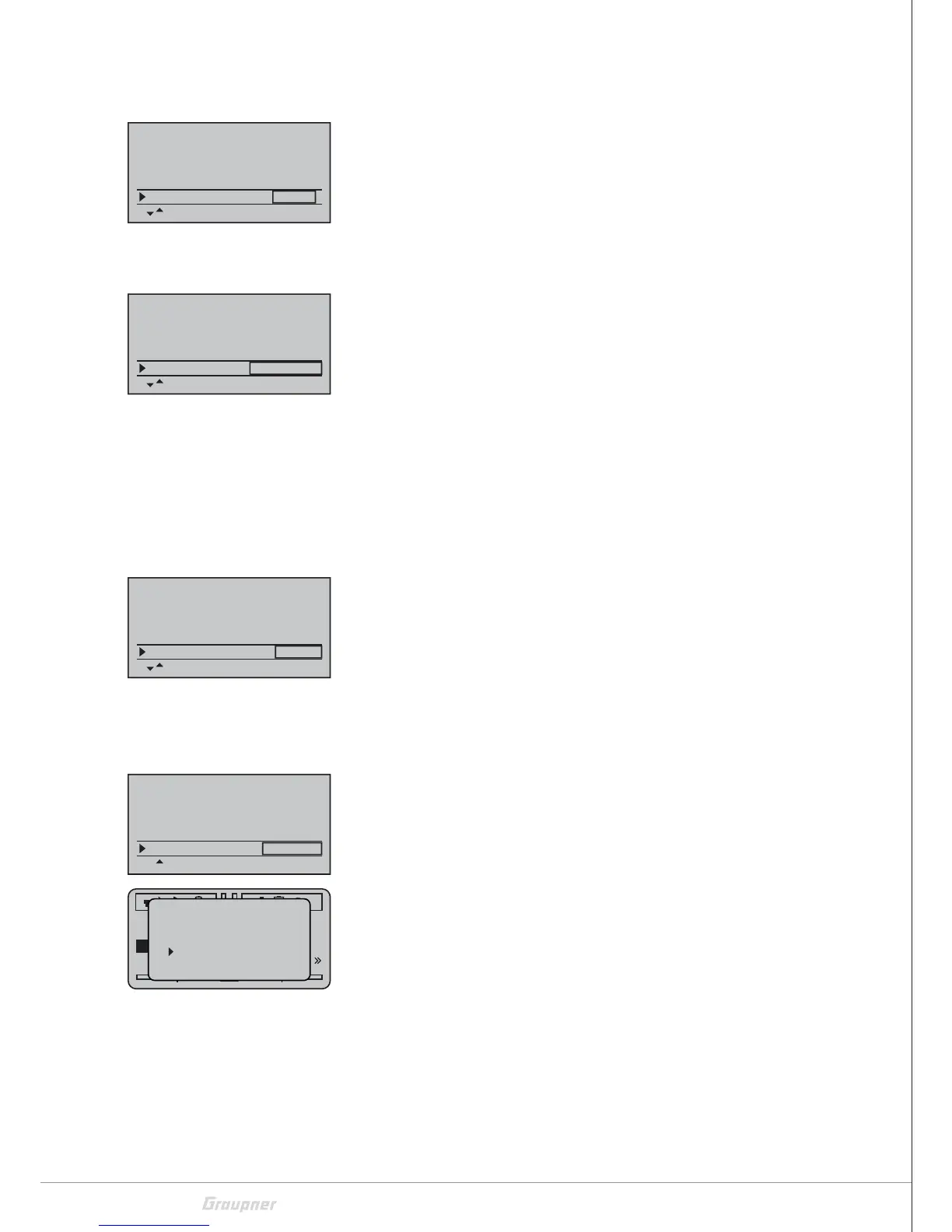

Rear socket
In this line you can select what the 3.5 mm jack socket on the rear of
the transmitter is currently going to be used for:
• "Ear" for connecting an earphone.
• "DSC" to connect a Teacher/Pupil cable or to connect flight sim-
ulators.
DATA select
This line selects the output signal from the DATA jack:
• "Telemetry" to output the telemetry signals for a Smartbox No.
33700.
• "Bluetooth" to output the telemetry signals through the optional
Bluetooth module No. S8351.
This module allows a Bluetooth connection to a suitable Android
smartphone or tablet, or the optional OSD module No. 33641.
With the help of the "Graupner HoTT Viewer App for Android",
the Android devices can receive telemetry data, display them
and also send out warning messages.
DSC socket
Selecting a specific PPM mode defines the number of the maximum
control channels available on the DSC connector. It have the follow-
ing meanings:
• PPM10: The output signal includes the control signals 1 - 5.
• PPM12: The output signal includes the control signals 1 - 6.
• PPM24: The output signal includes the control signals 1 - 12.
USB joystick
This setting is intended for the operation of the transmitter as a "joy-
stick" with a PC flight simulator through the micro-USB port of the
transmitter.
If a USB cable is plugged into the micro-USB socket of the mz-12 Pro
HoTT transmitter and this is switched on, a corresponding selection
window is displayed in the transmitter display for about 10 seconds.
Once "JOYSTICK" has been selected with the selection buttons of the
transmitter and confirmed with the ENT button, or the window has
then automatically closed in this display, the connected PC recog-
nizes the transmitter as a joystick.
The standard setting suitable for the most flight simulators is 0% to

The adjustment range is from -100 to +100.
Voice volume
Back port
RF Region
3
Ear
Europe
Signal volume
3
Display light
always
Voice volume
Back port
DATA sel.
RF Region
3
Ear
Europe
Telemetry
Signal volume
3
Voice volume
Back port
DATA sel.
DSC output
3
Ear
PPM10
Telemetry
Signal volume
3
USB joystick
rücks. Buchse
DATA sel.
DSC output
0~100
Ear
PPM10
Telemetry
Signal volume
3
M-01
0:12h
Stop
Flug
0:00
0:00
5.5V
5.5V
NR
5.1V
GRAUBELE
normal
USB connected 7
PC COM Port
JOYSTICK
Battery charge
