S1002.PRO_mz12PRO_Teil2_V1sh

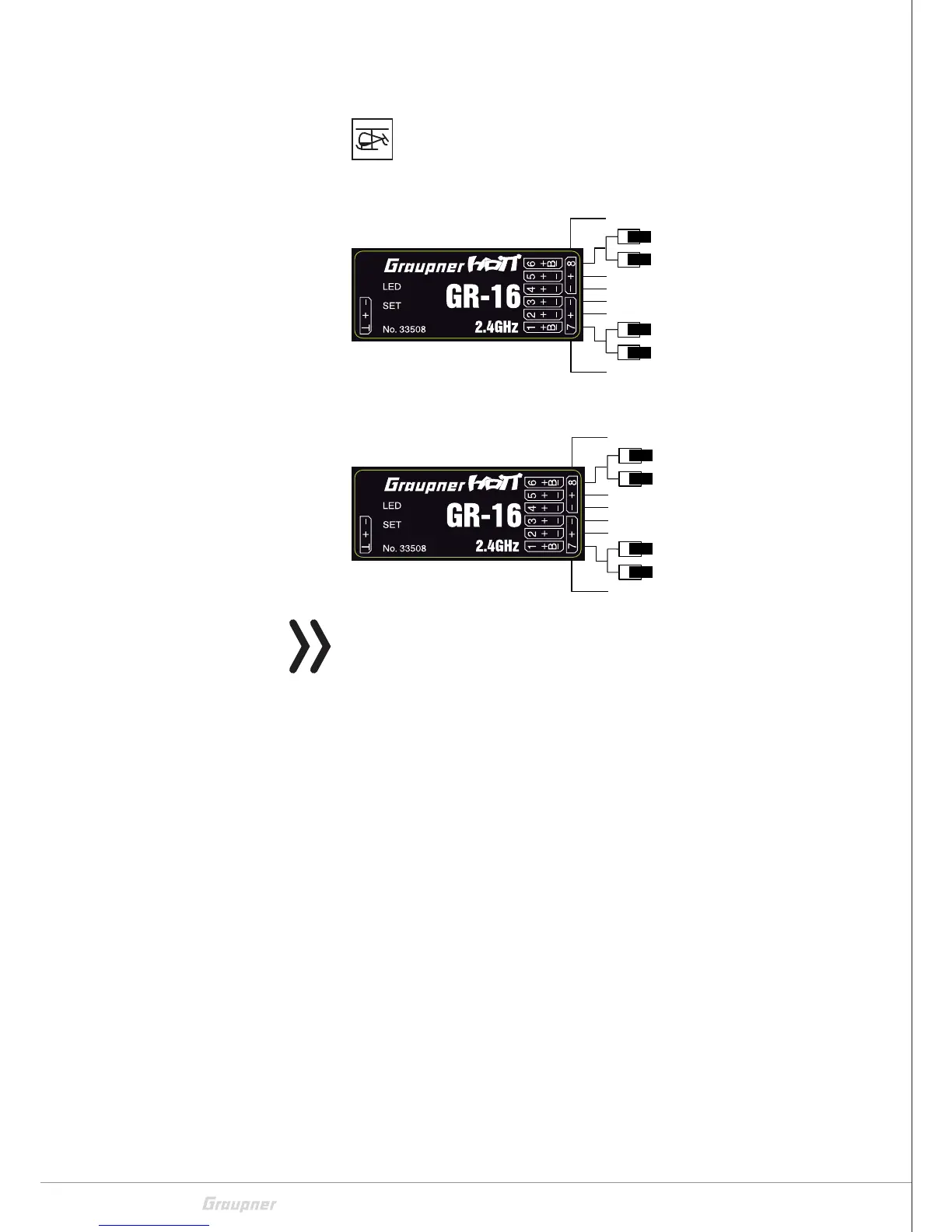

Helicopter models
with 1 to 3 swashplate servos
servo Pitch or Roll 2
or Nick 2
gyro action
Throttle servo or governor
tail servo (gyro system)
servo 1 Roll
servo 1 Nick
free or special function
free or speed controller
receiver power supply
receiver power supply
with 4 swashplate servos
servo Roll 2
gyro action
throttle servo or governor
tail servo (gyro system)
servo Roll 1
servo Nick 1
servo Nick 2
free or speed controller
receiver power supply
receiver power supply
Note
Completely independent from the "classic" receiver configuration
shown here, the connection notes in the installation instructions for
the RC components involved must always be observed. Modern fly-
barless systems, for example, often now have a sum signal input for
PPM (SUMO for Graupner HoTT receivers) or SUMD (digital sum
signal), so that a single connection cable is sufficient to establish a
connection. However, the desired sum signal must be selected in
the receiver as described at the end of the "Setting & data view"
section of the "Telemetry" menu.
