Wing Mix
Select the desired menu using the selection buttons and then press
the ENT button to enter the setup page of the menu.
Push the ESC key to stop the procedure.

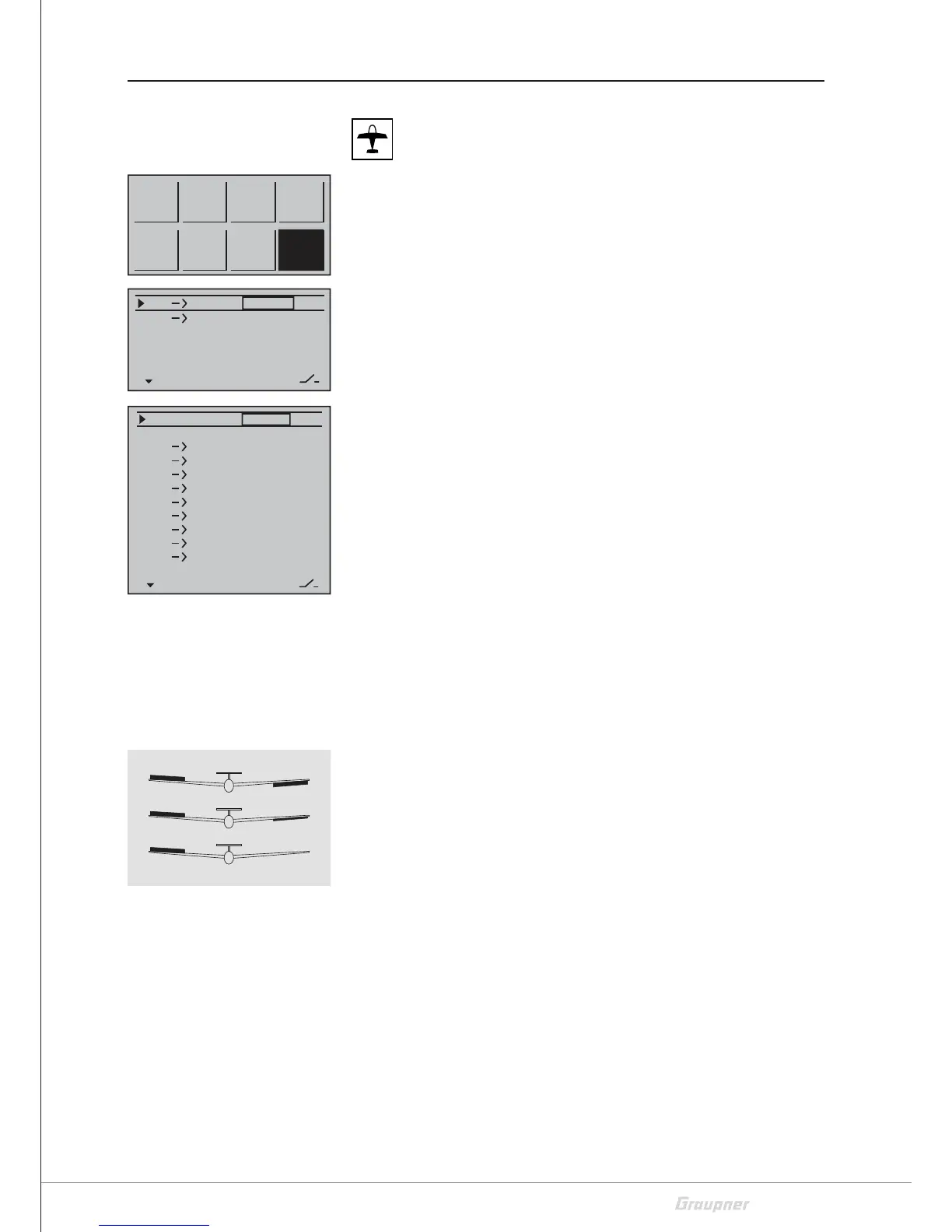

The options available in the »Wing mix« menu are based exclusively
on the number of aileron and flap servos set in the »Model type«
menu: For example, only one option is available for the setting "1AI",
whereas for the "2AI 2FL" type all twelve options are available, see
pictures on the left.
Programming step-by-step
1. Select the desired line using the selection keys.
2. Push the ENT key.
3. Set the desired value.
Simultaneous pushing the left and the right selection will
restore a changed value back to 0% in an inverted represented
value field.
4. Push the ENT key.
5. Eventually use the selection key to change to the column above
the switch symbol.
6. Push the ENT key.
7. Assigning the desired switch.
8. Use the remaining values in the same way.
Aile diff.
An aileron deflected downward generates greater resistance for
aerodynamic reasons than one deflected upward. This unwanted
collateral effect, referred to as a "negative reversing torque", is com-
pensated by the use of a corresponding aileron differentiation. In
this case, the path of the aileron, which moves downwards, is corre-
spondingly reduced.
The adjustment range of ±100% allows you to adjust different deflec-
tion on the right side independent of the direction of rotation of the
aileron servos. 0% corresponds to normal deflection (no differentia-
tion), and -100% or +100% corresponds to the split function.
FLAP diff.
Analogously to the aileron differentiation, the flap differentiation
causes the respective deflection downwards of the aileron function
of the flaps, which is mixed via the mixer "AI => FL", to be reduced
as well.
The adjustment range of ±100% allows you to adjust different deflec-
tion on the right side independent of the direction of rotation of the
Model
memory
D/R
Expo
Tx
setting
Ctl
setting
Servo
setting
Wing
mix
M.Type
Phase
C1
curve
AI
RU
0%
0%
–––
–––
C1 EL
AI-Di.
FL-Di.
AI
AI
RU
FL
0%
C1
C1
C1
EL
FL
AI
EL
EL
FL
FL
AI
EL
FL
AI
0%
0%
0%
0%
0%
0%
0%
0%
0%
0%
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Di.-Red. 0%
0% (normal)
50% (dierential)
100% (Split)
