MIDI STRUCTURE
 e SKX has “Keyboard Channels” to transmit playing information of the keyboards
and “External Zone Channels” to control external MIDI equipment on the key-
boards.

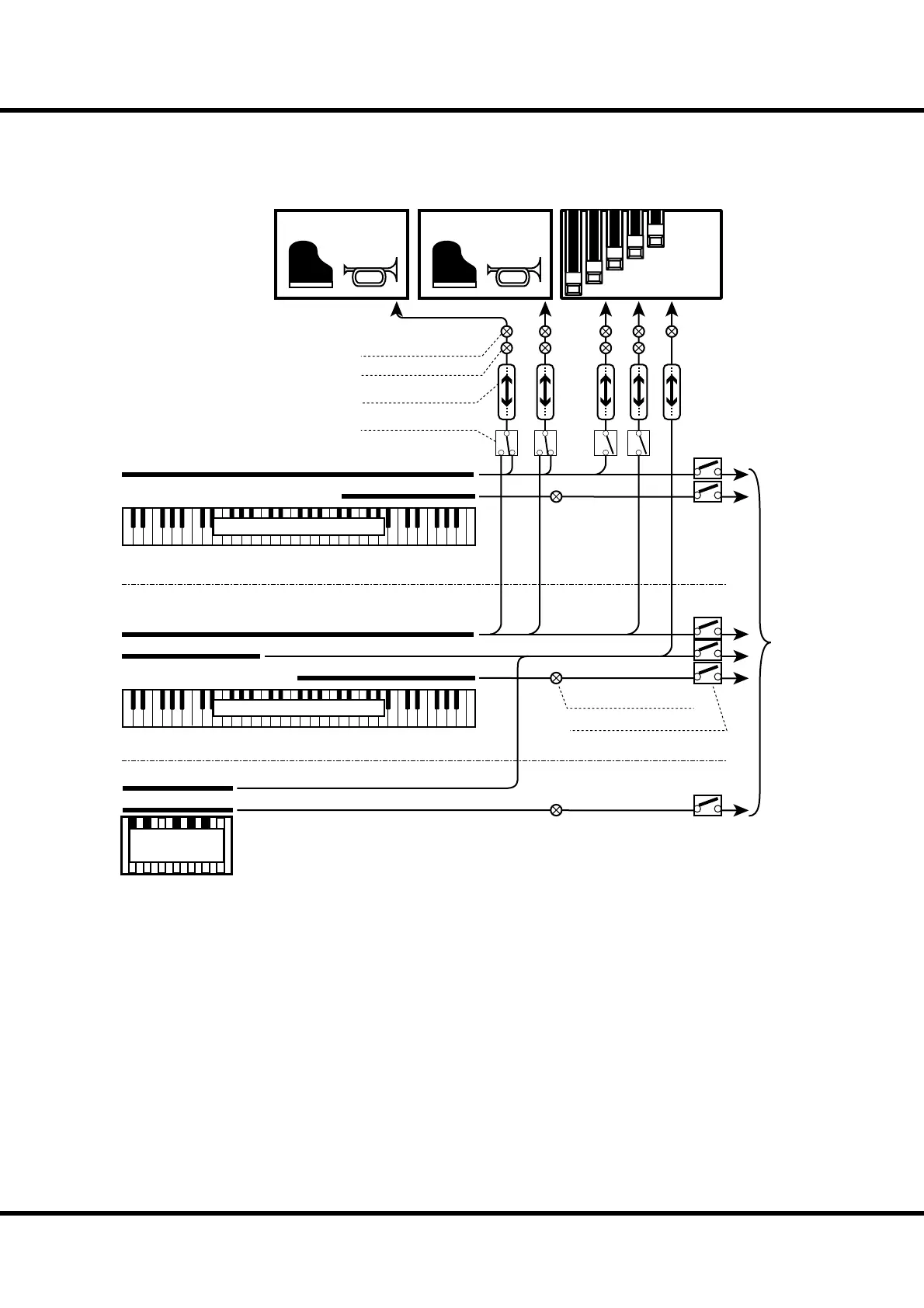

Map of
the MIDI
structure
Organ
Section
Extra Voice
Section 2
Extra Voice
Section 1
Upper Keyboard
Lower Keyboard
MIDI in (Pedal)
Keyboard
On/Off & MIDI Channel
Allocate
Key Range
Octave Shift (button)
Octave Shift (part)
Octave Shift (Ex Zone)
ExZone 3
Pedal
ExZone 1
Upper
Manual Bass
Lower
Upper Keyboard ch.
Lower Keyboard ch.
Pedal Keyboard ch.
to MIDI OUT
ExZone 2 if allocated on the Lower
if allocated on the Pedal
