DRAWBAR REGISTRATION PATTERNS
Regardless of the size of a pipe organ or its number of stops, all of its voices are re-
lated to four basic families of tone.  e four basic families - Flute, Reed, String and
Diapason - can be quickly set up on the Drawbars by relating a pattern or shape to
each family.

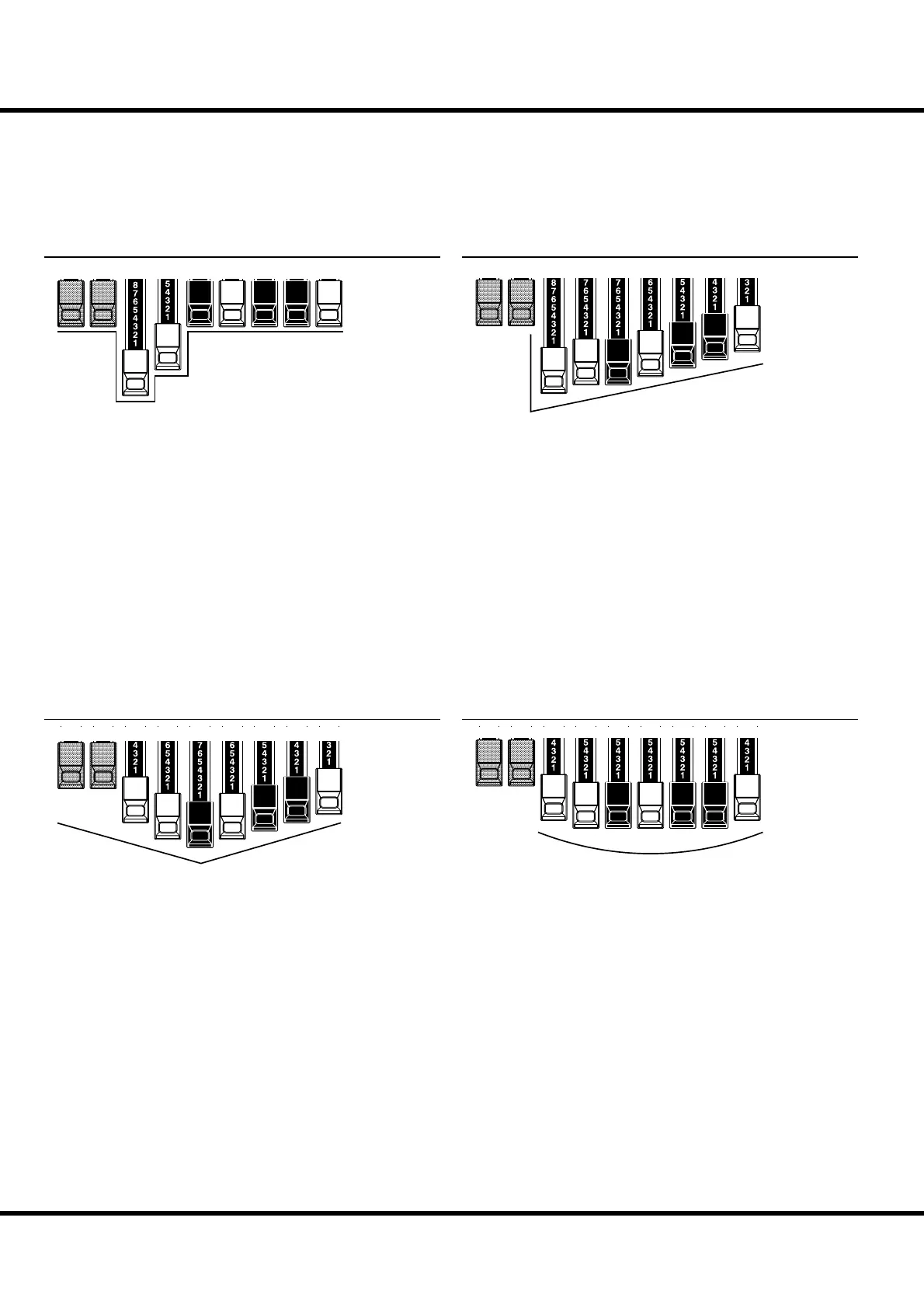

Flute family (2 step pattern) Diapason family (check mark pattern)
Reed family (triangle pattern) String family (bow pattern)
5
1
/3'
16' 8' 4'
2
2
/3'
2'
1
3
/5'1
1
/3'
1'
5
1
/3'
16' 8' 4'
2
2
/3'
2'
1
3
/5'1
1
/3'
1'
Accompaniment Flute 8´ I .............. 00 8460 000
