Skx
Owner’s Manual
98

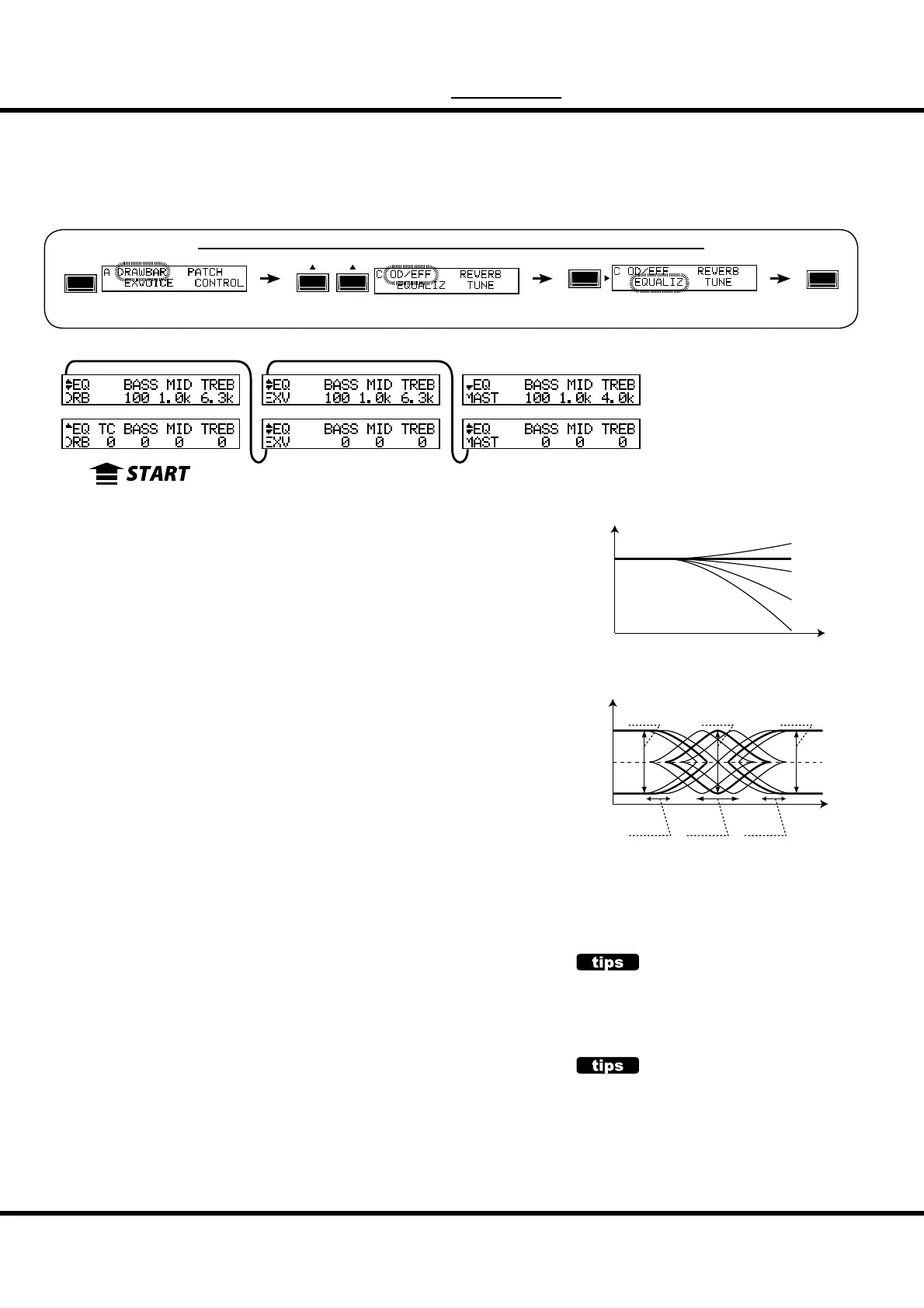

EQUALIZ ( Equalizer)
In this mode, you adjust the settings for the Equalizer.
An Equalizer is used to adjust the tonal quality. e SKX’s built-in Equalizer consists
of 3 bands and a recreation of the unique “tone” control that was part of the vintage
B-3/C-3. e Bass and Treble bands are handled by “shelf” equalizers, and the Mid
band is handled by parametric control.
To locate this mode:
ORGAN SECTION
❶ TONE CONTROL (P)
is is a simulated original B-3/C-3 TONE CONTROL. Its response is unique, but
its basic response is to gently cut the overall treble above 200Hz.
e setting range is -9 to +9, and it becomes neutral when set at “0”. “-1” corre-
sponds to the maximum of the original B-3/C-3 tone control, “-5”, the middle, “-9”,
the minimum. e tone control found on the original B-3/C-3, was only available at
“minus” settings, but here you are able to “plus” the settings as well.
ORGAN SECTION, EXTRA VOICE SECTION, MASTER
❷❽⓮ GAIN - BASS (P) (P) (G)
❸❾⓯ GAIN - MIDDLE (P) (P) (G)
❹❿⓰ GAIN - TREBLE (P) (P) (G)
Adjusts the Boost/Cut of Bass, Mid-range and Treble respectively.
e setting range is -9 to +9. It is at at 0.
❺⓫⓱ FREQUENCY - BASS (P) (P) (G)
❻⓬⓲ FREQUENCY - MIDDLE (P) (P) (G)
❼⓭⓳ FREQUENCY - TREBLE (P) (P) (G)
Adjusts the center frequency (MIDDLE) / turnover frequency (BASS, TREBLE) to
be attenuated.
e setting range is 20Hz - 200Hz for BASS, 250Hz - 3.1kHz for MIDDLE,
4.0kHz - 8.0kHz for TREBLE.
NOTE: The sound may distort if gains are raised too high. Adjust accordingly.
NOTE: The parameter with (P) indicated is a Patch parameter, and is recorded to each Patch.
(G) indicates “Grobal parameter”, which is recorded upon being set, and is common
with each Patch.
Frequency
Gain
TC
100Hz
0dB
+3dB
-15dB
-9dB
-3dB
1kHz 10kHz
0
-1
-5
-9
+9
TURNOVER FREQUENCY
The MIDDLE of this equalizer controls a point of fre-
quency. This is called center frequency. The BASS
(or TREBLE) controls lower (or higher) than speci-
ed frequency. This is called turnover frequency.
PATCH PARAMETERS
The equalizer for Organ section and Extra Voice
sections are designed to be a Patch parameter (P)
to be actively utilized as a part of sound making
parameter.
Use the Master Equalizer for tonal compensation
to match the performance stage (G).
See “Function mode” (P. 66) for operation details.
MENU/
EXIT
ENTER
Frequency
Gain
0dB
+9dB
-9dB
BASS
Gain
TREBLE
Gain
TREBLE
Freq.
BASS
Freq.
20 - 200 4k - 8k
MIDDLE
Gain
MIDDLE
Freq.
250 - 3.1k
Diagram of Tone Control
Diagram of 3-bands Equalizer
❶
❷
❸
❹
❺
❻
❼
❽
❾
❿
⓫
⓬
⓭
⓮
⓯
⓰
⓱
⓲
⓳
