Skx
Owners Manual
16
BASIC HOOK-UP

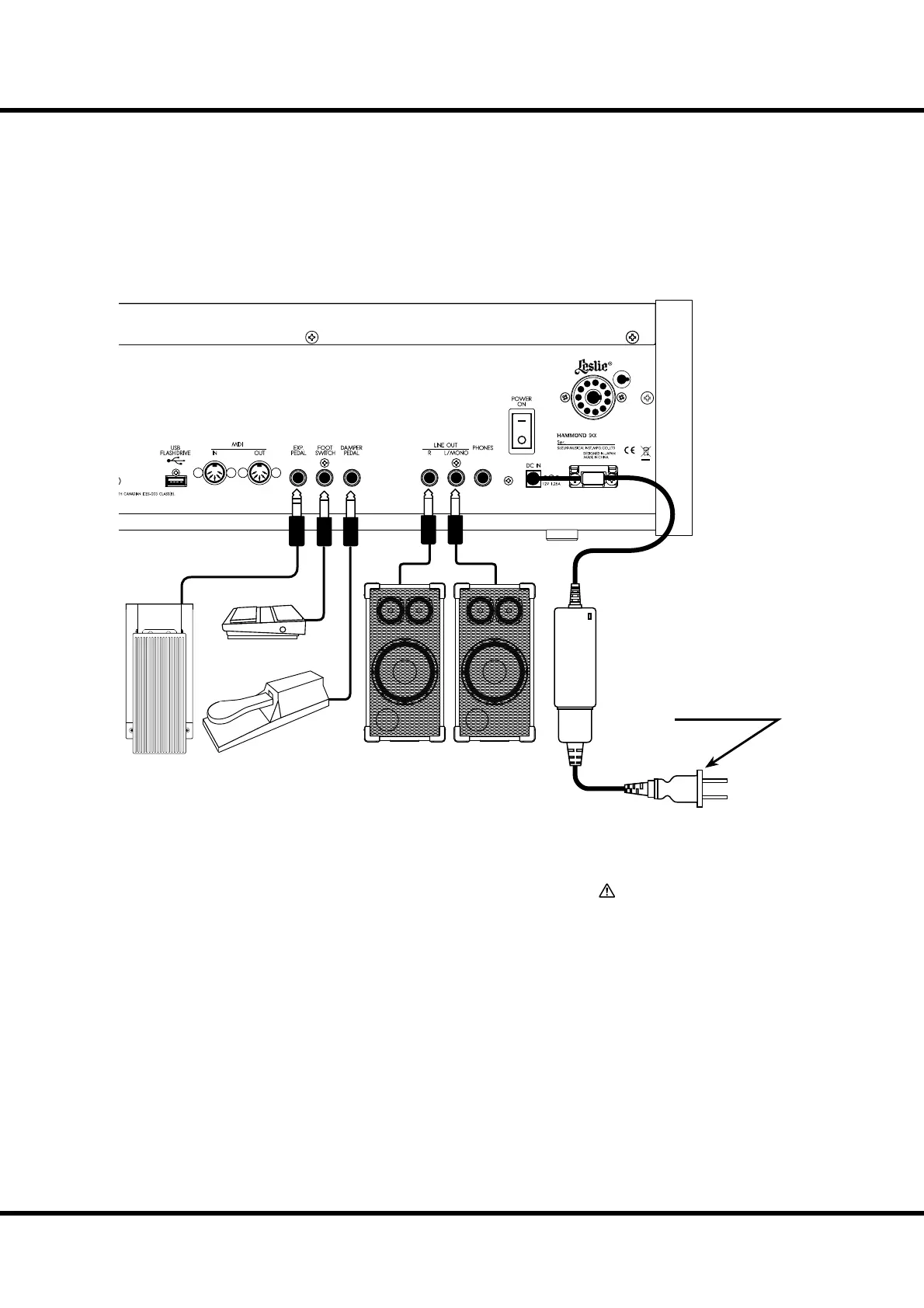

Connect audio cables and accessories as shown below.
e SKX is not self-contained - an external ampli er/speaker system is required in
order to hear the sound. However, if you connect a set of stereo headphones to the
PHONES jack, you can hear the sound through the headphones even if an external
ampli er is not connected.
NOTE: Make sure both the instrument and ampli er are “OFF” before connecting ampli ers
or headphones.
CAUTION
Do not place this unit in direct sun
light, near heat sources, or in a hot
location.
11 P I N
e Expression Pedal and Foot Switch parameters must be set properly. For details
see [CONTROL]. (P. 76)
Set Audio Mode either stereo or mono connection. (P. 102)
to AC outlet
Expression Pedal
EXP-50J (optional)
Foot Switch
FS-9H (optional)
AC adaptor
AD3-1250-2P (included)
Powered Speakers
(optional)
Damper Pedal
VFP1 (optional)
