Hammond SKX - Drawbars (Pipe)


Skx
Owner’s Manual
46
DRAWBARS ( PIPE)
Principal
16´
Principal
8´
Melodia
8´
Rohr
Flute
8´
Prestant
4´
Flute
4´
Super
Octave
2´
Mixture
IV
Trom-
pette
8´
Bourdon
16´
Open
Diapason
8´
Gedeckt
8´
Sub Bass 16´
+
Gedeckt 8´
Principal Chorus
+
Mixture IV
Viole
Celeste
II
Octave
4´
Flauto
Dolce
4´
Flute
2´
Mixture
III
Hautbois
8´
UPPER:
LOWER:
PEDAL:

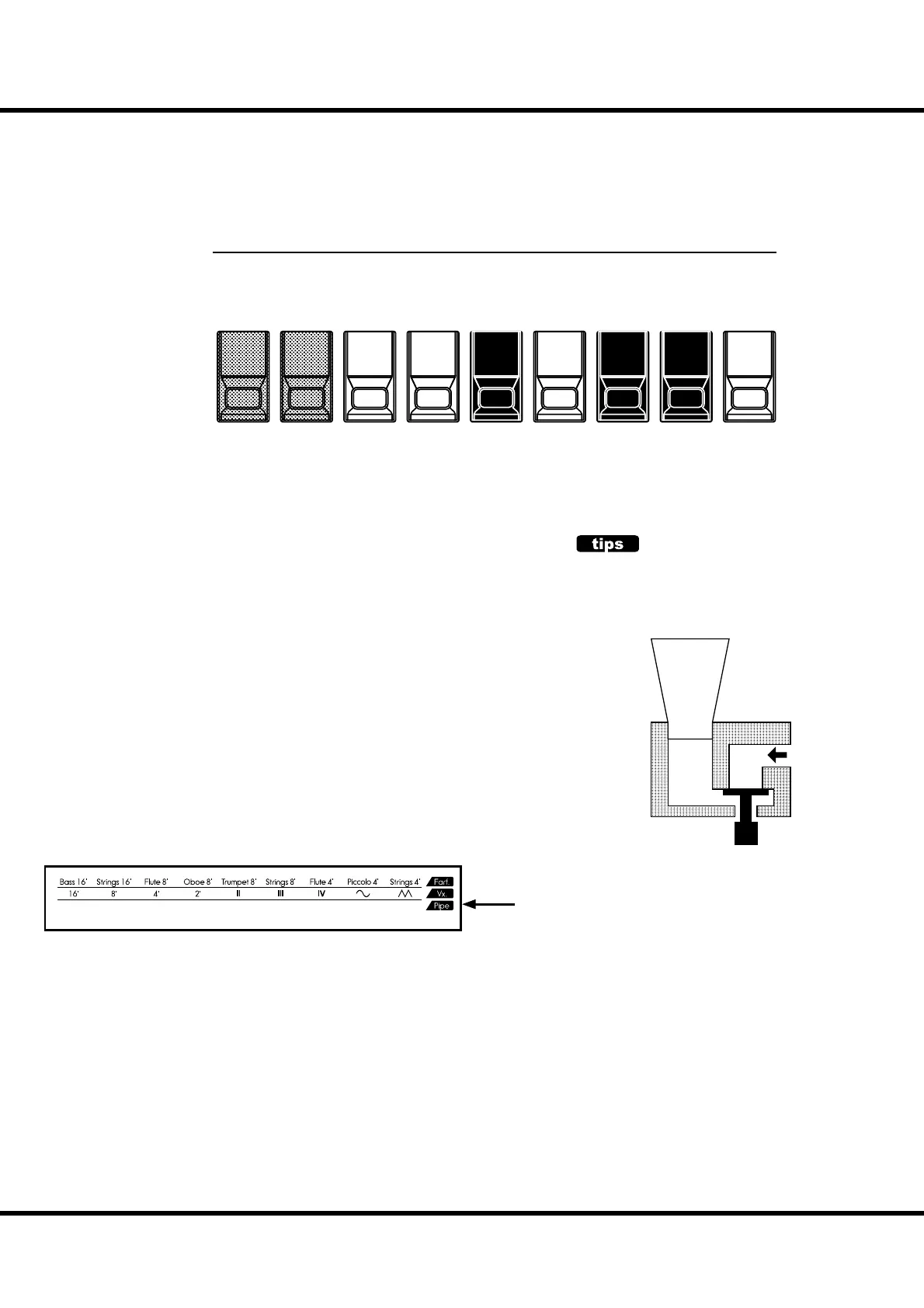

When using the Pipe Organ Type, the stops are registered through the Drawbars,
and follow the classic organ layout left to right as follows: Flue, Mixture and Reed.
On the UPPER and LOWER parts, each Drawbar corresponds with a stop of the
pipe organ.
On the PEDAL part, two stops sound with one Drawbar.
NOTE: When “Pipe” type is activated, the Drawbars will function similar to drawstops on a
traditional pipe organ - pulling a Drawbar “out” will turn the associated Pipe Voice
“ON” while pushing the Drawbar “in” will turn the Pipe Voice “OFF.” The Pipe Voices
do not have gradations of volume - they are either “ON” or “OFF.”
NOTE: The e ects - Vibrato & Chorus, Leslie, Overdrive - are not available on the Pipe type
voices.
If the Organ Type is Pipe, refer to the “Pipe” row on the other side of the Drawbars
for the correspondence between each bar and the footage.
HARMONIC DRAWBARS™ - continued
Bourdon
16'
OpenDiap
8'
Gedeckt
8'
VoixClst
II
Mixture
III
Octave
4'
Flute Dolce
4'
Hautbois
8'
Flute
2'
STOP
A single voice or sound on a pipe organ is re-
ferred to as a “Stop” due to the fact that air  ow
is “stopped” (or started) by manipulating the in-
dividual knobs or tablets which turn sounds “ON”
or “OFF”.
