17
Hook-Up
CONNECTING THE LESLIE SPEAKER
An 11-pin type Leslie speaker can be directly connected to SKX.
NOTE: Switch OFF before connecting the Leslie speaker.
BASIC CONNECTION
USING 3 CHANNEL TYPE (SUCH AS 2101/mk2)
1. Connect the Leslie Speaker and the Leslie 11-PIN socket on the SKX with the
exclusive 11-pin Leslie cable (optional LC-11-7M, not included).
2. Turn on the power, and set the EXT. LESLIE CH parameter at “3”. (P. 84)
3. Make the setting of Tone Wheel organ.
4. Switch “ON” the [BYPASS] button, set the [STATIONARY VOLUME] of the
Leslie Speaker at desired volume.
5. Repeat “ON/OFF” the [BYPASS] button with playing the keyboard, set the
[ROTARY VOLUME] of the Leslie Speaker at same volume which you can hear.
USING SINGLE CHANNEL TYPE (SUCH AS 122XB, 3300/W)
1. Connect the Leslie Speaker and the Leslie 11-PIN socket on the SKX with the
exclusive 11-pin Leslie cable (optional LC-11-7M, not included).
2. Connect the audio equipment such as powered speakers and Line Out of the
SKX with audio cable.
3. Turn on the power, and set the EXT. LESLIE CH parameter at “1”. (P. 84)
4. Make the setting of Tone Wheel organ.
5. Switch “ON” the [BYPASS] button, set the audio equipment at desired volume.
6. Repeat “ON/OFF” the [BYPASS] button with playing the keyboard, set the
[VOLUME] of the Leslie Speaker at same volume which you can hear.
MIDI CONTROL OF THE LESLIE SPEAKER
To control the parameters of the Leslie Speaker 2101/mk2 ( ne adjustment of the
Rotor speed or the rise time, etc.):
1. Connect the MIDI OUT of the SKX with the MIDI IN of the Leslie Speaker
with a MIDI cable.
2. Set the Keyboard channel - TX UPPER and the Leslie MIDI channel to the same
channel. (P. 113)
When the SKX detects that the Leslie Speaker is connected, the Leslie parameters
sent through MIDI from the SKX are switched from the SKX original to those for
the Leslie Speaker.
LESLIE SPEAKERS TO BE CON-
NECTED
The SKX is designed to connect with 3 channel Le-
slie speakers such as 2101/mk2. However, it is also
possible to connect 1 channel type Leslie speak-
ers such as 122XB, 3300/W sending the stationary
channels to the LINE OUT jacks independently. (P. 84)
LESLIE CHANNEL
3 channel type Leslie speakers are equipped with
a stereo speaker system, independent of the Rotor,
to provide stereo sound for the Extra Voices and
direct organ sounds.
A traditional single-channel Leslie speakers, such
as a #122 or #147 has no stationary speaker sys-
tem, thus requiring a separate ampli er/speaker
for the Extra Voices or direct organ sounds.

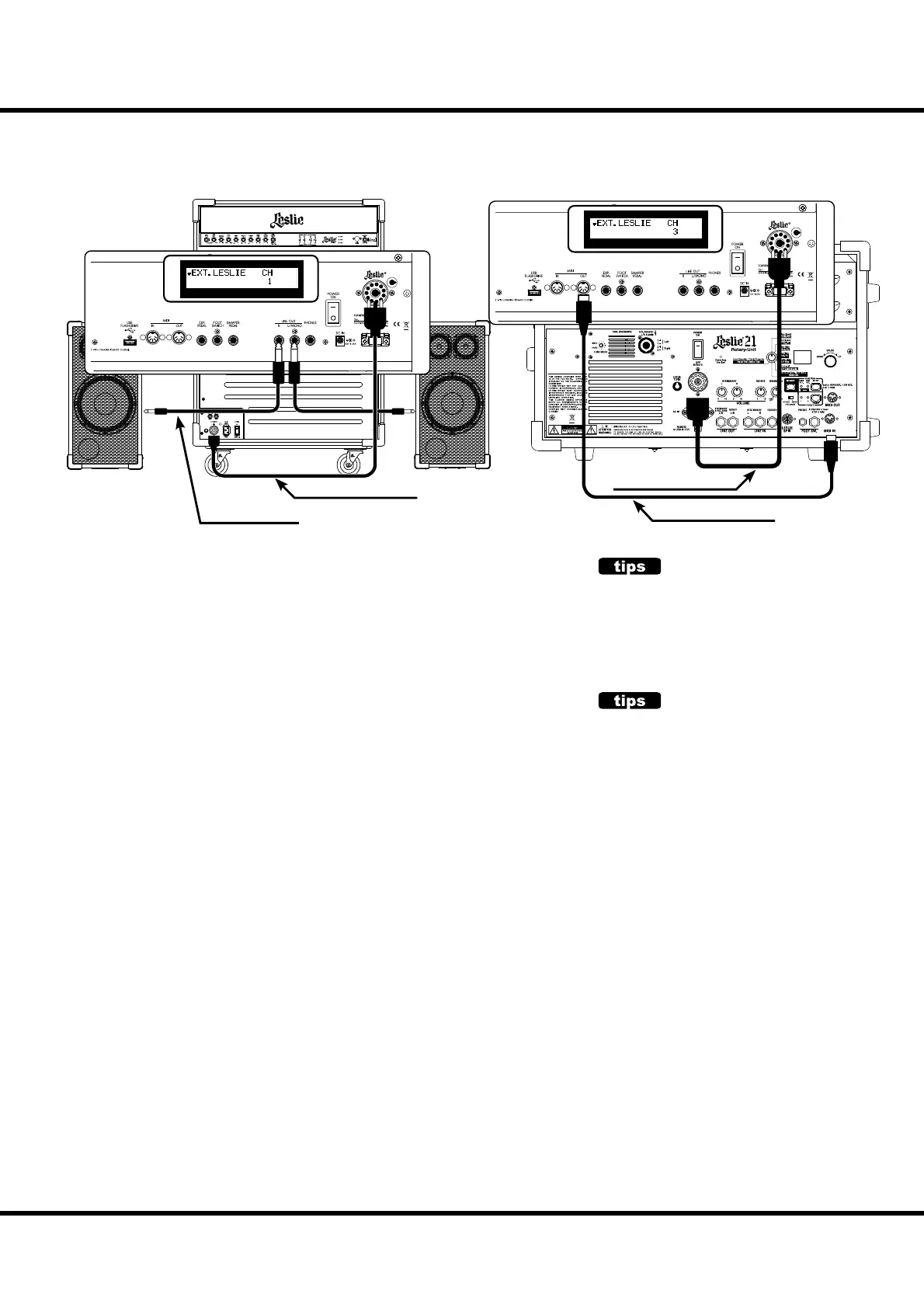

Connecting with single channel type Connecting with 3 channel type
11-pin Leslie Cable
MIDI Cable (Optional)
11-pin Leslie Cable
Phone Cable
To Next Page
