Skx
Owner’s Manual
86

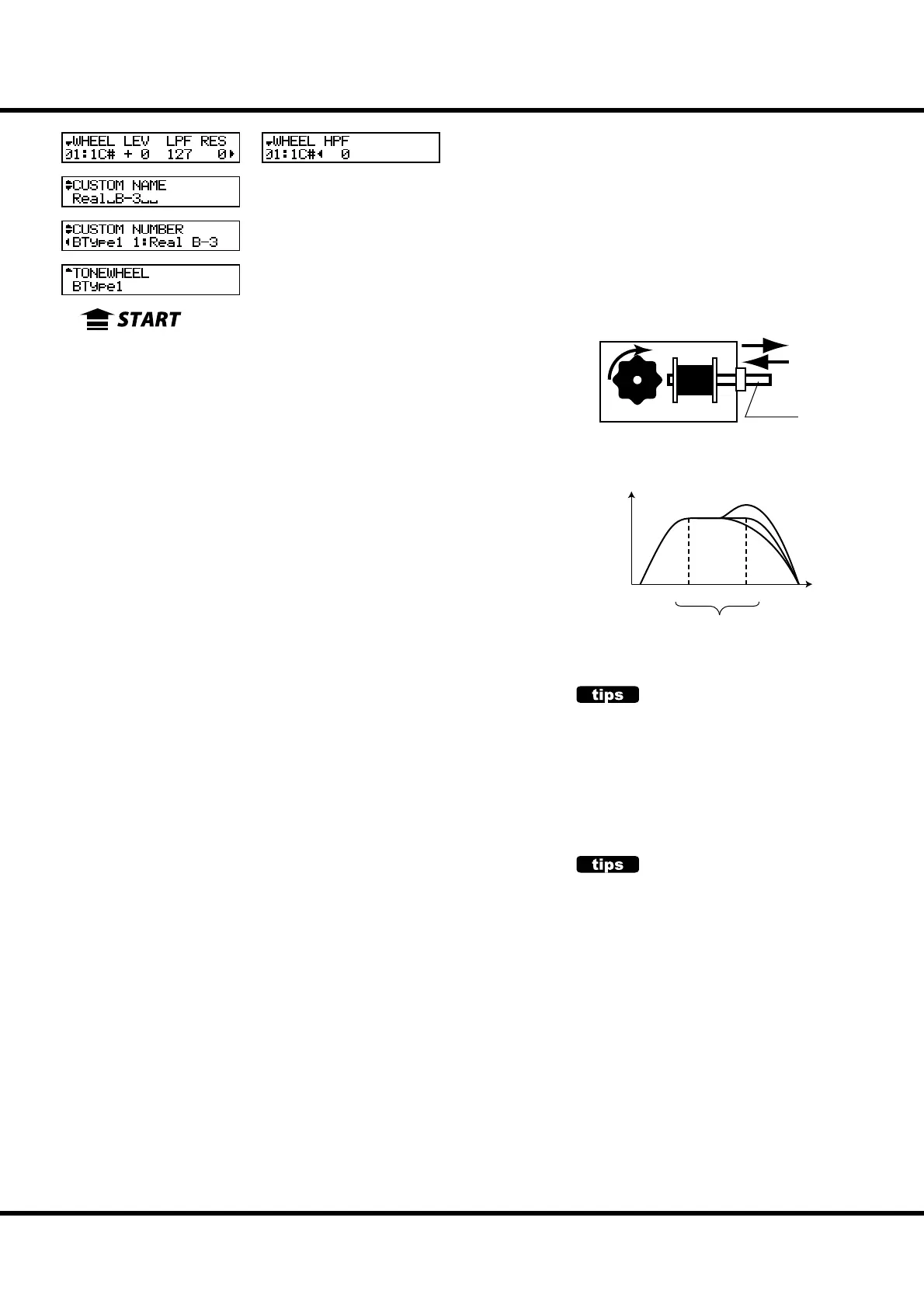

❺ LEVEL
is is for setting the volume of a virtual wheel.
e setting range is -20 to +2dB. If you increase the value, it gets louder.
❻ CUT OFF FREQUENCY - LPF
is is for setting the FREQUENCY to cut the TREBLE of a virtual wheel.
If you increase the value, a leakage noise is heard besides the original Tone Wheel
pitch.
If you decrease the value, the sound gets sweet and mild, as the treble is cut o .
e setting range is 0 - 127.
NOTE: If you decrease the value too low below the fundamental Tone Wheel pitch, the wheel
volume will be reduced.
❼ RESONANCE - LPF
is setting boosts or reduces the level of the Cut O Frequency - LPF (#6).
e setting range is 0 - 127. e higher value boosts treble, and lower values cut
treble smoothly.
❽ CUT OFF FREQUENCY - HPF
is is for setting the FREQUENCY to cut the BASS of this wheel.
If you decrease the value, a motor hum (= noise) is heard besides the original virtual
Tone Wheel sound.
e setting range is 0 - 127.
NOTE: If you increase the value too high above the original Tone Wheel pitch, the sound will
get “Thin”.
NOTE: The parameters 3 - 8 are the virtual Tone Wheel Parameters. If you perform the
recording operation of the next page, it works in common with the same virtual
Tone Wheel set of each Patch.
NOTE: After editing, you must record your changes to save them (Procedure following).
Tone-wheel
Coil
Magnet
Soft
Loud
Concept of the LEVEL ADJUSTMENT
Frequency
Loudness
Resonance
HPF LPF
Cut Off Frequency
LEAKAGE NOISE
In the vintage electro-mechanical Hammond
organs, sometimes the signal from adjacent
Tone Wheels would be picked up (or “leaked”)
along with the current Tone Wheel in play. This
“hash” noise, another Hammond anomaly original-
ly considered to be a defect grew to be an integral
part of the Hammond sound.
“Mellow” does not include the Leakage Noise.
DISTORTION
If you raise the Level and Resonance values too
much, it changes the gain in the sound engine and
may sometimes cause distortion, i.e. unpleasant
noise.
In such a case, please lower these values.
CUST. TW (Custom Tone-Wheels) - continued
❶
❷
❸
❹
❺
❻
❼
❽
To Next Page
