HBK GEN7iB GEN Series User Manual

GEN7iB
131
ACQUISITION AND STORAGE
ACQUISITION AND STORAGE
9

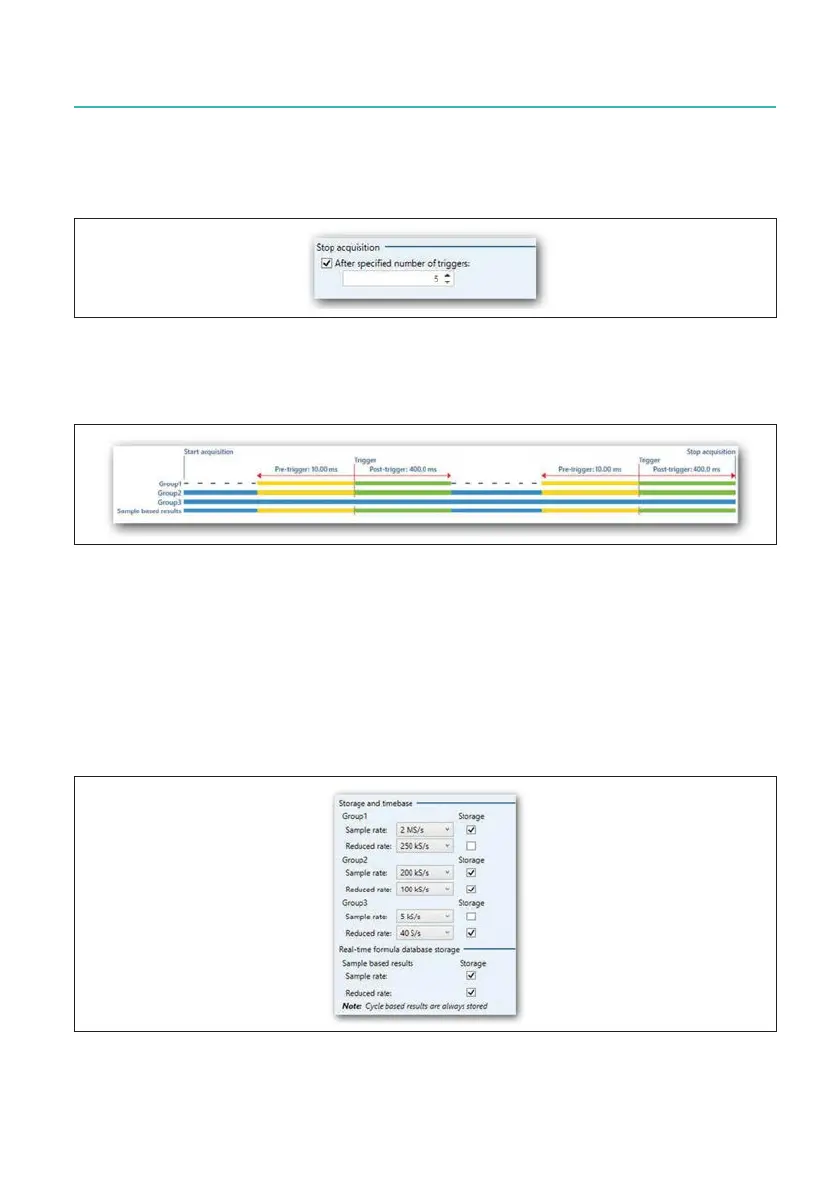

B Arecordingwithmultiplesweeps(inthiscase5triggersspecied),rstrecorded
to(veryfast)triggermemoryandafterthatcollectedinaPNRFleonadrive(see
Fig. 9.31).
Fig. 9.31 Stop acquisition
C The recording is combined with a continuous recording, everything stored in a
singlePNRFle(seeFig.9.32).
Fig. 9.32 On start of acquisition and wait for trigger to trigger memory rst - diagram
D The data is recorded and stored with the following values:
● Group 1 records sweep data at 2 MS/s without recording continuous data.
● Group 2 records sweep data at 200 kS/s and records continuous data at 100
kS/s.
● Group 3 only records continuous data at 40 S/s.
In Perception V7, the recording in Group2 was called “Dual rate recording” (see Fig. 9.33).
Fig. 9.33 Storage and timebase/Real-time formula database storage
