HBK GEN7iB GEN Series User Manual

GEN7iB
172
INTERFACE/CONTROLLER
INTERFACE/CONTROLLER
11
Network Interface selection in Perception
With the 10 Gbit Ethernet option installed and ready to go you will be provided with the
two following interfaces for selection:
● Optical 10 Gbit NIC1
● Optical 10 Gbit NIC2
In Perception these interfaces are available in the Settings menu > Mainframe Network
Setup see Fig. 11.22.

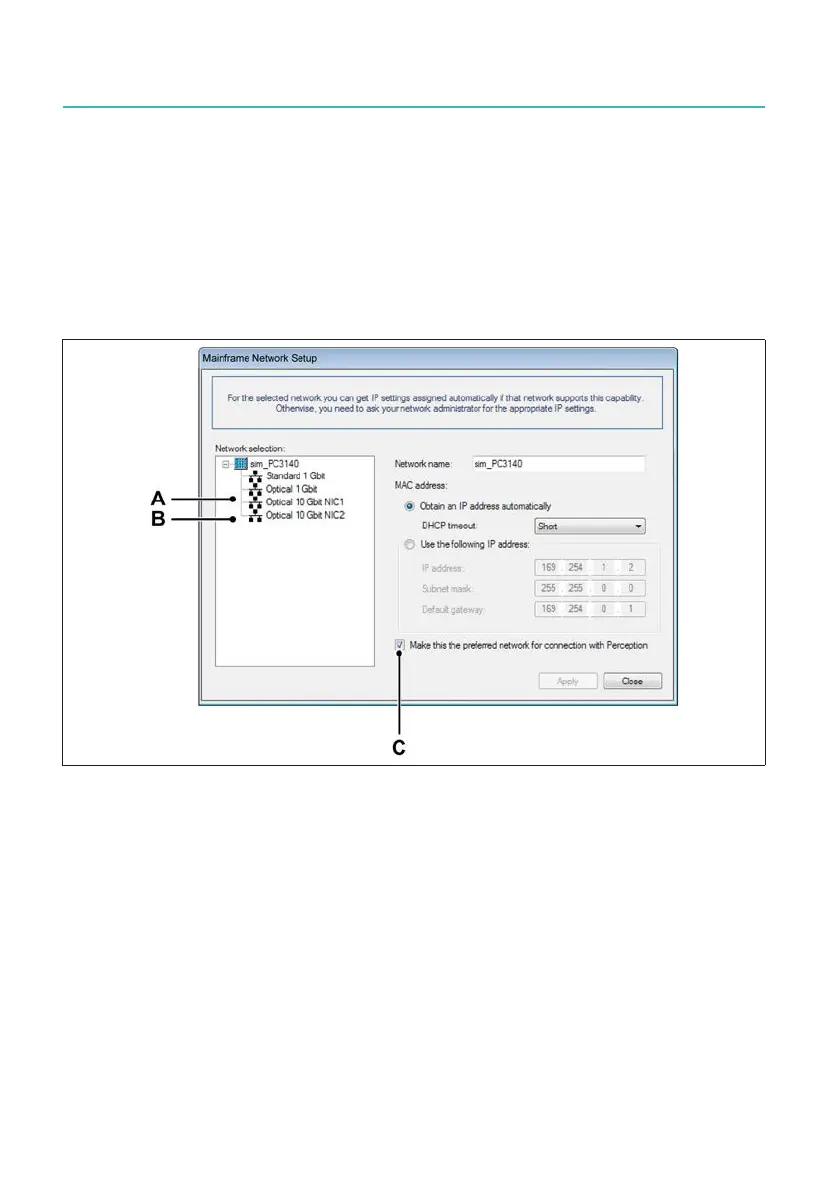

Fig. 11.22 Mainframe Network Setup
A Optical 10 Gbit NIC1
B Optical 10 Gbit NIC2
C Make this the preferred network for connection with Perception
In Mainframe Network SetupyoucandenetheIPaddressofeachindividualinterface
if needed.
IfPerceptionndsmorethanoneinterfaceforNetwork Selection as shown in
Fig. 11.22, then the interface that has a Check in the box Make this the preferred
network connection with Perception will be the interface used for communication with
Perception. For the 10 Gbit Ethernet card check the box for the Optical 10 Gbit NIC1 or 2.
Click Apply then Close when done.
