Connectors and cables
Do not use non-protected or non-shrouded connectors.

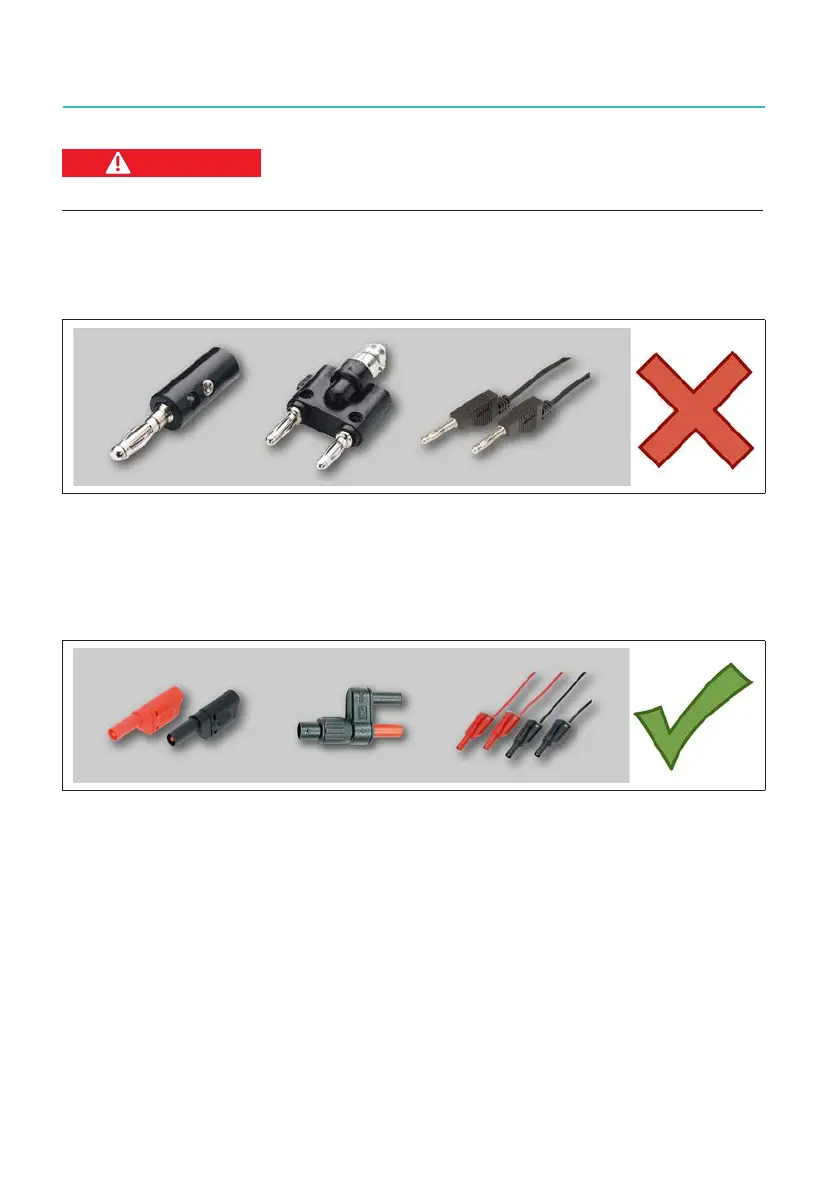

The following connectors are not safe to use with this card and must not be used (see
Fig. 12.34)
Fig. 12.34 Unsafe connectors
The inputs on the 1kV card are compatible with the following connectors and cables
(see Fig. 12.35). All cables used with the 1kV card must support 1000 V DC (or
1000 V AC peak) and 600 V CAT II. All required cables and connectors can be found in
thetheGN610B/GN611Bdatasheetspecications.
Fig. 12.35 Safe connectors
