GEN7iB
22
SAFETY MESSAGES
SAFETY MESSAGES
2
CAT IV: This category is for measurements directly connected to the source of a low
voltage mains installation. Measurements for this category are overcurrent protection
devices, ripple control units, etc. This category expects that there is a minimum of one
level of overcurrent protection between the transformer and connection point of the
measurement circuit. (See Fig. 2.1).

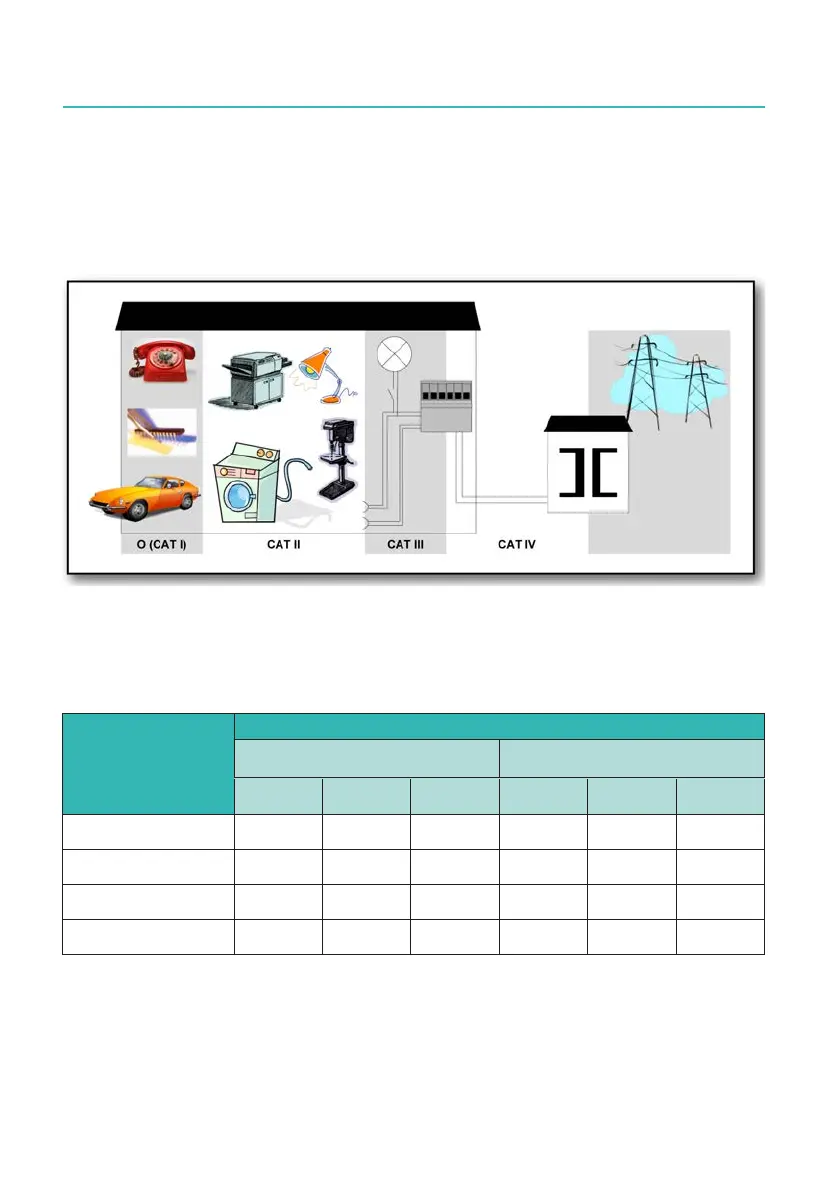

Fig. 2.1 Category indication in accordance with IEC 61010-2-030:2010
Example:Ameasurementdeviceisspeciedas600VCATII,maximuminputvoltage
1000 V DC.
Nominal Voltage
(V RMS or V DC)
IEC 61010-2-030:2010
5 sec. AC test (V RMS) Impulse test (V)
CAT II CAT III CAT IV CAT II CAT III CAT IV
≤150 840 1390 2210 1550 2500 4000
>150≤300 1390 2210 3310 2500 4000 6000
>300≤600 2210 3310 4260 4000 6000 8000
>600≤1000 3310 4260 6600 6000 8000 12000
Tab. 2.1 Insulation test voltages in accordance with IEC 61010-2-030:2010
