GEN series SYNCHRONIZATION METHODS

Perception setup

To perform time synchronized data acquisition using GEN series mainframes and the

G001B option it is necessary to further setup the system. This section explains how to

accomplish that using the HBM Perception Data Acquisition software.

Notice

This section assumes you are familiar with basic operations in Perception such as connect-

ing to data acquisition hardware and changing settings.

Notice

G001B requires usage of Perception version 7.20 or higher.

1. Start Perception

2. Connect to the mainframe.

3. Open the settings sheet and select advanced settings:

3a In the main menu select Settings.

3b In the Settings menu select Show Settings ►

3c In the submenu select:

● Basic

: this will show only the relevant settings

● Advanced

: this will show all settings

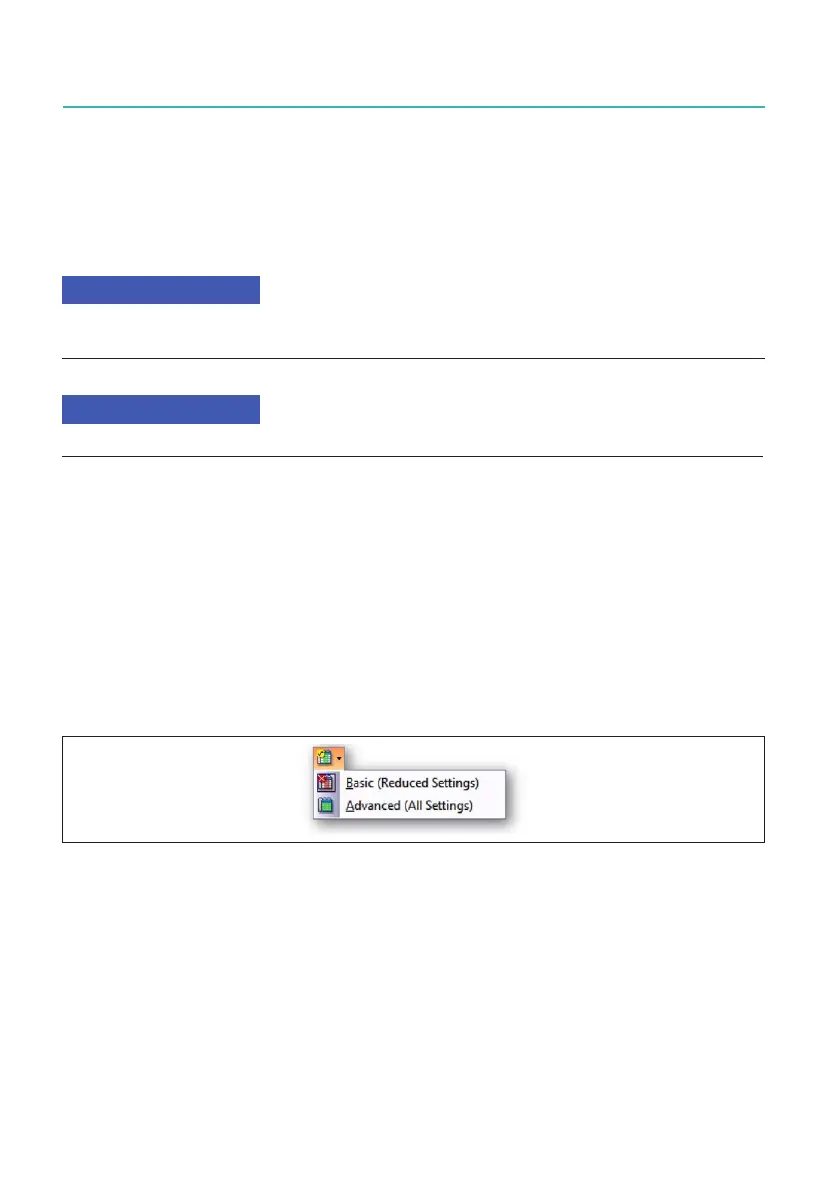

Fig. 14.39 Perception settings sheet options
