GEN7iB

325

GEN series SYNCHRONIZATION METHODS

4. In the Sync source column select the required IRIG option.

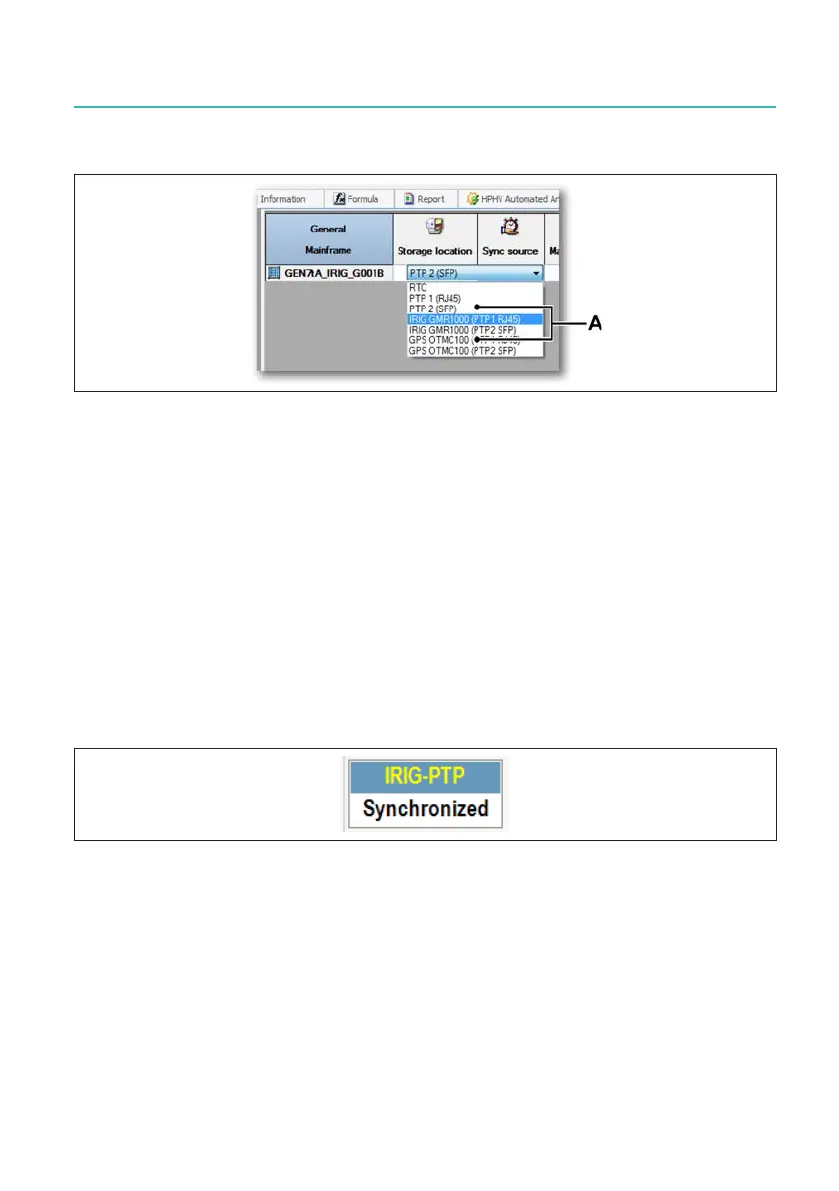

Fig. 14.40 PTP selection

A IRIG GMR1000 (PTP1 RJ45) and IRIG GMR1000 (PTP2 SFP) options

Change the synchronization source to IRIG GMR1000 (PTP1 RJ45).

5. TheacquisitionsystemtriestondandsynchronizetothePTPsignal.Thesystem

status goes through the following states:

● No signal

● Out of synchronization

● Synchronizing

● Coarse

(1)

● Synchronized

(1) Coarse may not be shown if synchronization occurs quickly.

Fig. 14.41 IRIG-PTP status - Synchronized

6. The GMR1000 does not act as a highly accurate PTP master in the network, there-

fore disable Use Accurate Master (see Fig. 14.42).
