Hitachi P-N23NA2 Service Manual

2 Unit installation
Optional accessories
SMGB0099 rev.0 - 12/2016
90

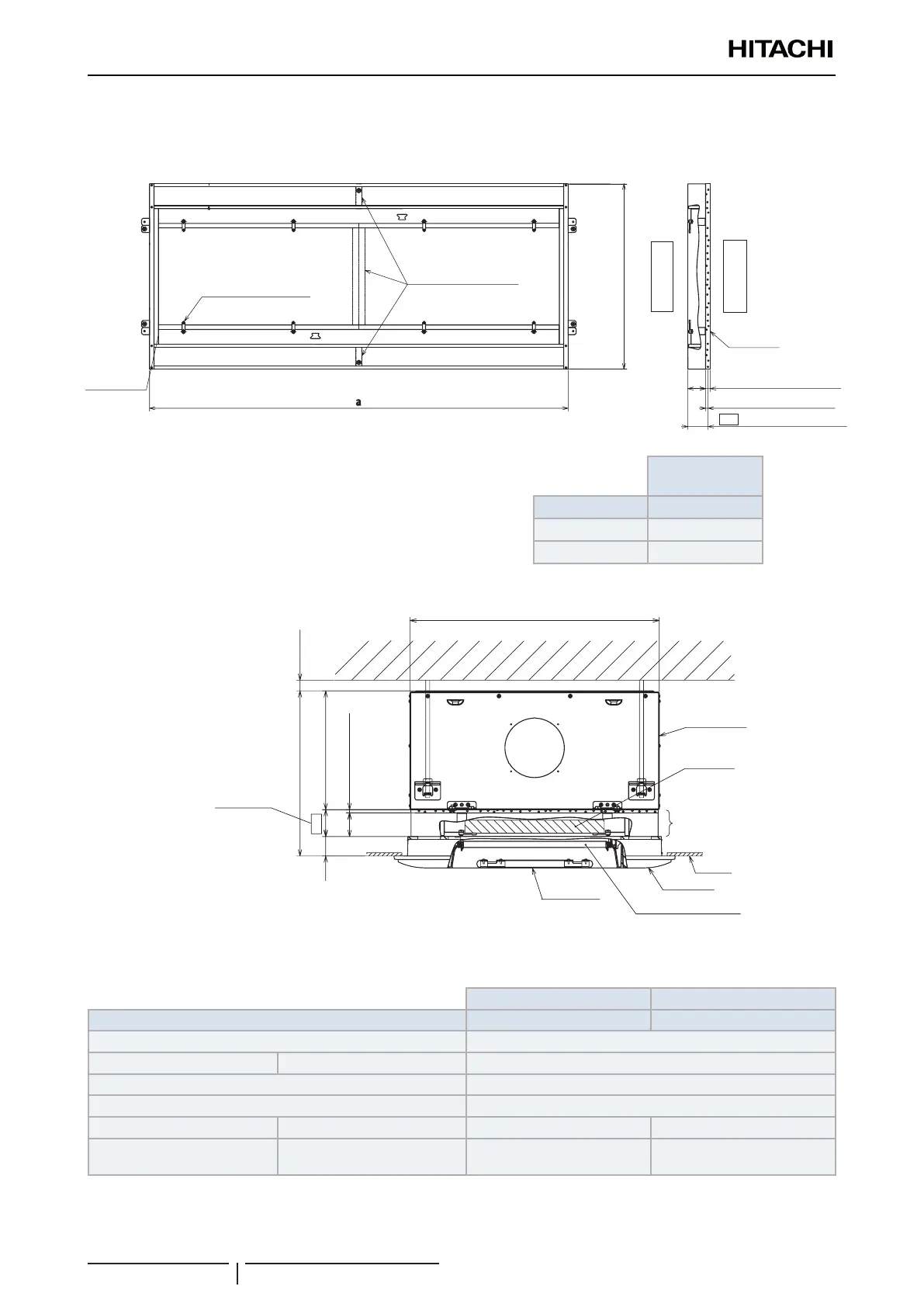

2.13.5.2 For RCD-FSN3E indoor units: BD-90H and BD-160HD
When the lter box is installed, the total height of the unit increases by approximately 68 mm. Therefore, pay attention to
the installation space.
60
624
68
Filter holder (resin)
Only for B-160
Galvanized
sheet metal
Air panel
Indoor unit
Packing
15 Before compression
8 After compression
Installation height
? NOTE
The lters are sold separately.
Dimensions
(mm)
Model a
BD-90HD 850
BD-160HD 1410
Service space
417
630
8
300
49
60
68
10
Long life lter
Air inlet
at grille
Air panel
(Attached with
optional air panel)
Ceiling
Filter box
(option)
Air lter
Indoor unit
Installation height
(After compression)
Min.
Specications
B-90HD B-160HD
Item RCD-(0.8-3.0)FSN3 RCD-(4.0-6.0)FSN3
Quantity 1
Installation height mm 68
Material Polyethylenes. Galvanized steel plate
Accessories Screw, Hook packing and Installation manual
Weight kg 5.0 7.5
Applicable air lter (Option)
Antibacterial long life lter
(Gravimetric method: 65%)
F-90MD-K1 F-160MD-K1
