3 Piping work and refrigerant charge
Refrigerant and drain hose installation
SMGB0099 rev.0 - 12/2016
110
3.5.4 RPC-(3.0-6.0)FSN3E - Ceiling type
Refrigerant pipe installation

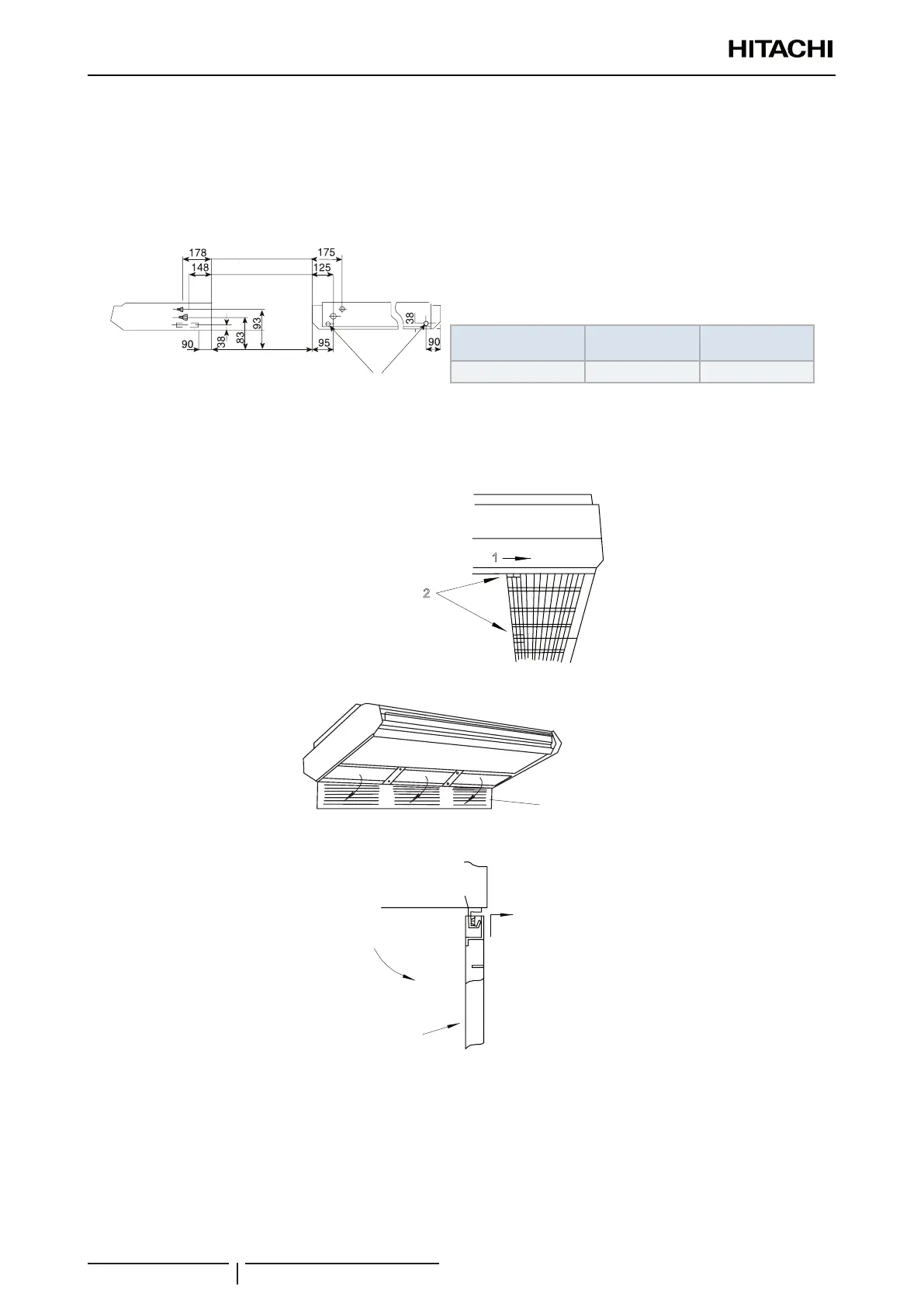

The correct position for the refrigerant pipe connection is shown below. The refrigerant piping can be connected to the
top or rear of the unit.
Each part has a die-cut hole as is indicated in chapter “2. Unit installation”.
Models
(1) Gas pipe mm
(inches)
(2) Liquid pipe
mm (inches)
RPC-(3.0–6.0)FSN3E Ø15.88 (5/8) Ø9.52 (3/8)
Liquid piping
Gas piping
Drain piping
Liquid piping
Gas piping
Drain piping
Drain piping
The piping must be installed from the bottom of the unit.
1 Remove the air inlet grille and slide the buttons on the grille backwards.
1. Slide
2. Knob
1
2
2 Open the air inlet grille
Air inlet grille
3 Push and slide the air inlet grille backwards and open it.
Rear side
Press
Unit
Unit
Open
Air inlet grille
Rear side
press
