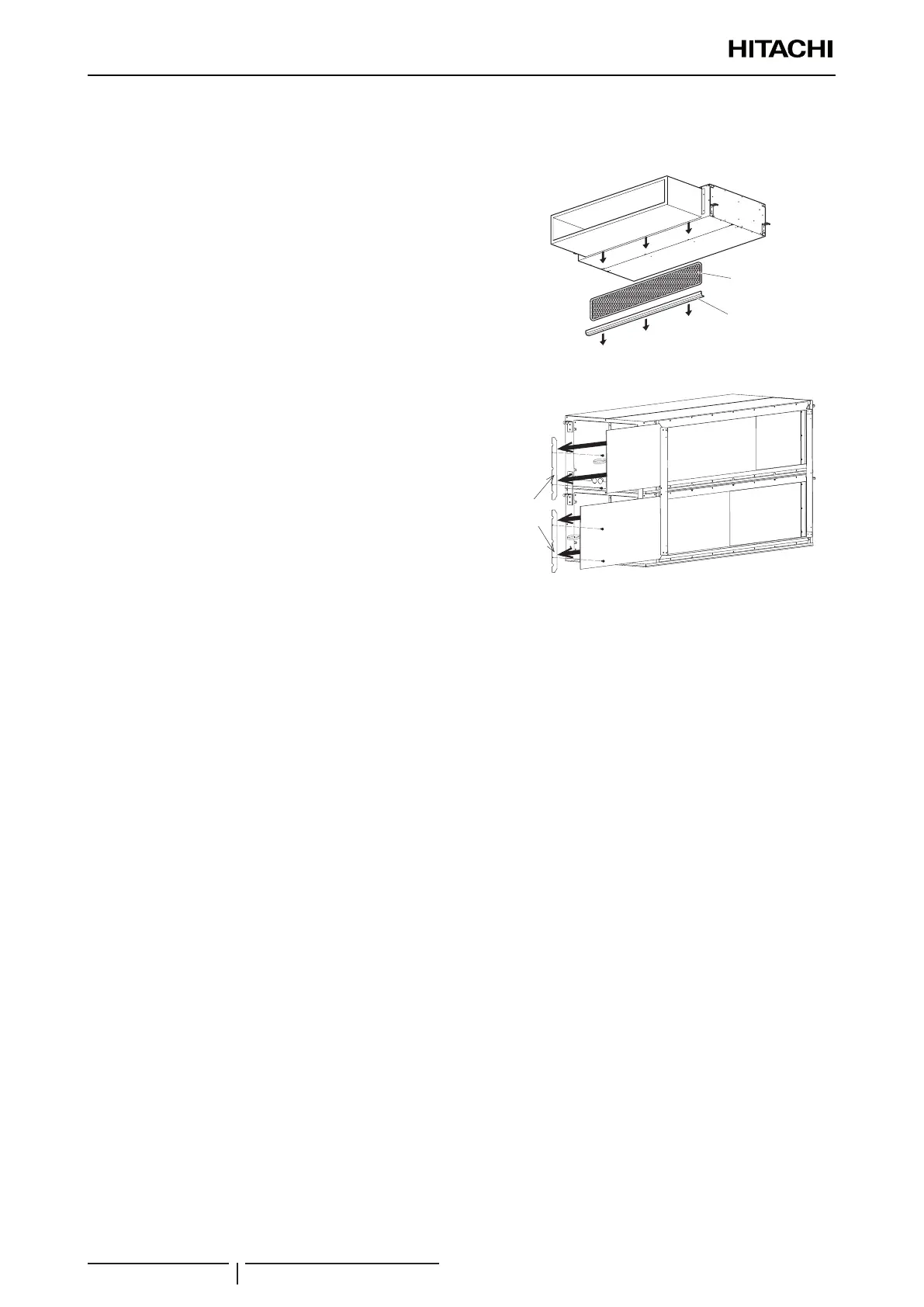

9.7.8 Removal of the air lter

For RPI-(8.0/10.0)FSN3E(-f)
Remove the four set screws from the support xture -1- of the
air lter -2- and separate both parts.
2
1

For RPI-(16.0/20.0)FSN3PE(-f)
Filter maintenance can be performed from right or left side of
the unit.
Remove lter support (x2 screws / each support) and pull
out the lter from the handle. In those installations where the
servicing space is narrow, the lter could be bent (in three
pieces) when pulling it out.
Filter
support
