9 Servicing
RPI-(8.0-20.0)FSN3(P)E(-f) - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
298

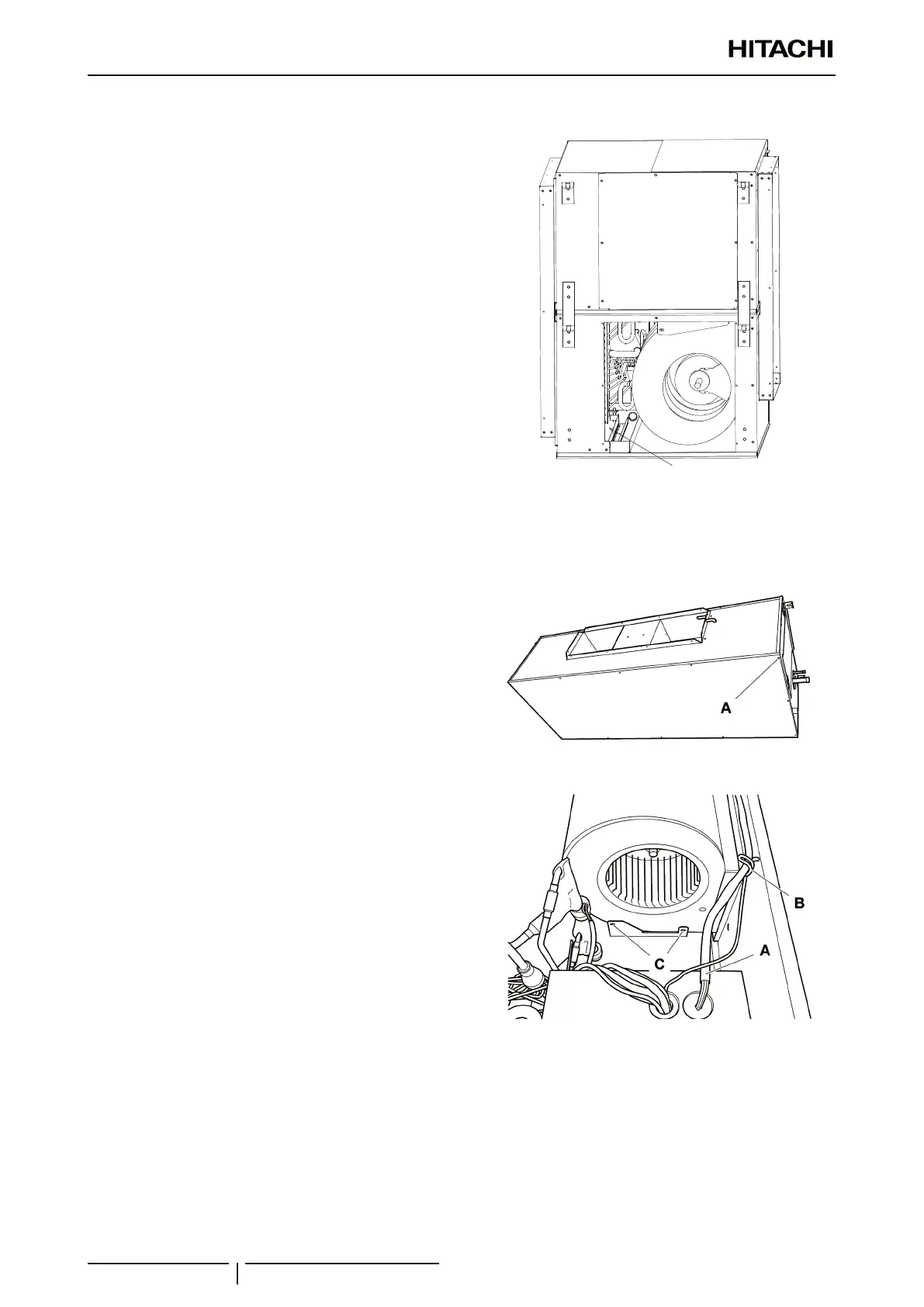

For RPI-(16.0/20.0)FSN3PE(-f)
1 The servicing of these units can be carried out either by the
fan motor side cover or by the cycle service cover. Access
to the drain pan through any of these covers and clean it in
order to guarantee a correct operation.
Drain pan
9.7.6 Fan removal
For RPI-(8.0/10.0)FSN3E(-f)
1 Remove all screws -A- from the lower cover of the unit and
separate it.
2 Remove the electrical box cover as indicated in chapter
“9.7.1 Removal of the electrical box cover”.
3 Disconnect the fan motor.
? NOTE
To disconnect and remove the fan motor, previously see the chapter
corresponding to the wiring diagrams in this Manual.
4 Remove the drain pan as indicated in chapter “9.7.5
Removal of the drain pan”.
5 Remove the wiring A- from the electrical box and release it
from the support -B-.
6 Remove the screws -C- on both sides of the fan.
! CAUTION
• Make sure the fan can be removed correctly, without the risk of
injuring anyone in the surrounding area.
• The fan is heavy. Request the assistance of two operators to hold
the fan while it is being removed.
